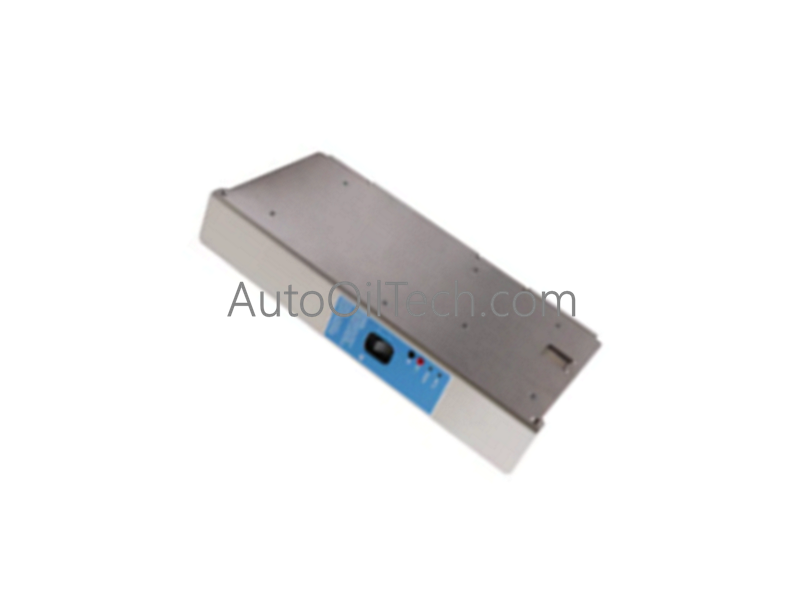

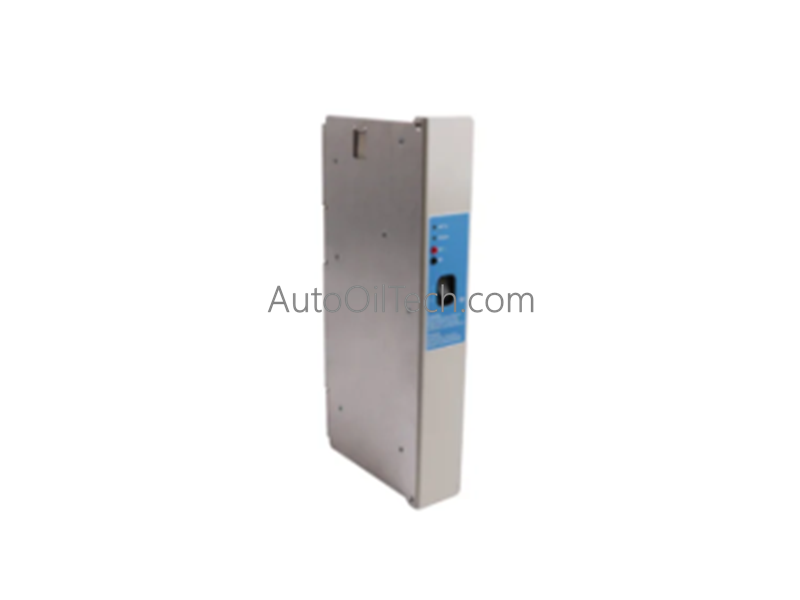

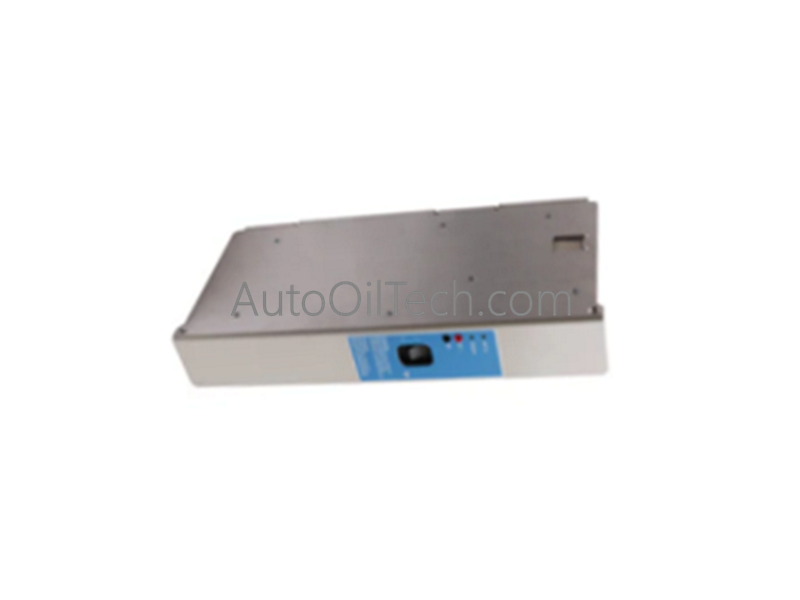

Honeywell BKM-0001 Safety Manager Series

The Honeywell BKM-0001, also cataloged as the BKM-0001 Battery and Key Switch Module, operates as a dedicated hardware component for backup power memory maintenance and physical system state override within Safety Manager platforms. The module regulates energy routing from integrated storage cells to volatile system memory rails while housing physical key switch mechanisms to alter internal administrative interlock permissions.

Hardware Specifications

Process Control and DCS Metrics

• Channel-to-Channel Isolation and Fault Containment: The hardware layout separates the external mechanical state selection paths from the internal logic components. Electrical physical architecture implements distinct galvanic isolation zones between the key switch contacts and backplane data lanes to block external electrostatic discharges or induced voltage transients from corrupting active processing loops.
• Cold Junction Compensation and Real-Time Clock Preservation: While specialized thermocouple modules handle physical cold junction compensation loops elsewhere in the system, this module supplies the continuous DC potential needed to sustain the master real-time clock registers and active calibration offsets across the shared controller backplane during primary power disruption profiles.

Frequently Asked Questions

Q: How does the BKM-0001 module signal a low battery state to the host Safety Manager system?

A: The internal monitoring circuitry continuously tests the terminal voltage of the backup battery cells under a simulated load condition. If the potential drops below the minimum specified data retention threshold, a diagnostic status bit is written to the backplane, triggering a system alarm without disrupting active safety logic execution.

Q: Can the physical key switch be manipulated without interrupting the running safety controllers?

A: Yes. The key switch mechanism alters operational modes such as Force Enable or Program Lock by modifying register states inside the controller memory. Modifying the key position changes system access privileges but does not induce backplane processor execution delays or disrupt live safe-state monitoring functions.

Field Installation Guidelines

• Chassis Layout Alignment, Clearance Constraints, and Mechanical Seating: Insert the module housing straight into its assigned slot within the Safety Manager rack enclosure. Engage the retention fasteners to lock the faceplate into the chassis framework, ensuring correct alignment with backplane connectors. Maintain a clear 50 mm convective space above and below the card cage to prevent thermal concentration near the internal backup battery block.
