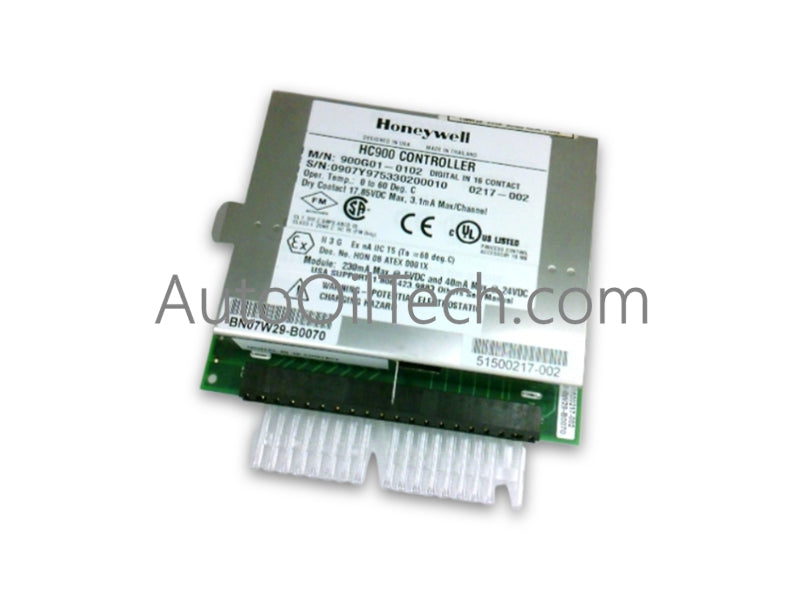

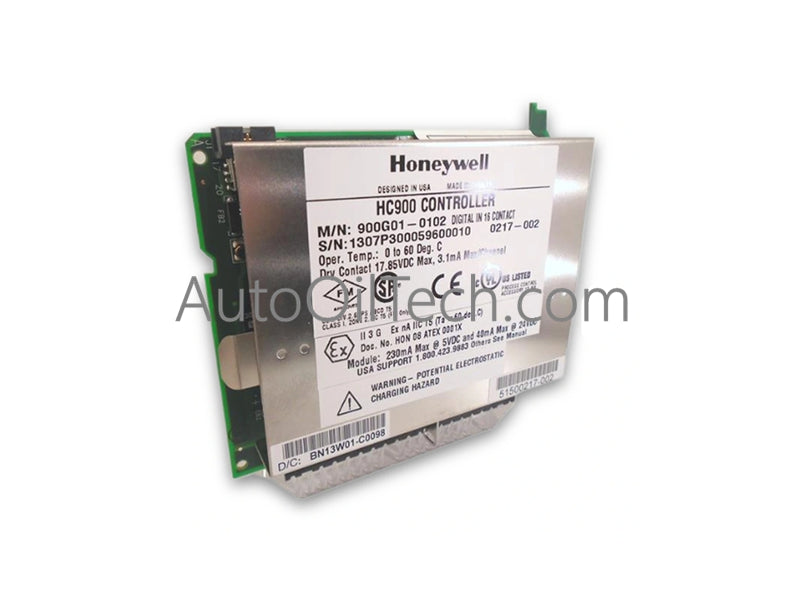

The Honeywell 900G01-0102, also cataloged as the 900G01-0102 Digital Contact Input Module, operates as a dedicated hardware component for discrete state detection within ControlEdge HC900 controller platforms. It monitors field dry contact closures across 16 channels, translating mechanical switch and relay states into digital status signals over the controller backplane bus.
Hardware Specifications
Parameter
Specification
Model
900G01-0102
Brand
Honeywell
Origin
USA
Weight
0.31 lbs (0.14 Kg)
Dimensions
Standard HC900 Module Footprint
Operating Temp
0 to 60 deg C
Power Consumption
Backplane bus powered
Channel Capacity
16 Channels
Signal Interface
Digital Contact (Dry Contact / Voltage-Free)
System Integration
ControlEdge HC900 I/O Rack
Channel Isolation and Signal Conditioning Topology
The Honeywell 900G01-0102 incorporates channel-to-channel isolation parameters and galvanic backplane protection engineered to isolate field contact circuits from sensitive CPU control logic. Built-in signal conditioning filters eliminate contact bounce chatter from field limit switches and interlocks, preventing false trigger states. The low-power sensing loop architecture ensures stable status evaluation alongside 4-20 mA HART loop protocol lines and high-density analog channels inside the cabinet enclosure.
Frequently Asked Questions
Q: Does the 900G01-0102 input card supply wetting voltage to field contacts?
A: Yes, the module provides internal current-limited wetting voltage across the dry contact terminals to reliably sense open and closed circuit states without requiring external field power supplies.
Q: Can the 900G01-0102 module be hot-swapped while the HC900 system is operating?
A: Yes, the module supports live insertion and removal under power on the HC900 rack, allowing card replacement without shutting down adjacent running I/O channels or the main processor.
Field Installation Guidelines
Align the 900G01-0102 module guide edges with the targeted slot location on the HC900 rack.
Push the card firmly into the rack connector until the top and bottom mounting latches fully click into the frame.
Verify that the main rack frame ground wire is bonded to the enclosure protective earth (PE) bus.
Route contact input field cables through cabinet wiring troughs, preserving a minimum 50 mm gap from power wiring.
Secure field conductors to the removable terminal block, ensuring shielding is tied to a single ground reference point.
