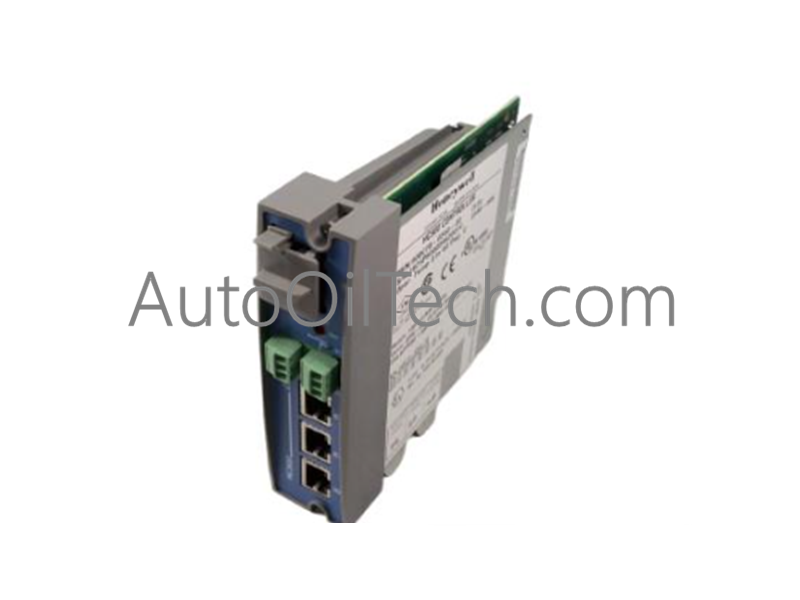

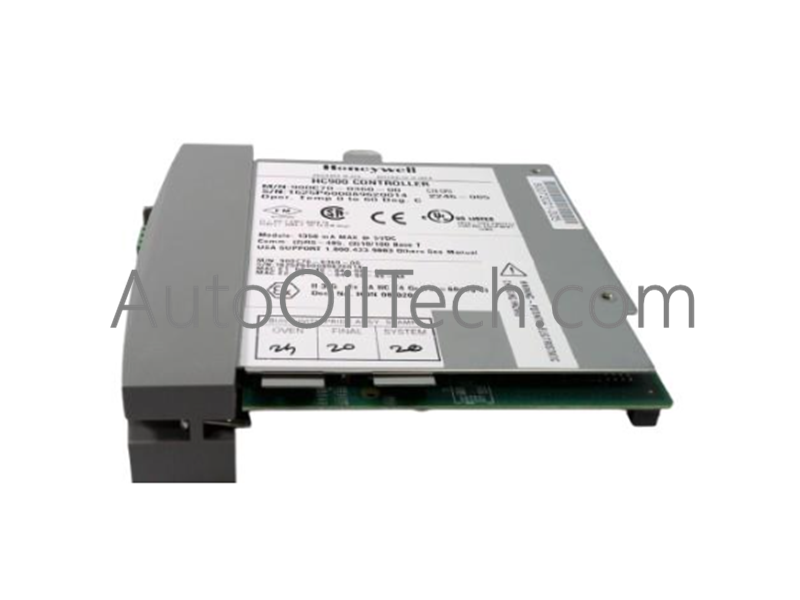

The Honeywell 900C70-0360-00, also cataloged as the 900C70 Controller Module, operates as a dedicated hardware component for industrial process control and system logic execution within Honeywell HC900 platform architectures.
Hardware Specifications
Parameter
Specification
Model
900C70-0360-00
Brand
Honeywell
Base Model
900C70
Module Type
Controller Module
Origin
USA
Weight
1.00 lbs
Dimensions
Standard Single-Slot HC900 Controller Module
Operating Temp
0 to 60 deg C
Power Consumption
5 VDC operating supply voltage
Category
PLCs/Machine Control, Industrial Computer
Cold Junction Compensation and Channel-to-Channel Isolation
The Honeywell 900C70-0360-00 executes deterministic logic loops for process automation while maintaining signal integrity across local and remote chassis. The system motherboard leverages high-density channel-to-channel isolation on associated I/O carrier cards to eliminate common-mode ground potential differences across noisy field environments. To preserve strict measurement resolution for temperature loops, the controller coordinates with analog input micro-terminals supporting onboard Cold Junction Compensation (CJC). These dynamic calibration routines adjust analog-to-digital scaling factors automatically to offset ambient enclosure temperature fluctuations, ensuring uninterrupted accuracy across 4-20 mA HART analog loops and serial communication lines.
Frequently Asked Questions
Q: What power input rating does the 900C70-0360-00 require from the backplane?
A: The module relies on a standard 5 VDC system backplane power supply for logic execution.
Q: What ambient temperature range is permissible during module operation?
A: The module is specified for continuous operation within ambient thermal limits of 0 to 60 deg C.
Q: How does the module maintain loop processing stability in electrically noisy panels?
A: The processor relies on optical and galvanic channel-to-channel isolation built into the system I/O rack bus, preventing high-voltage transients from affecting core processing logic.
Field Installation Guidelines
Power Disconnection: Fully de-energize the 5 VDC rack backplane and associated field circuits before installing or removing the controller unit.
Rack Insertion: Line up the circuit board edges with the top and bottom guide rails of the designated HC900 controller slot. Slide the unit steadily into place until the rear backplane connectors fully seat.
Shield Grounding: Connect all incoming field communication and sensor cable shields to a dedicated, single-point ground bar to prevent noise pickup.
Thermal Management: Maintain clear airflow above and below the rack mounting frame to facilitate convection cooling across the 0 to 60 deg C operating envelope.
