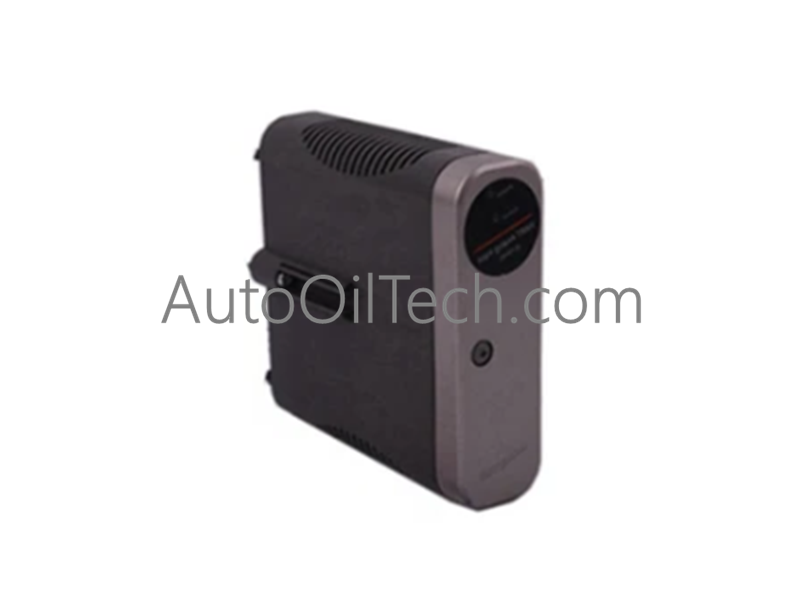

Honeywell 8U-PAIH54 High-Level Analog Input Module

Configured for high-level signal conversion in Honeywell Series 8 I/O Terminal Assembly (IOTA) systems, the Honeywell 8U-PAIH54 (8U-PAIH54 High-Level Analog Input Module) provides direct physical/electrical execution. The hardware acquires variable analog process inputs, processing differential and single-ended signals across 0-10 V and 4-20 mA measurement ranges. High-resolution 16-bit analog-to-digital converters translate field instrumentation variables into continuous digital data streams for controller processing across extended operating temperature environments.

Hardware Specifications

4-20 mA HART Loop Protocol & Channel-to-Channel Isolation

The 8U-PAIH54 incorporates multi-channel analog signal acquisition hardware supporting 4-20 mA HART loop protocol configurations and standard 0-10 V voltage range inputs. Integrated channel-to-channel isolation circuits suppress noise propagation and shield internal processing nodes from ground potential differences across field wiring points. Onboard cold junction compensation (CJC) algorithms maintain high-accuracy 16-bit signal conversion within +/-0.1% of full scale across wide ambient temperature variations.

Frequently Asked Questions

Q: Can the 8U-PAIH54 accept both differential and single-ended input wiring?

A: Yes, the module supports software and termination configuration for both differential and single-ended field signal connections.

Q: What operating voltage is required to power the internal circuitry of the 8U-PAIH54?

A: The module operates from a nominal 24 VDC system power supply bus delivered through the IOTA carrier board.

Q: What mechanisms protect the 8U-PAIH54 module from field-side ground loops and voltage transients?

A: Internal electrical isolation stages decouple field input terminal connections from backplane logic, preventing transient surge propagation and ground potential loops.

Field Installation Guidelines

1. Verify that the IOTA baseplate grounding lug is securely bonded to cabinet Earth ground using a dedicated copper wire (minimum 4 mm2 / 10 AWG).
2. Isolate all 24 VDC power feeds before inserting the 8U-PAIH54 module into its assigned IOTA mounting socket.
3. Cable analog input runs using shielded twisted-pair wire, maintaining a 300 mm minimum clearance from high-voltage AC cables and switching equipment.
4. Terminate overall signal shields at the single designated enclosure grounding rail to eliminate circulating ground loop currents.
5. Press the module firmly onto the IOTA socket until the side retention clips lock completely to maintain gas-tight terminal contact.
