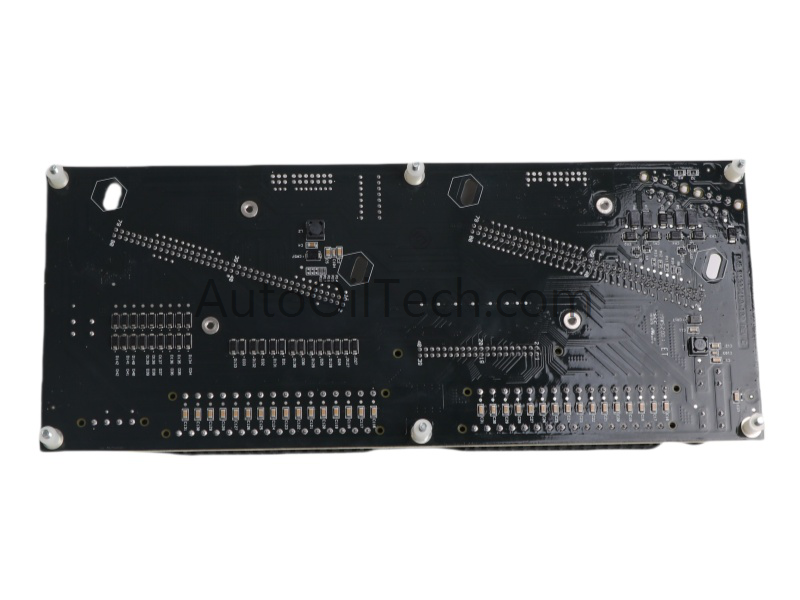

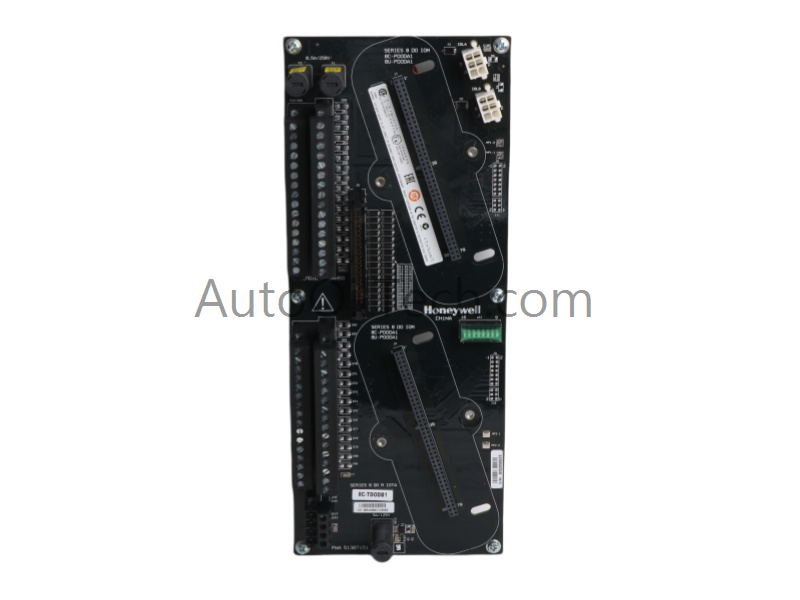

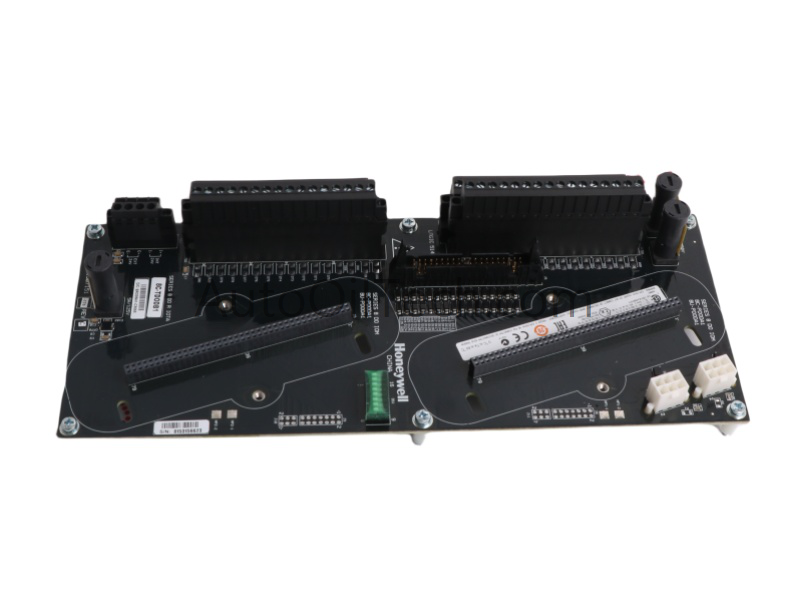

The 8C-TDODB1 51307151-175 from Honeywell’s Series 8 is a high-speed, 32-channel digital output module engineered for demanding industrial automation. It supports PROFINET communication and delivers precise switching control with built-in diagnostics.
Technical Specifications
Parameter
Value
Manufacturer
Honeywell
Model Number
8C-TDODB1 51307151-175
Module Type
Digital Output Module
Product Series
Series 8
System Compatibility
DCS
Dimensions (cm)
29.4 × 12 × 6.3
Weight
0.42 kg
Communication
Ethernet Router, PROFINET
Output Voltage
24V DC
Output Current
0.5A per channel
Channel Count
32
Switching Speed
1ms
Isolation
500V galvanic
Protection Rating
IP20
Operating Temp Range
-25°C to +60°C
Diagnostics
Load monitoring, open-wire, overload
Mounting
DIN-rail (45mm × 120mm × 115mm)
Terminal Type
Removable blocks
Standards Compliance
IEC 61131-2, UL 508
MTBF
500,000 hours
Origin
USA
HS Code
8537101190
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Features
32-channel output with 24V DC and 0.5A per channel capacity.
