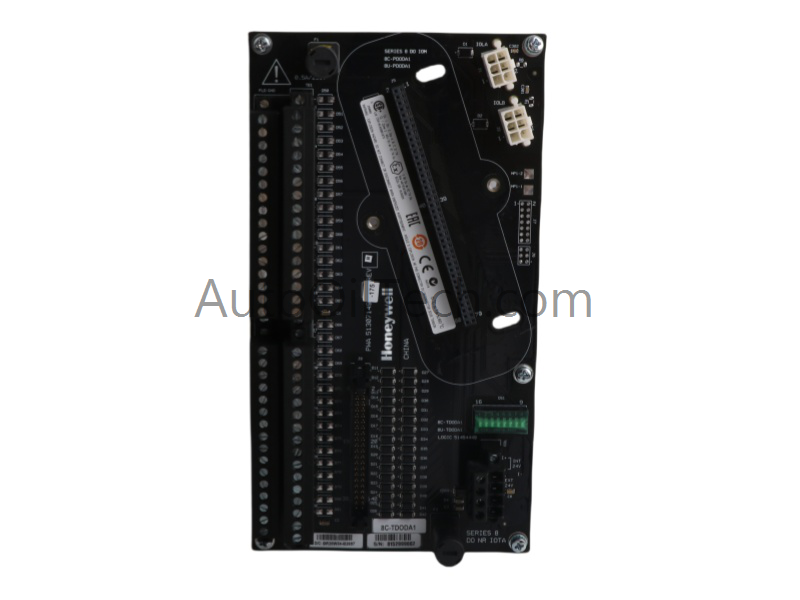

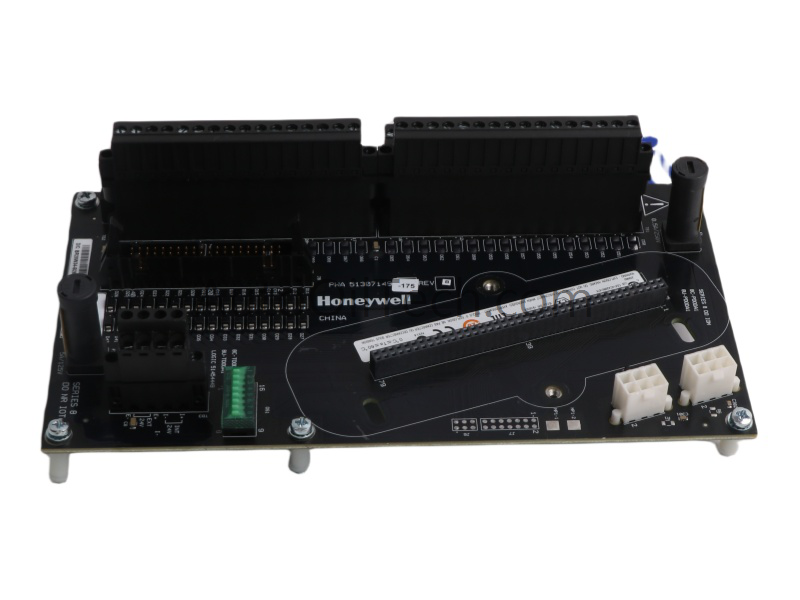

The 8C-TDODA1 51307149-175 from Honeywell’s Series 8 is a high-density 32-channel digital output module built for precision control in industrial automation. With native PROFINET support and advanced diagnostics, it delivers fast, reliable switching and predictive maintenance capabilities for mission-critical applications.
Technical Specifications
Parameter
Value
Manufacturer
Honeywell
Model Number
8C-TDODA1 51307149-175
Module Type
Digital Output Module
Product Series
Series 8
System Compatibility
DCS
Output Channels
32
Output Voltage
24V DC
Output Current
0.5A per channel
Switching Speed
1 ms
Isolation
500V galvanic
Operating Temp Range
-25°C to +60°C
Diagnostics
LED indicators, short-circuit, load monitoring
Communication
PROFINET, Ethernet Router
Mounting
DIN-rail (45×120×115mm)
Terminal Blocks
Removable
Vibration Resistance
Up to 5G (IEC 60068-2-6)
Protection Rating
IP20
Standards Compliance
IEC 61131-2, UL 508
MTBF
500,000 hours
Dimensions (cm)
22 × 12 × 6.5
Weight
0.36 kg
Origin
USA
HS Code
8537101190
Condition
Brand New
Lead Time
In Stock
MOQ
1
Lifecycle Status
Active
Key Features
32-channel high-speed output with 1ms switching for real-time control.
PROFINET integration enables synchronized communication with PLCs and automation networks.
Advanced diagnostics: per-channel LED status, short-circuit protection, and load monitoring.
Hot-swappable design reduces downtime during maintenance.
Compact DIN-rail form factor with removable terminals for easy installation.
Industrial-grade durability with IP20 protection and 5G vibration resistance.
Energy-efficient design minimizes heat generation for 24/7 operation.
