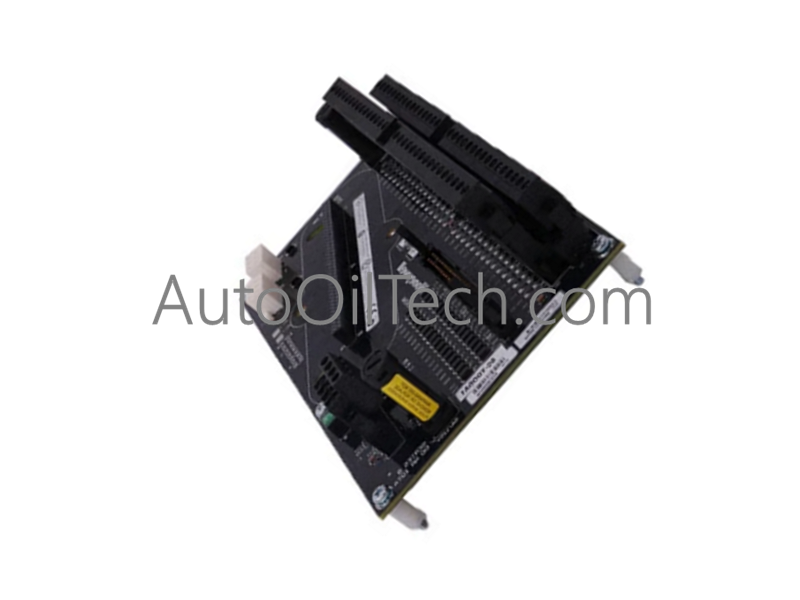

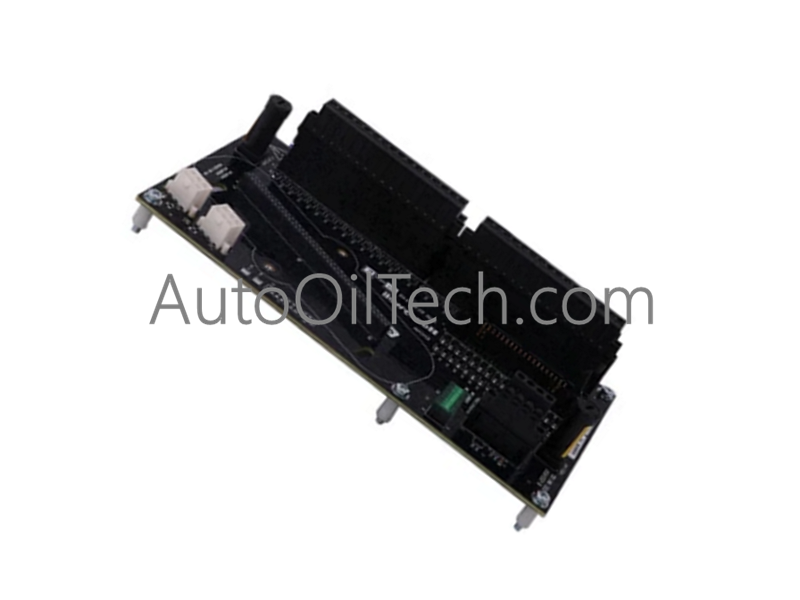

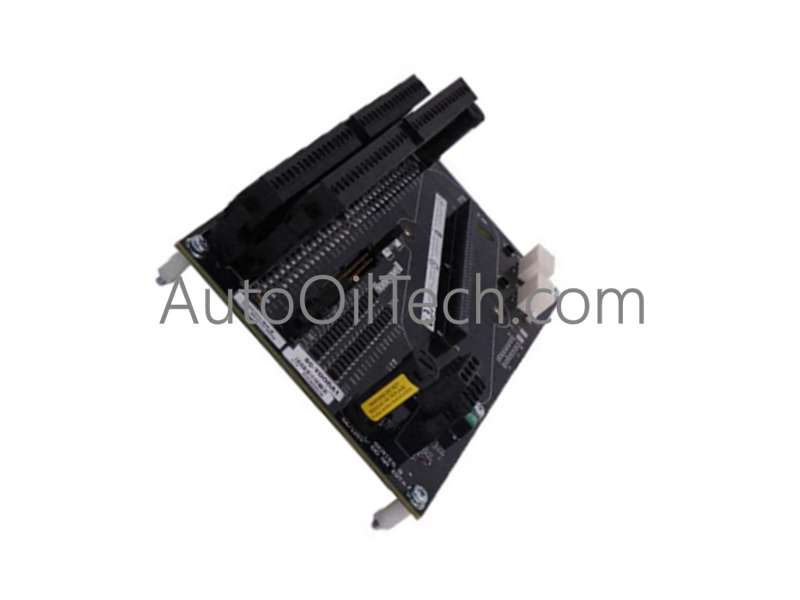

Honeywell 8C-TDILA1 Digital Input I/O Termination Assembly

The Honeywell 8C-TDILA1, also cataloged as the 8C-TDILA1 Digital Input I/O Termination Assembly, operates as a dedicated hardware component for discrete field signal termination and backplane interface routing within Honeywell Series 8 platform environments. The assembly provides physical wiring landing points for binary field contact inputs, passing discrete voltage transitions directly to paired digital processing modules. Integrated optical isolation elements shield core backplane logic nodes from field-induced electrical transients, common-mode noise, and voltage surge events across field sensing loops.

Hardware Specifications

Channel-to-Channel Isolation & Signal Conditioning

The 8C-TDILA1 incorporates high-density optical coupling stages across its termination block interface to isolate incoming binary field signals from internal backplane communication lines. Integrated passive signal conditioning elements filter contact bounce chatter, high-frequency electromagnetic interference (EMI), and voltage spikes before state data reaches the central process controller. Channel isolation barriers prevent common-mode voltage differences between field ground points and the system ground reference, preserving deterministic signal integrity under harsh industrial processing conditions.

Frequently Asked Questions

Q: What is the primary operational function of the 8C-TDILA1 termination assembly?

A: The 8C-TDILA1 serves as the physical landing assembly (IOTA) for field discrete input wiring, conditioning 24 VDC digital signals and routing them securely to the associated Series 8 I/O processing module.

Q: How does the 8C-TDILA1 assembly mitigate field wiring noise and ground potential differences?

A: Dedicated optical isolation barriers integrated into the termination network decouple field terminal lines from internal logic circuits, suppressing noise injection and circulating ground currents.

Q: Are field power connections isolated from the core backplane system bus?

A: Yes, the assembly maintains system-to-field electrical isolation, ensuring field-side overvoltage spikes do not damage backplane bus electronics.

Field Installation Guidelines

1. Connect the Series 8 carrier chassis mounting rail to the main cabinet Earth ground bus using a low-impedance copper cable (minimum 4 mm2 / 10 AWG).
2. Isolate all external 24 VDC power supplies feeding the termination assembly before attaching field wiring or seating the paired digital input module.
3. Cable discrete input lines using shielded twisted-pair conductors, maintaining at least 300 mm separation from AC power conduits and variable frequency drive (VFD) leads.
4. Terminate signal cable shields at a single point on the enclosure Earth grounding rail to prevent circulating ground loop paths.
5. Torque all terminal block screw terminals to 0.5 to 0.6 Nm to ensure gas-tight connection points and prevent thermal loosening under industrial vibration.
