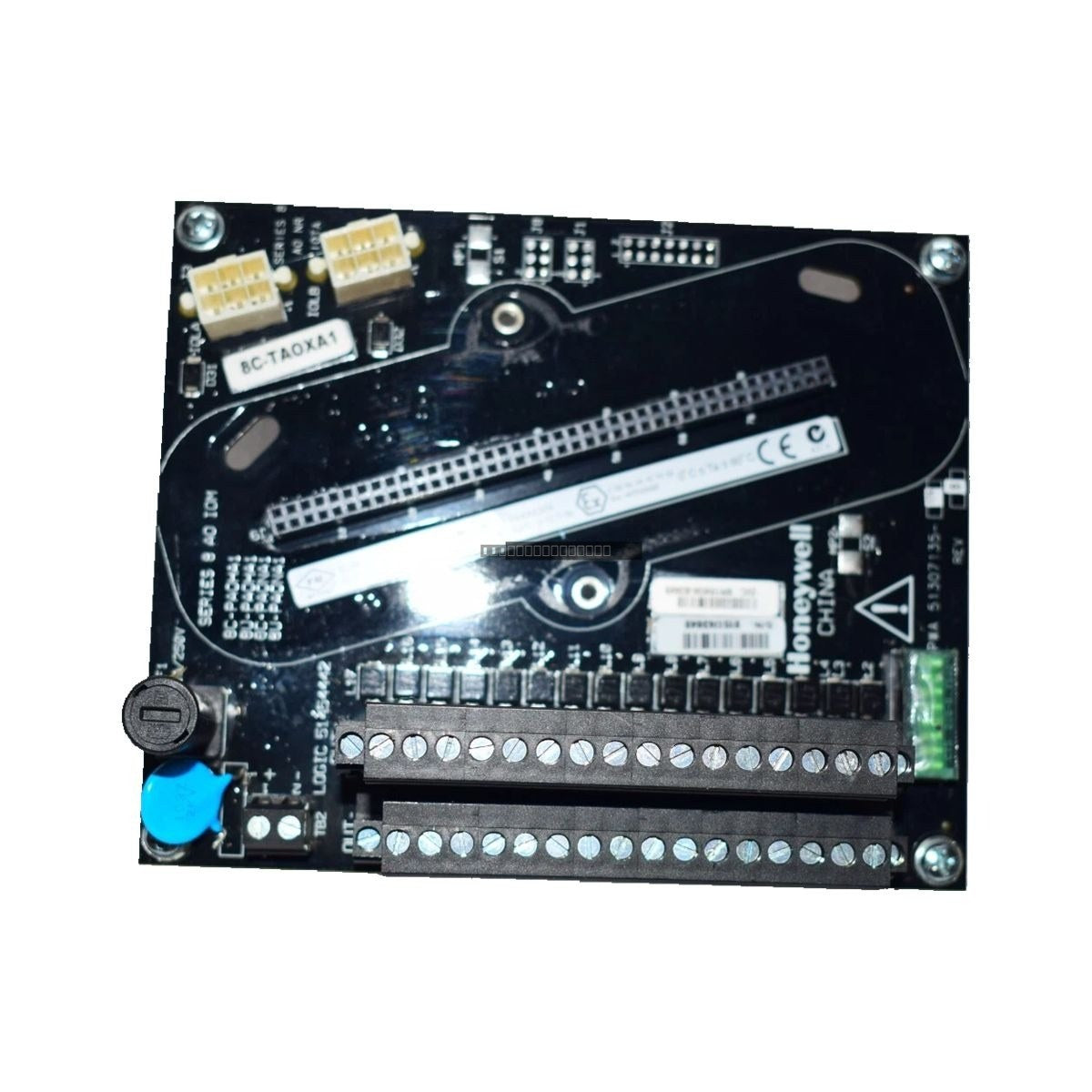

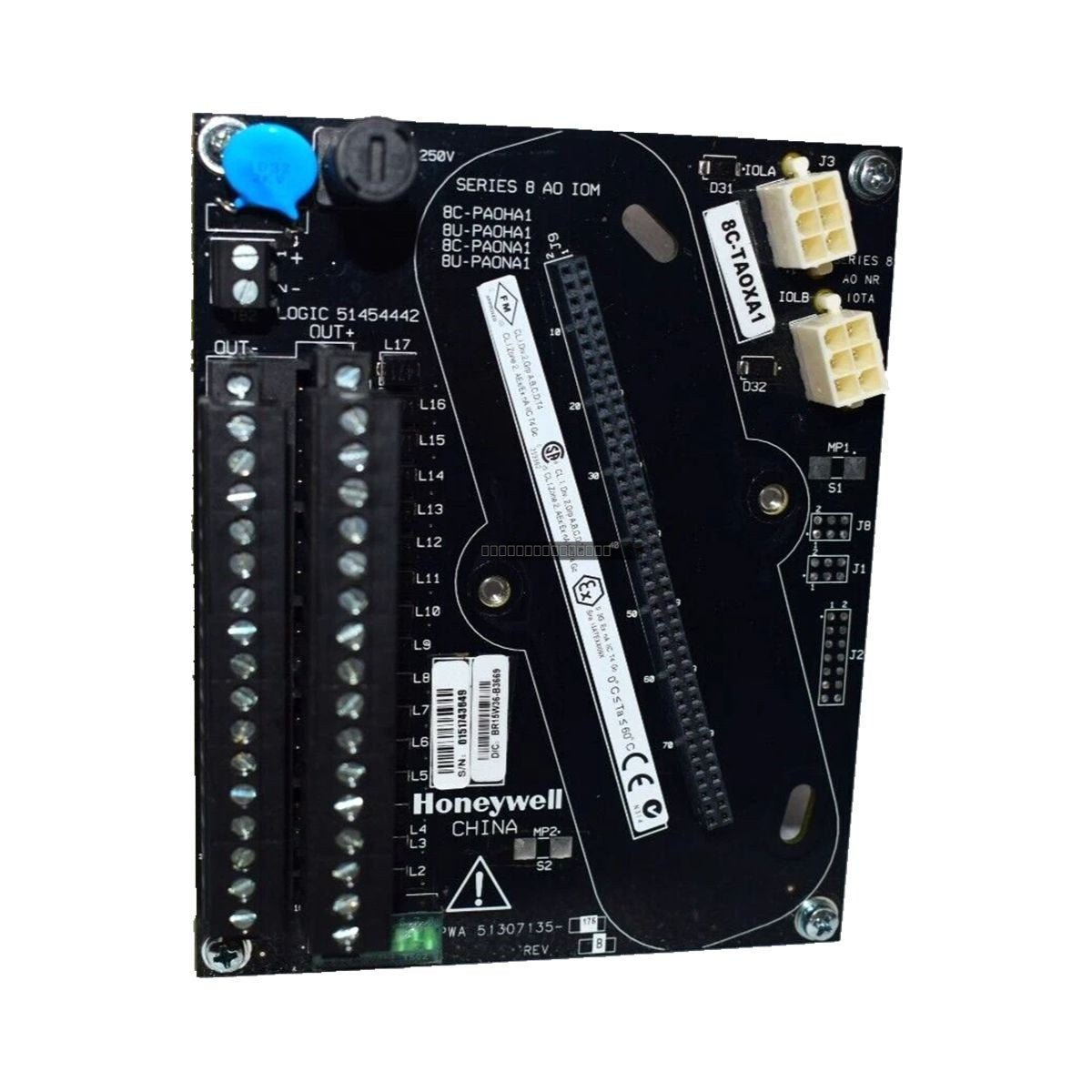

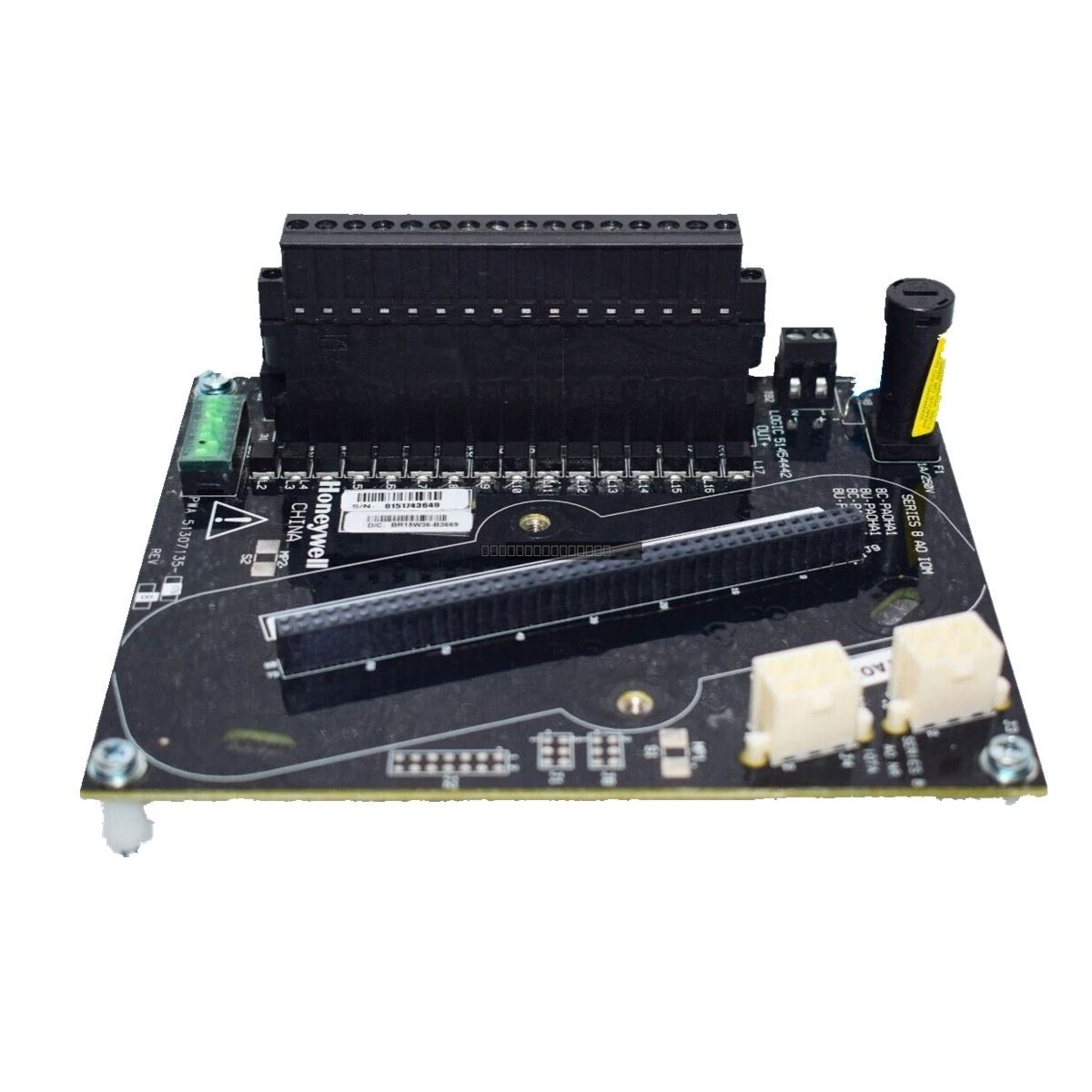

The Honeywell 8C-TAOXB1 (51307137-175) is a high-performance Analog Output module designed for the Experion LX distributed control system. This module provides 16 channels of analog output, engineered to deliver precise control signals for industrial field devices. It features extensive self-diagnostics to ensure system integrity and supports optional redundancy configurations to maintain high availability in critical process control environments.
Features
16 isolated analog output channels for versatile process control.
Extensive onboard self-diagnostics for proactive fault detection.
Supports redundant module operation for enhanced system reliability.
Compact Series 8 form factor designed for efficient cabinet space utilization.
Wide load resistance range (50 to 800 Ohms) to accommodate various field instruments.
Technical Specifications
Product Model
8C-TAOXB1 / 51307137-175
Output Channels
16
Output Current Range
2.9 mA to 21.1 mA
Resolution
+/- 0.05% of Full Scale
Load Resistance
50 to 800 Ohms
Voltage Rating
24 VDC
Module Current Rating
190 mA
Max Open Circuit Voltage
22 V
Operating Temperature
0 to 60 degC
Storage Temperature
-40 to 85 degC
Installation Guidelines
Ensure the control system is powered down before inserting or removing the module from the I/O carrier.
Verify that the module is securely seated in the designated slot to ensure proper backplane connectivity.
Maintain proper grounding practices for shielded cables to minimize electromagnetic interference (EMI).
Ensure adequate ventilation within the cabinet to comply with the 60 degC maximum operating temperature rating.
Handle with care to prevent electrostatic discharge (ESD) damage to sensitive electronic components.
FAQ
Does this module support redundancy? Yes, the 8C-TAOXB1 is designed to support optional redundancy, allowing for seamless failover in critical applications.
What is the primary application for this module? This module is specifically engineered for the Honeywell Experion LX system, providing reliable analog signal outputs for actuators, valves, and other control elements.
What is the resolution of the output? The module offers a resolution of +/- 0.05% of the full-scale range.
