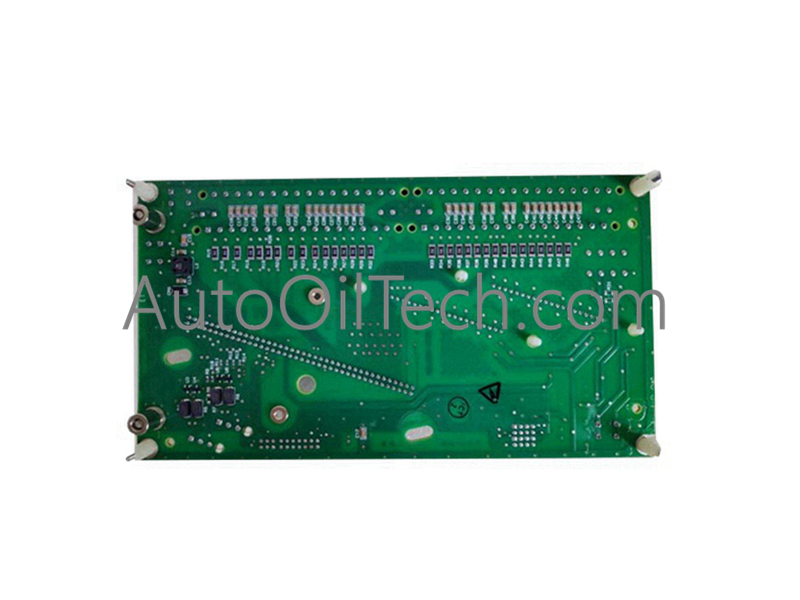

The Honeywell 8C-TAOX61 is part of the Experion Series 8 I/O system. It converts digital control signals into analog outputs for actuators such as control valves, variable frequency drives, and other process equipment. Built for reliability, it ensures accurate signal transmission and seamless integration into Honeywell’s distributed control systems (DCS).
Key Features
Model:8C-TAOX61
Order Code:51306981-175
Channels: 16 analog output channels
Output Type: 4–20 mA current signal (standard); optional 0–10 V voltage output with configuration
Resolution: 16-bit conversion for high precision
Accuracy: ±0.1% of full scale
Isolation: Up to 500 VDC channel-to-channel
Hot-Swap: Supported (removal/insertion under power)
Load Resistance: ≤500 Ω per channel
Power Supply: 24 VDC ±10%
Power Consumption: ≤15 W
Update Rate: ~250 ms typical
Environmental Range: –40 °C to +70 °C operating temperature
Protection: IP20, resistant to vibration and EMC interference (IEC 61000-4 compliant)
Dimensions: Approx. 86 × 100 × 90 mm
Weight: 0.56 kg
Application Scenarios
Control of actuators such as valves, dampers, and drives
Signal output to recording and indicating devices
Integration into Experion PKS C-Series and Series 8 I/O racks
Industrial environments requiring high accuracy and redundancy
FAQ
Q: How many outputs does the 8C-TAOX61 provide?A: 16 analog output channels.
Q: What signal types are supported?A: Standard 4–20 mA current outputs; optional 0–10 V voltage outputs with configuration.
Q: Can the module be replaced under power?A: Yes, hot-swap capability is supported.
Q: What is the accuracy level?A: ±0.1% of full scale with 16-bit resolution.
