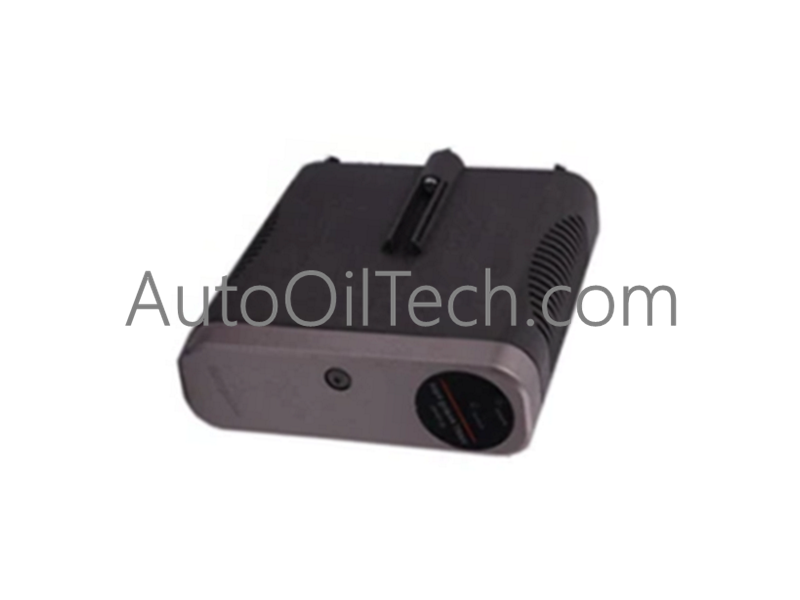

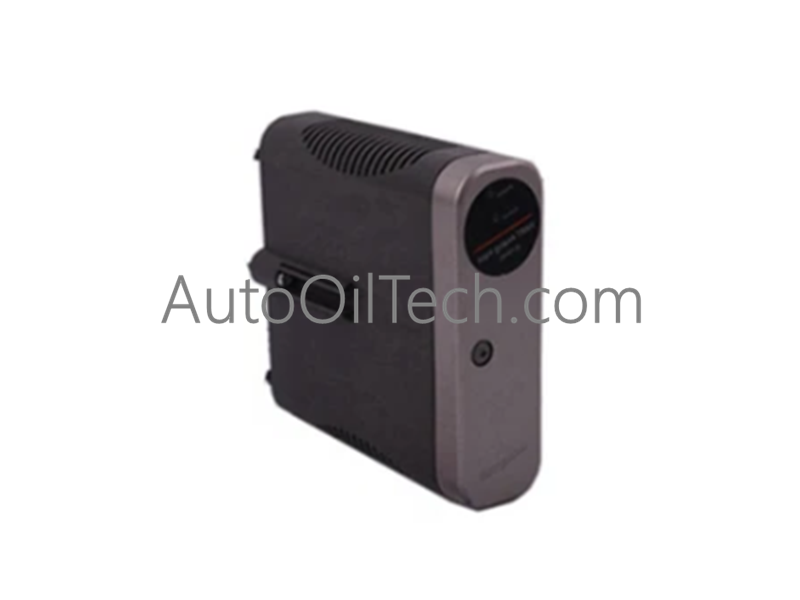

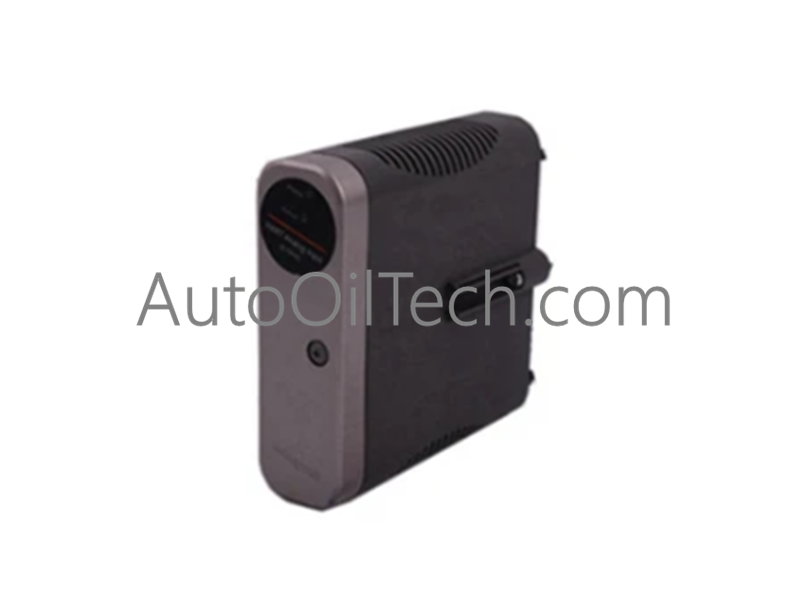

Honeywell 8C-PAINAI Analog Input Module

Configured for precise multi-signal acquisition in Honeywell C-Series DCS and SIS architectures, the Honeywell 8C-PAINAI (8C-PAINAI Analog Input Module) provides direct physical/electrical execution.

Hardware Specifications

Cold Junction Compensation and Channel-to-Channel Isolation

The Honeywell 8C-PAINAI converts multi-type analog field inputs into high-resolution 16-bit digital variables for real-time process monitoring. Featuring dedicated channel-to-channel isolation across all 8 inputs, the module eliminates ground loop potentials and suppresses common-mode noise interference in industrial environments. Thermocouple inputs (J, K, T, E types) rely on integrated Cold Junction Compensation (CJC) processing to correct for ambient thermal variations across an operating temperature range of -20 to +70 deg C. High-speed sampling circuits achieve response times under 10 ms, ensuring stable signal conversion across 0 to 10 V, 0 to 20 mA, and 4-20 mA HART loop protocol device networks.

Frequently Asked Questions

Q: What signal input types can be wired directly to the 8C-PAINAI module?

A: The module directly accepts 0 to 10 V voltage signals, 0 to 20 mA current loops, and J, K, T, and E type thermocouples across its 8 input channels.

Q: What level of electrical isolation does the 8C-PAINAI provide between channels?

A: The module features complete channel-to-channel isolation to prevent ground loops and protect internal processing logic from noise interference.

Q: What is the processing update speed of this analog input card?

A: The unit operates with a response time of less than 10 ms for rapid process logic updates.

Field Installation Guidelines

1. System De-energization: Ensure the 24 VDC power supply and all field sensor lines are completely de-energized before mounting or wiring the module.
2. Module Mounting: Align the unit with the designated slots on the C-Series carrier chassis. Slide the module into place until the rear connectors mate securely with the backplane.
3. Wiring & Shielding: Terminate field input conductors at the terminal assembly. Connect overall cable shields to a single-point earth ground rail to optimize noise suppression and surge protection.
4. Thermal Management: Maintain sufficient vertical clearance around the module array to support natural airflow within the -20 to +70 deg C operating envelope.
