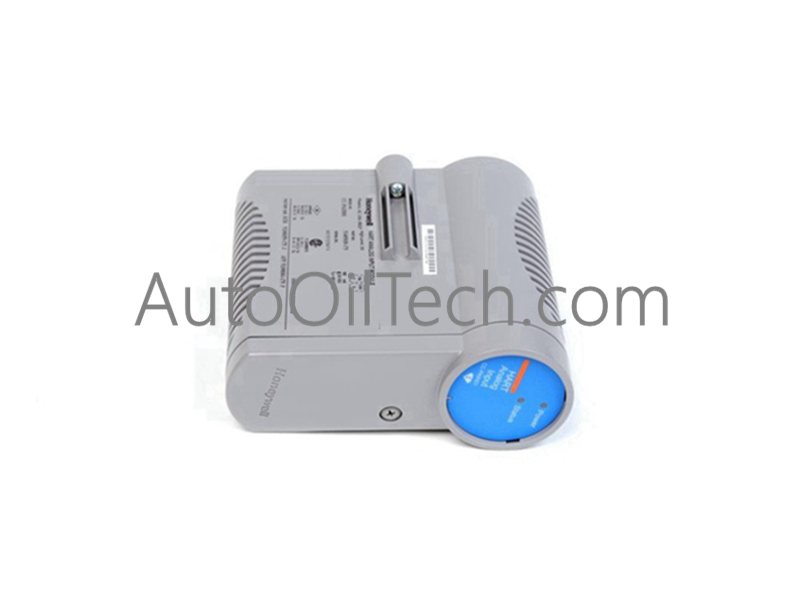

HONEYWELL 8C-IP0101 Pulse Input Module

The Honeywell 8C-IP0101, also cataloged as the 8C-IP0101 Pulse Input Module, operates as a dedicated hardware component for high-accuracy measurement of frequency and pulse signals within Honeywell control platforms.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

The Honeywell 8C-IP0101 processes high-speed discrete signal streams for precise flow totalization, turbine speed monitoring, and frequency acquisition. Featuring 500 VDC channel-to-channel isolation across all 8 input channels, the module eliminates ground potential loops and suppresses common-mode electrical noise in high-density industrial control enclosures. Internal 32-bit counter registers evaluate incoming pulse widths down to a 5 us minimum threshold across a frequency range of 0.1 Hz to 100 kHz. Operating in control racks alongside 4-20 mA HART loop protocol instruments, the isolated pulse acquisition circuitry prevents cross-talk and preserves continuous logic execution across an extended operating thermal range of -40 to 70 deg C.

Frequently Asked Questions

Q: What input signal frequency range is supported by the 8C-IP0101 pulse module?

A: The module acquires configurable pulse and frequency signals spanning from 0.1 Hz up to 100 kHz with a 32-bit counter resolution.

Q: What level of electrical isolation is provided between individual channels?

A: The module incorporates 500 VDC channel-to-channel isolation to protect system backplane logic from ground loops and field transient noise.

Q: What are the input voltage parameters for incoming field pulse signals?

A: The 8C-IP0101 accepts field pulse input levels from 5 VDC to 24 VDC, with a minimum detectable pulse width of 5 us.

Field Installation Guidelines

1. Power Disconnection: Fully de-energize the 24 VDC main power supply and external pulse signal wiring before installing or servicing the module.
2. Module Mounting: Align the circuit board edges with the card guide rails of the Honeywell I/O carrier rack. Slide the unit in until the rear backplane connectors lock firmly into place.
3. Cable Routing & Shielding: Route high-speed pulse and frequency input cables in separate, dedicated wire ducts away from heavy AC power wiring. Connect cable shields to a single-point system earth ground.
4. Thermal and Environmental Constraints: Maintain adequate airflow within the enclosure to ensure ambient operating conditions remain within -40 to 70 deg C and 5% to 95% non-condensing relative humidity.
