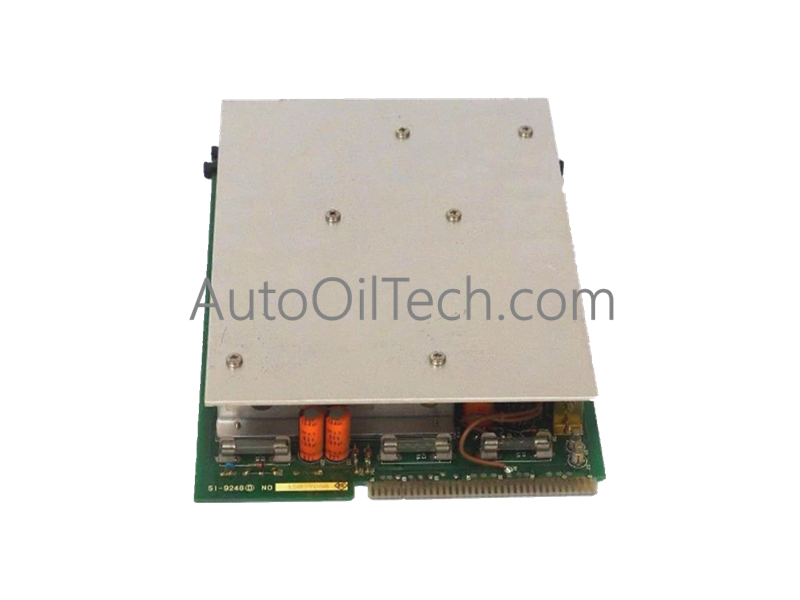

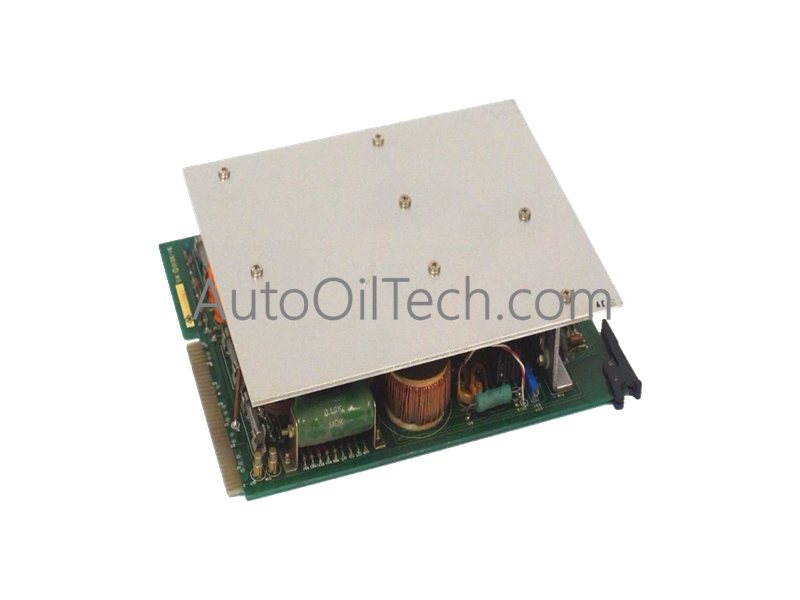

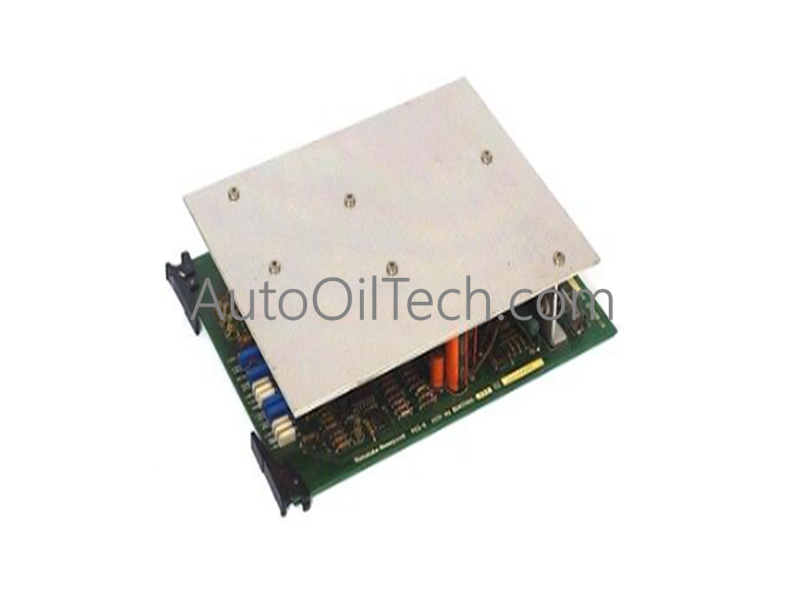

The Honeywell 82407468-002, also cataloged as the 82407468-002 Voltage Regulator Board, operates as a dedicated hardware component for precise voltage regulation and stabilization within MC Point Card File PF-200 systems.
Channel-to-Channel Isolation and 4-20 mA HART Loop Protocol
The Honeywell 82407468-002 converts 24 VDC input power into stable +5 VDC and +15 VDC power rails to drive backplane sub-assemblies and analog input circuitry. Integrated power conditioning modules deliver up to 5 A output current, preventing voltage fluctuations from degrading downstream sensor acquisition loops. Channel-to-channel isolation networks decouple power delivery paths, suppressing line transients and ground loops across connected 4-20 mA HART loop protocol instruments. Diagnostic coverage is provided via physical test points TP1 through TP6, onboard protection fuses F1, F2, and F3, and status indicators LD1 and LD2 for direct voltage validation.
Frequently Asked Questions
Q: What power output rails are supplied by the 82407468-002 regulator board?
A: The board receives a 24 VDC input and regulates +5 VDC and +15 VDC output rails to the backplane.
Q: Which onboard indicators confirm normal power status on the module?
A: LED LD1 signals +24 VDC input presence, while LD2 illuminates when all output regulated voltages are present.
Q: What are the physical replacement fuse specifications for this assembly?
A: Onboard protection includes fuse F1 rated at 5 A, F2 rated at 2 A, and F3 rated at 5 A.
Field Installation Guidelines
Power Disconnection: Fully de-energize the main 24 VDC input power supply prior to inserting or removing the board assembly from the chassis.
Mechanical Alignment: Slide the board edges along the internal card guide tracks of the MC Point Card File PF-200 enclosure until the card fully engages the backplane connectors.
Grounding Integrity: Ensure cabinet power frame chassis ground terminals are securely bonded to prevent voltage reference offsets at onboard test points.
Thermal Spacing: Maintain proper vertical clearance within the rack structure to ensure convective air dissipation across board components under maximum 5 A load conditions.
