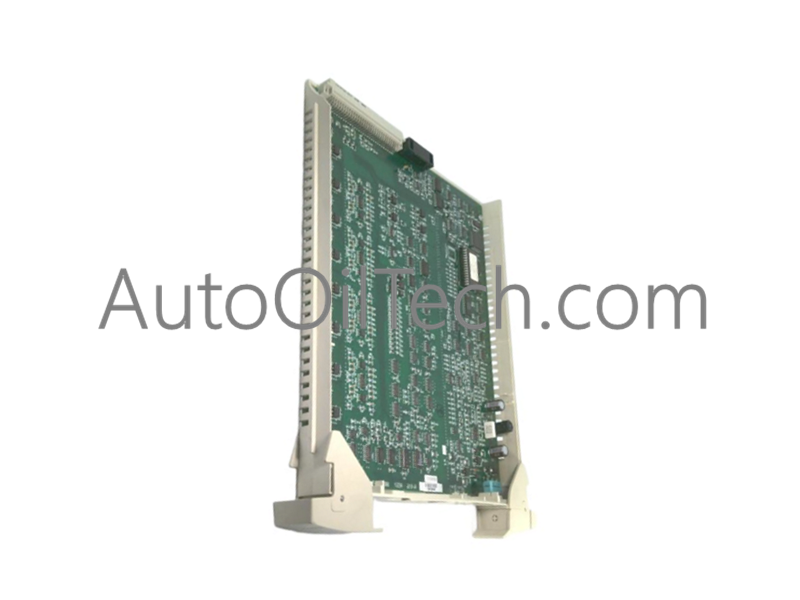

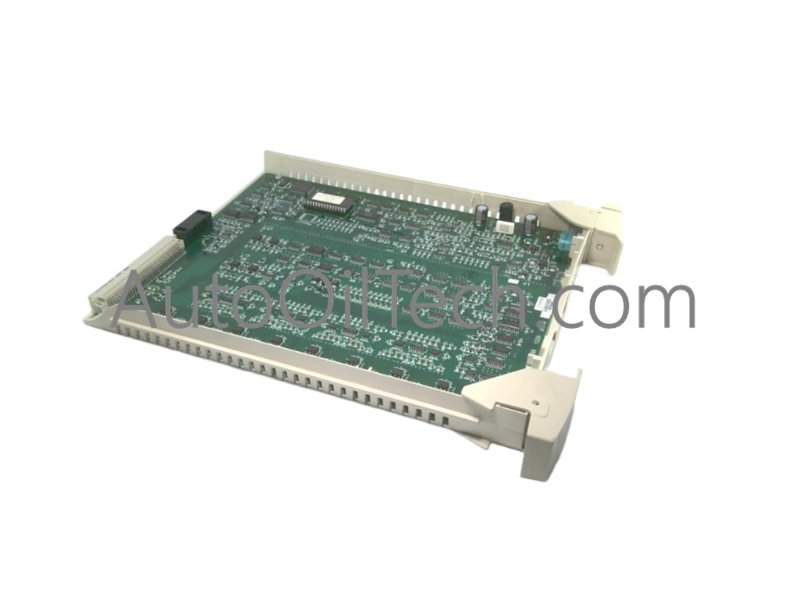

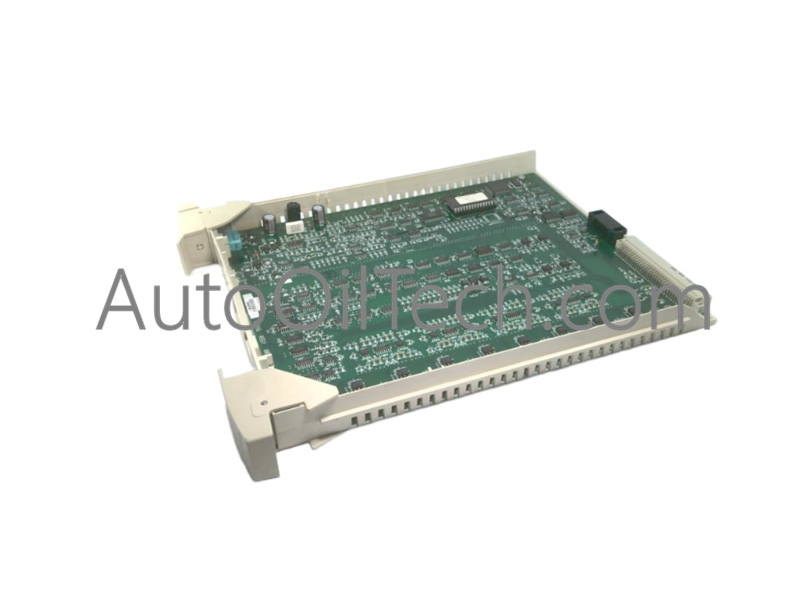

Configured for analog output signal processing in Honeywell control architectures, the Honeywell 80363969-100 (80363969-100 Analog Output Processor Card) provides direct physical/electrical execution.
Hardware Specifications
Parameter
Specification
Model
80363969-100
Brand
Honeywell
Base Model
80363969-100
Module Type
Analog Output Processor Card
Origin
USA
Weight
1.21 lbs
Dimensions
Standard Controller Card Footprint
Operating Temp
0 to 60 deg C
Power Consumption
Standard Backplane Bus Supply
Output Channels
16 channels
Output Signal Type
4-20 mA
Product Category
PC Board PLC / Add-On Board
4-20 mA HART Loop Protocol and Channel-to-Channel Isolation
The Honeywell 80363969-100 converts controller output directives into 16 discrete 4-20 mA analog output signals for field final control elements. Operating across 4-20 mA HART loop protocol device networks, the card integrates channel-to-channel isolation networks to suppress common-mode electrical noise, eliminate ground potential loops, and protect backplane logic interfaces. Signal conditioning circuitry maintains continuous driving stability across varying field loop loads within standard operating thermal parameters.
Frequently Asked Questions
Q: What output signal specifications are provided by the 80363969-100 processor card?
A: The card generates 4-20 mA analog output signals across 16 independent channels.
Q: What is the physical weight of the 80363969-100 assembly?
A: The unit has an approximate physical weight of 1.21 lbs.
Q: How does the card prevent noise transmission between field control loops?
A: Integrated channel-to-channel isolation barriers isolate signal paths to prevent common-mode noise and ground loops from impacting channel operation.
Field Installation Guidelines
Power De-energization: Ensure backplane power supplies and external loop driving circuits are fully de-energized prior to inserting or removing the card assembly.
Card Alignment: Align the PC board edges with the card guide rails in the designated carrier slot. Press firmly until the rear connector seats completely into the backplane bus.
Wiring & Grounding: Route output wiring through dedicated channels separate from high-voltage AC lines. Connect signal cable shielding to a single-point system chassis ground rail.
Thermal Management: Maintain required vertical spacing within the enclosure rack to facilitate natural air convection and thermal dissipation.
