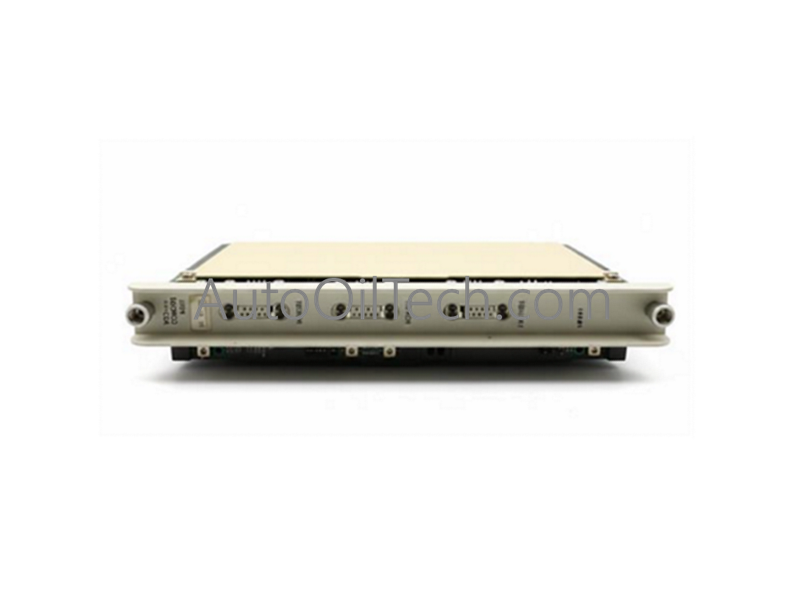

Honeywell 622-1043 PTP Control Module

Configured for precision time protocol (PTP) synchronization in distributed industrial control platforms, the Honeywell 622-1043 (622-1043 PTP Control Module) provides direct physical and electrical execution of high-resolution timing and packet-based synchronization tasks.

Hardware Specifications

Industrial Control and Network Characteristics

• Backplane bus communication velocity: The 622-1043 operates as a high-speed node on the controller backplane, managing time-stamping functions for events requiring sub-millisecond precision. Its architecture is optimized for low-latency communication with the main processing unit to minimize jitter during synchronized execution.
• Profinet / EtherNet/IP deterministic networks: The module integrates seamlessly into Ethernet-based deterministic networks, utilizing PTP (IEEE 1588) protocols to align system clocks across geographically distributed I/O racks. This ensures that time-critical control loops remain aligned, which is necessary for complex motion control and multi-axis coordination.
• I/O density scaling: The module supports high-density time-stamping, allowing for the capture and alignment of events across a large array of input channels without burdening the primary CPU with overhead tasks.
• Firmware flash compatibility: The card supports site-specific firmware updates to ensure compatibility with evolving deterministic network protocols and security standards, maintaining long-term operational relevance within Honeywell control ecosystems.

Frequently Asked Questions

Q: Does the 622-1043 support hot-swapping in a live control rack?

A: Hot-swap capability is dependent on the specific controller backplane revision. Consult the system hardware manual to confirm if the 622-1043 is qualified for live insertion or extraction without impacting active time-stamped control loops.

Q: How is PTP synchronization verified for this module?

A: Synchronization is verified via the system engineering software, which monitors the master-slave clock offset. If the offset exceeds defined threshold values, the module triggers a diagnostic alarm to the operator console.

Field Installation Guidelines

• Mounting: Seat the PC board firmly into the designated control rack slot. Ensure all backplane connectors are fully engaged to guarantee timing signal integrity, which is mandatory for maintaining sub-millisecond synchronization accuracy.
• Grounding: Bond the module chassis to the cabinet earth bus using a low-impedance connection. A stable ground is critical for suppressing electromagnetic interference (EMI) that could otherwise introduce timing jitter into the PTP packet stream.
• Wiring: Keep Ethernet-based communication lines away from high-power AC or VFD motor output cabling. Utilize shielded category-rated cables for all PTP network connections to mitigate inductive noise ingress, which can disrupt deterministic data frame timing.
