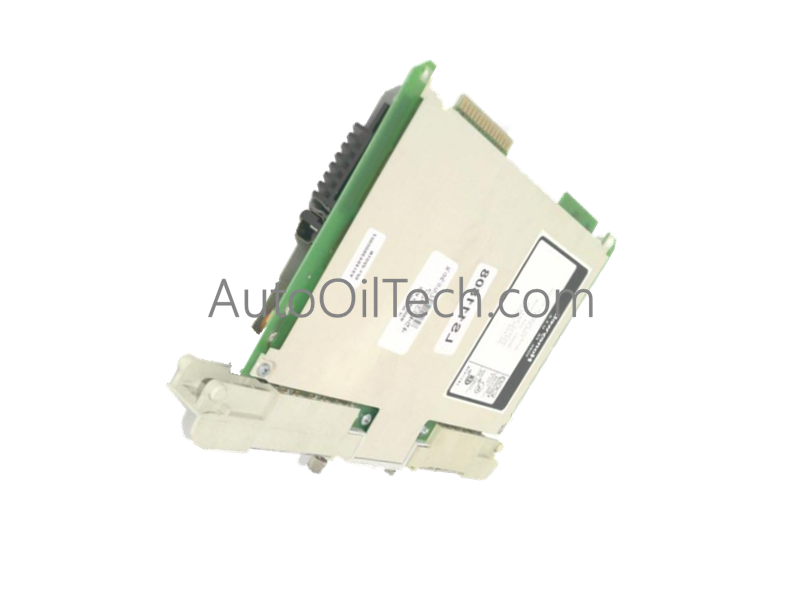

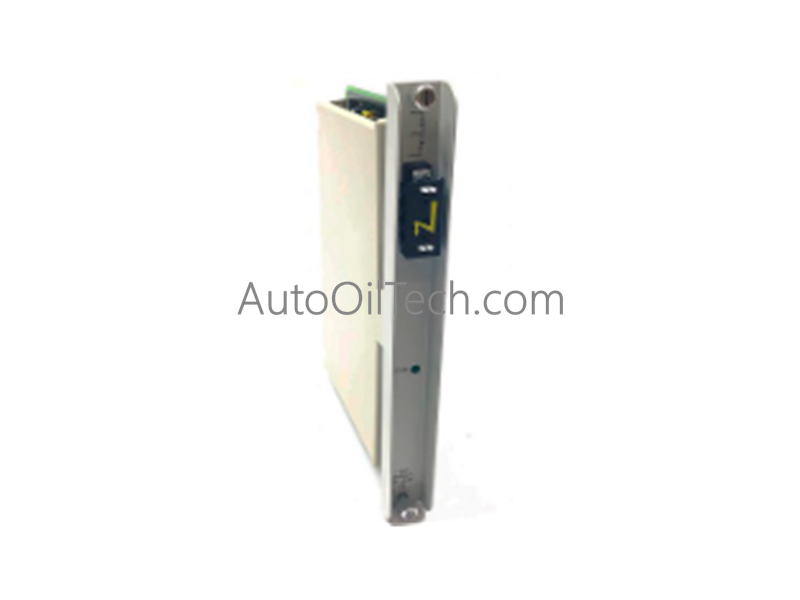

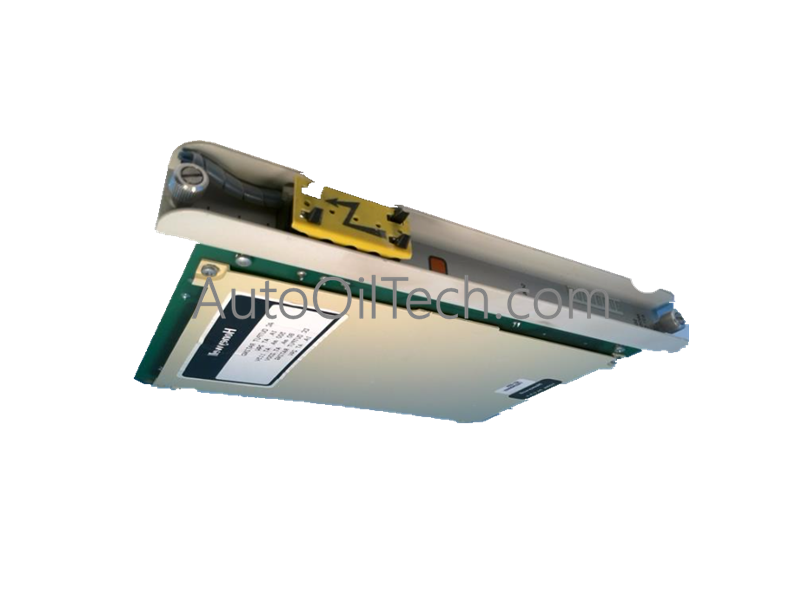

Honeywell 622-1030 Servo Axis Module

Configured for multi-axis motion control in industrial automation, the Honeywell 622-1030 (622-1030 Servo Axis Module) provides direct physical/electrical execution of high-speed encoder feedback and servo amplifier command signal processing.

Hardware Specifications

Industrial Control and Network Characteristics

• Backplane bus communication velocity: The module utilizes a high-speed backplane interface to transmit motion parameters and positional feedback between the servo axes and the primary controller. This velocity is necessary for maintaining precise synchronization in high-dynamic applications.
• Profinet / EtherNet/IP deterministic networks: The 622-1030 is designed to integrate into deterministic motion control networks where timing jitter must be minimized. The module processes encoder pulses and amplifier signals with microsecond-level latency, ensuring repeatable positioning accuracy.
• I/O density scaling: The 20-channel architecture allows for high-density axis control within a single rack slot, reducing the footprint required for multi-axis servo coordination.
• Firmware flash compatibility: The hardware supports site-level firmware updates, ensuring the module remains compatible with current motion control logic and axis-tuning algorithms required by evolving machine control platforms.

Frequently Asked Questions

Q: Can this module control multiple servo axes simultaneously?

A: Yes, the 622-1030 is a multi-channel interface designed to handle encoder feedback and amplifier commands for several axes. Consult your system's motion control library to verify the maximum number of axes supported per physical module.

Q: Are the 20 channels independently configurable?

A: The channels are designated for encoder and amplifier interfacing. Configuration for signal type (e.g., differential vs. single-ended) and scaling is performed via the machine control software, ensuring the module aligns with the specific requirements of the connected servo hardware.

Field Installation Guidelines

• Mounting: Secure the module into the PLC rack, ensuring the backplane connector is fully engaged. Utilize the screw clamp terminals for field wiring to provide a robust mechanical and electrical connection for high-speed signal lines.
• Grounding: Terminate the shield of all encoder and amplifier cables to the designated ground bar on the terminal block. A low-impedance connection is mandatory to prevent electromagnetic interference (EMI) from corrupting feedback signals, which is necessary to avoid axis-positioning errors.
• Wiring: Maintain strict physical separation between low-voltage signal cabling and high-power motor cables. Utilize shielded, twisted-pair conductors for encoder lines to mitigate inductive noise ingress, which can cause erratic servo behavior or controller diagnostic faults.
