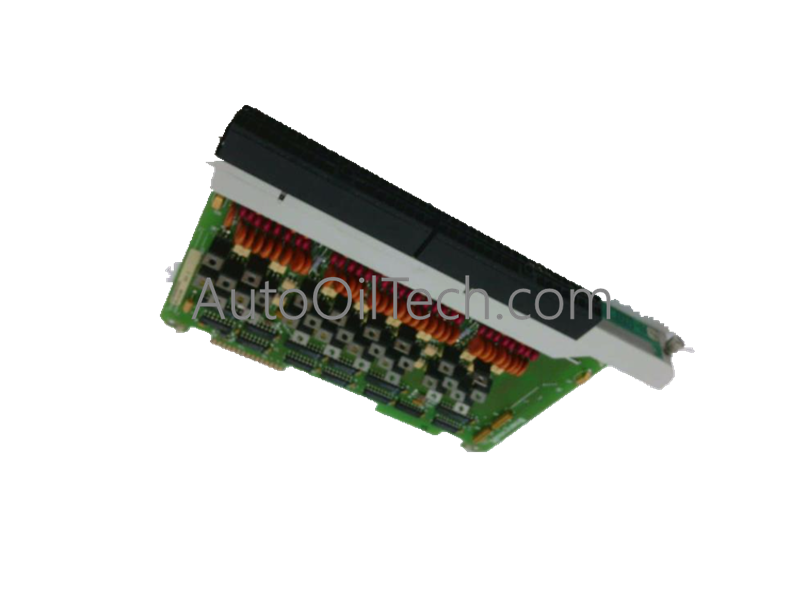

Honeywell 621-6550RC Output Module

Configured for discrete signal execution in industrial control platforms, the Honeywell 621-6550RC (621-6550RC Output Module) provides direct physical/electrical execution of 24 VDC source output switching across 16 discrete channels.

Hardware Specifications

Industrial Control and Drive Characteristics

• Backplane bus communication velocity: The module maintains deterministic timing with the PLC backplane to ensure rapid command propagation for real-time control of field actuators.
• Profinet / EtherNet/IP deterministic networks: The output switching logic is optimized to minimize latency and jitter, supporting stable integration into distributed control networks requiring time-critical signal activation.
• I/O density scaling: The 16-point source output architecture supports high-density load management, enabling efficient consolidation of 24 VDC peripheral control within standard PLC rack configurations.
• Firmware flash compatibility: The module design ensures hardware-level compatibility with standard PLC communication protocols, allowing for transparent integration into existing control logic without addressing conflicts.

Frequently Asked Questions

Q: Can an individual output channel drive a 3 A load if the module total is within limits?

A: No. Each individual output is strictly limited to a maximum of 2 A. Exceeding this per-channel rating will cause damage to the output transistor and internal protective circuitry.

Q: Is this module capable of sinking output current?

A: No. The 621-6550RC is a source output module. It is designed to provide 24 VDC to the load. Ensure the field wiring configuration aligns with source-type switching requirements.

Field Installation Guidelines

• Mounting: Seat the module firmly into the PLC rack slot. Verify that the backplane connector is fully engaged and use the integrated locking screws to ensure mechanical stability in high-vibration conditions.
• Grounding: Connect the module common reference to the cabinet's protective earth (PE) bus. A low-impedance ground path is mandatory for maintaining signal integrity and suppressing noise generated by switching inductive loads.
• Wiring: Keep 24 VDC output lines separated from high-voltage AC or high-current power cabling to prevent crosstalk. Use appropriate wire gauges to handle the cumulative load current (up to 12 A) and verify all terminal connections are tight.
