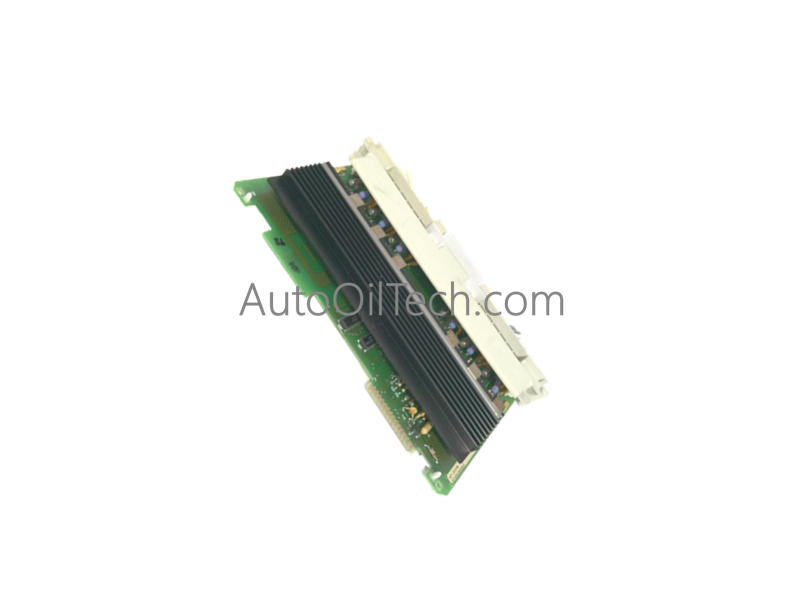

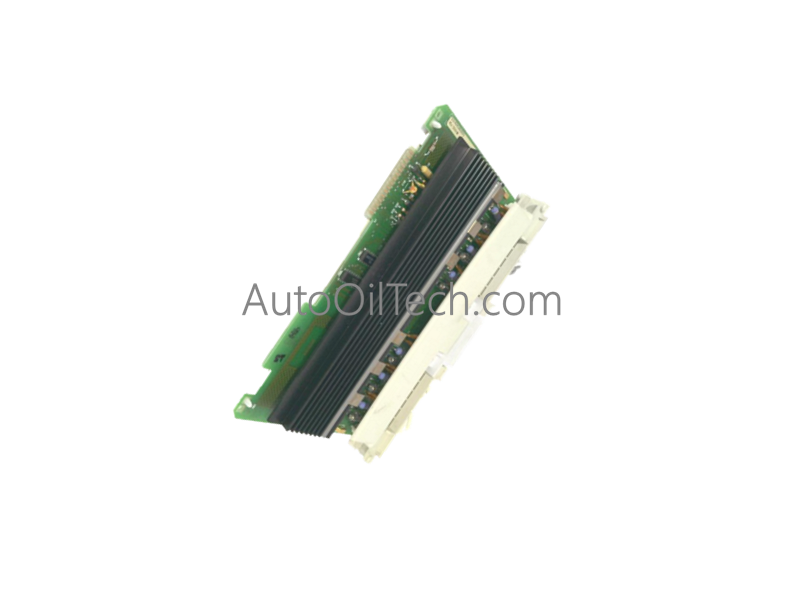

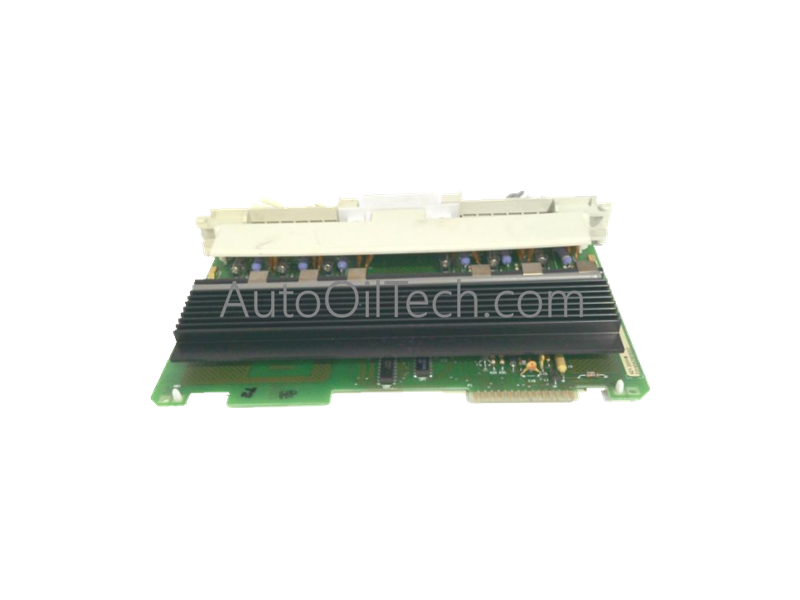

Honeywell 621-6550 Output Module

Configured for discrete state control in PLC-based architectures, the Honeywell 621-6550 (621-6550 Digital Output Module) provides direct electrical execution of 24 VDC load switching for industrial actuators, solenoids, and signaling devices.

Hardware Specifications

Process Control and DCS Connectivity

• 4-20 mA HART Loop Protocol: While operating as a discrete output device, this module serves as a critical component in DCS architectures where discrete interlocks interface with continuous control loops. It ensures synchronized state transitions for safety and sequence logic alongside analog process segments.
• FOUNDATION Fieldbus / Profibus PA Connectivity: The module integrates with fieldbus-enabled DCS cabinets to manage high-current discrete loads. By handling 24 VDC switching locally, it maintains a clean signal environment for sensitive digital fieldbus segments.
• Channel-to-Channel Isolation: The module incorporates isolation boundaries between output channels. This architecture prevents electrical fault propagation, ensuring that a short circuit on one 24 VDC output does not affect adjacent channels or the primary DCS backplane communication.
• Cold Junction Compensation (CJC): The module is engineered for installation in racks shared with high-precision thermocouple inputs. Its low-heat dissipation design ensures that the rack environment remains stable, preventing thermal gradients that could impact the accuracy of CJC-reliant analog measurements.

Frequently Asked Questions

Q: Can the 621-6550 be hot-swapped while the output rack is powered?

A: No. The 621-6550 is not designed for hot-swapping. All 24 VDC power to the field terminals and control power to the rack must be isolated before removing or inserting the module to prevent electrical arcing at the backplane pins and unintended field load actuation.

Q: Is this module compatible with AC load switching?

A: No. The 621-6550 is designed strictly for 24 VDC applications. Connecting AC voltage to the output channels will result in improper switching behavior and potential failure of the internal solid-state switching elements.

Field Installation Guidelines

• Mounting: Seat the module firmly into the designated PLC rack slot, ensuring the backplane connectors are fully aligned. Engage the module locking mechanism to prevent movement and ensure continuous electrical contact.
• Grounding: Terminate the module ground terminal to the main system common ground bus. A low-impedance ground path is required for the internal isolation barriers to function correctly in the presence of industrial electrical noise.
• Wiring: Route 24 VDC output conductors away from low-voltage instrument signal paths (e.g., analog inputs or communication cables). Use shielded wire where DC outputs must traverse common cable trays to minimize electromagnetic induction (EMI) into sensitive process loops.
