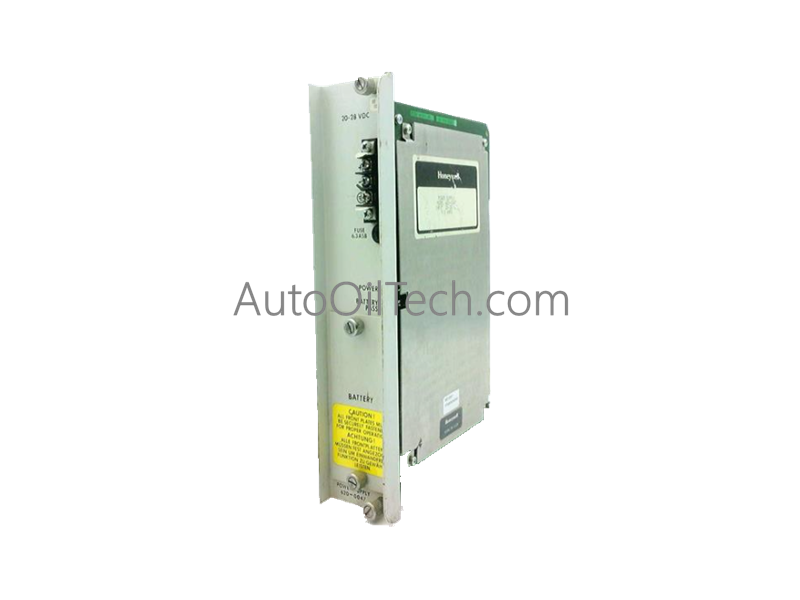

Honeywell 621-3560 Digital Input

Configured for discrete state monitoring in PLC-based control architectures, the Honeywell 621-3560 (621-3560 Digital Input Module) provides direct electrical execution of signal acquisition for 18-28 VDC industrial sensors.

Hardware Specifications

Industrial Network and Signal Isolation

• Channel-to-Channel Isolation: The module utilizes galvanic isolation boundaries between individual input channels to prevent cross-channel noise propagation. This design protects the system backplane from electrical transients originating in the field-side cabling.
• FOUNDATION Fieldbus / Profibus PA Connectivity: The module integrates into DCS environments that utilize digital fieldbus protocols for plant-wide data management. It effectively serves as a discrete interface for digital signals within systems governed by deterministic fieldbus network traffic.
• 4-20 mA HART Loop Protocol: While functioning as a discrete 18-28 VDC input module, it operates within cabinet environments managing active HART loops. The module construction ensures that discrete signal acquisition does not induce electromagnetic noise into adjacent analog 4-20 mA loops.
• Cold Junction Compensation (CJC): The module is engineered with low-thermal-dissipation components to ensure operation within cabinets containing high-precision thermocouple input modules. This prevents localized heat pockets that could compromise the accuracy of CJC-reliant sensor inputs.

Frequently Asked Questions

Q: Is the 621-3560 hot-swappable during PLC rack operation?

A: No. The 621-3560 is not designed for hot-swapping. All power to the input rack must be removed before installation or removal to prevent electrical arcing at the backplane pins and to ensure operator safety.

Q: How does the module handle signal variations within the 18-28 VDC range?

A: The input circuitry contains internal current-limiting stages to regulate the 6-15 mA signal current. This ensures that the input threshold remains stable despite voltage fluctuations within the specified nominal range.

Field Installation Guidelines

• Mounting: Seat the module firmly into the designated PLC rack slot, ensuring the backplane connector is fully engaged. Secure the module using the built-in locking mechanism to maintain chassis rigidity against industrial vibration.
• Wiring: Terminate field inputs using shielded, twisted-pair cabling. Ground the cable shield at the cabinet entry point to provide a low-impedance path for induced noise, ensuring the signal-to-noise ratio remains within acceptable limits for the 16-point input array.
• Verification: Use a digital multimeter to measure the DC potential across the input terminals while the field device is energized. Confirm the input status within the PLC software to verify correct logical mapping.
