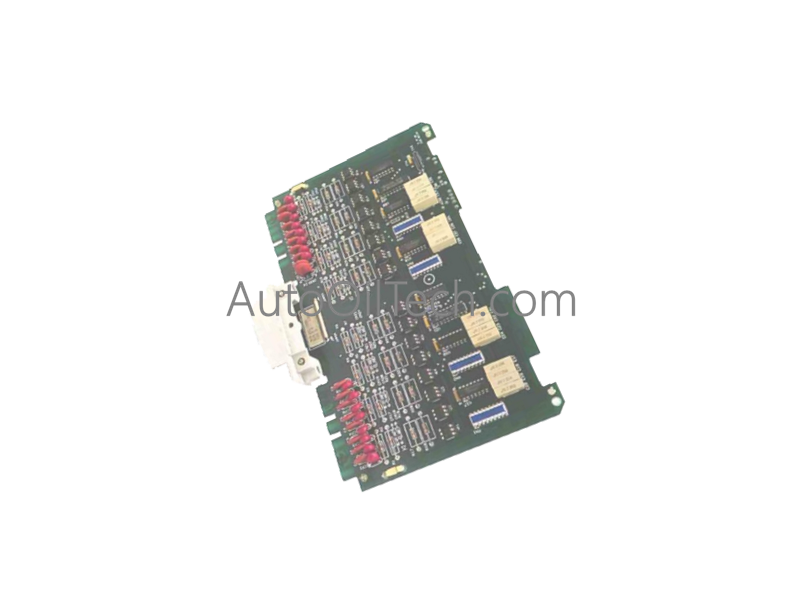

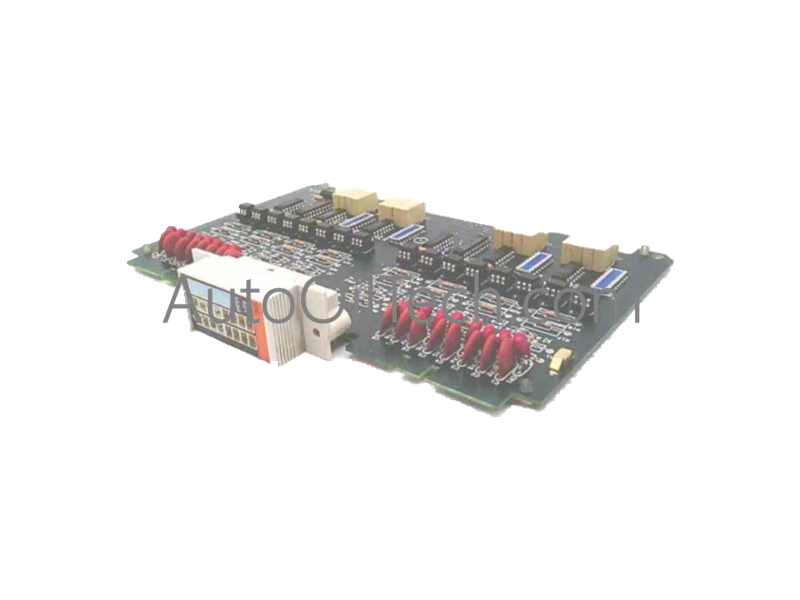

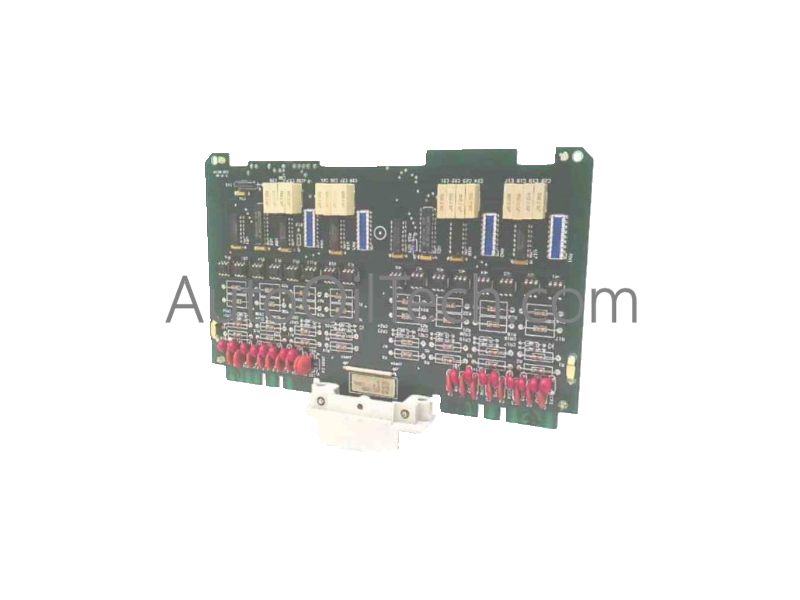

Honeywell 621-3550 Digital Input Module

Configured for discrete state monitoring in PLC-based architectures, the Honeywell 621-3550 (621-3550 Digital Input Module) provides direct electrical execution of 24 VDC signal acquisition for industrial sensors and limit switches.

Hardware Specifications

Industrial Network and Signal Isolation

• Surge Voltage Protection Limits: The input circuitry incorporates transient voltage suppression (TVS) arrays designed to clamp incoming spikes from long-run field cabling. These limits protect the internal opto-isolator stages from damage caused by high-voltage transients on the 24 VDC lines.
• DIN-rail Mounting Stability: The physical chassis is engineered for rigid mechanical coupling to rack or rail mounting systems. This structural design ensures that the high-density backplane interface remains seated under industrial vibration profiles, preventing intermittent signal loss.
• Intrinsic Safety (Ex i) Barriers: This module is intended for standard 24 VDC digital input applications. When interfacing with field devices in hazardous locations, external galvanic isolation barriers must be employed to restrict the energy levels to the field circuit.
• Protocol Conversion Latencies: The module interfaces with the PLC backplane to report input states. The sampling of these inputs is tied to the PLC deterministic scan cycle, ensuring that signal transitions are processed within the system defined timing constraints.

Frequently Asked Questions

Q: Is the 621-3550 module compatible with sinking and sourcing field devices?

A: The compatibility depends on the specific wiring configuration of the module's common return. Verify the polarity requirements in the system wiring manual, as attempting to connect an incompatible sourcing/sinking device will result in the input state failing to register.

Q: Can the 621-3550 be hot-swapped while the input rack is powered?

A: No. The 621-3550 is not designed for hot-swapping. All power to the input rack must be disconnected before the module is removed or installed to prevent potential arcing at the backplane pins and to ensure operator safety.

Field Installation Guidelines

• Mounting: Seat the module firmly into the designated PLC rack slot, ensuring the backplane connectors are fully aligned. Engage the module locking mechanism to prevent movement.
• Wiring: Use shielded, twisted-pair cabling for all 24 VDC digital inputs. Route input wiring in separate conduits from high-voltage AC lines to prevent induced noise from causing false triggering or input instability.
• Verification: Following installation, use a digital multimeter to verify that the field signal is present at the input terminal (24 VDC relative to the module common). Ensure the status indicators on the front panel reflect the logical state of the connected field device to confirm input channel functionality.
