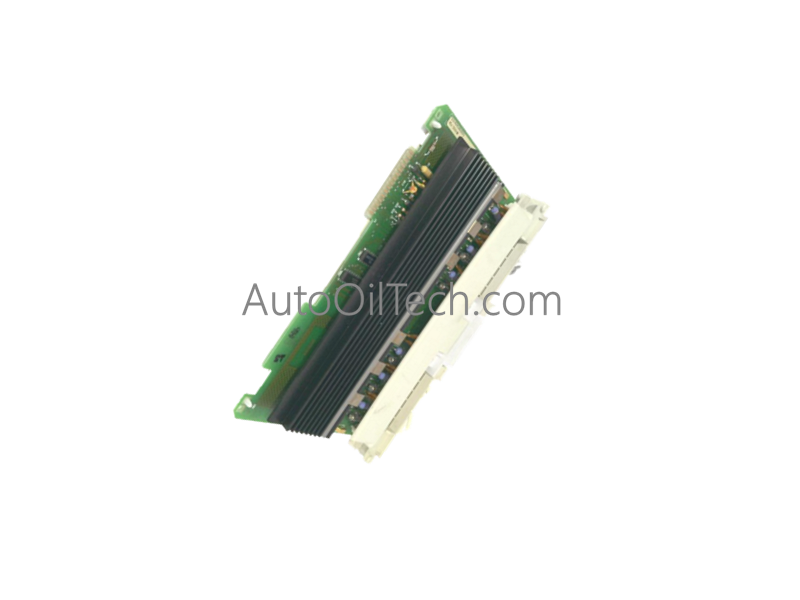

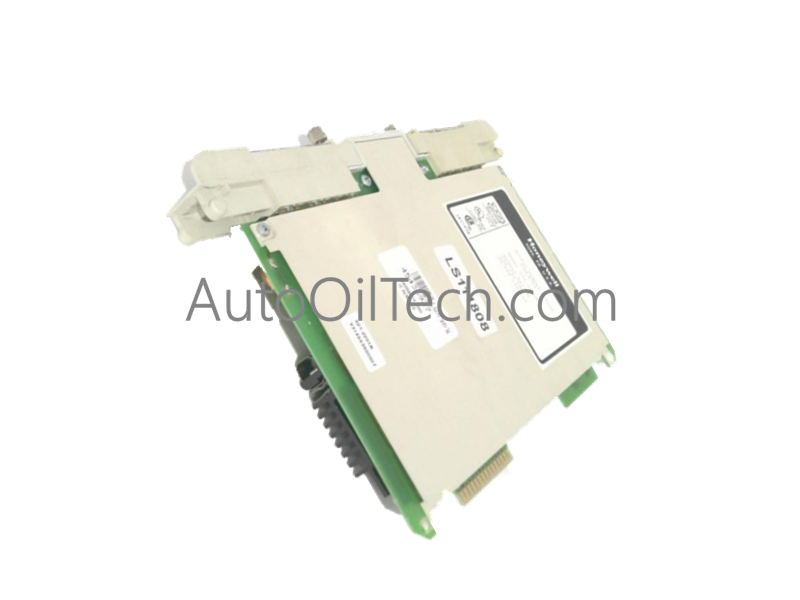

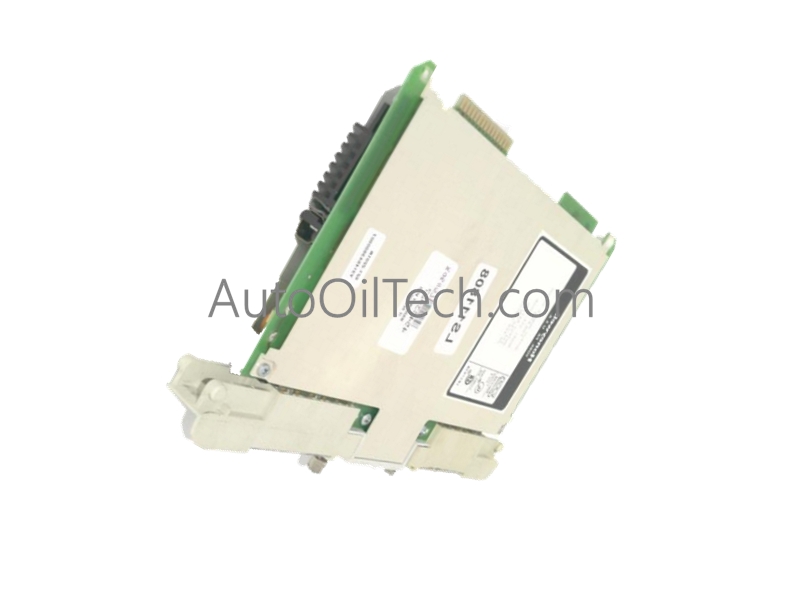

Honeywell 621-2201R Isolated Output Module

Configured for high-voltage discrete switching in industrial control platforms, the Honeywell 621-2201R (621-2201R Output Module) provides direct physical execution of AC load control. The module serves as the primary 621-2201R Isolated Output Module utilized to execute state transitions for field-side actuators and relays across process control systems.

Hardware Specifications

Industrial Control and DCS Metrics

• Channel-to-Channel Isolation: The 621-2201R is engineered with internal galvanic barriers that electrically separate each of the 6 output channels from one another and from the system backplane. This architecture prevents high-voltage transients from a single faulted load from propagating to adjacent channels or the central controller logic, maintaining overall system availability in demanding power switching applications.
• 4-20 mA HART Loop Protocol Connectivity (System Context): While the 621-2201R is a discrete AC output module, it operates within the broader Honeywell I/O subsystem. It maintains electrical compatibility with the system bus to allow concurrent operation with analog HART loop protocol devices, ensuring the total cabinet design minimizes electromagnetic interference between high-voltage discrete switching and sensitive analog instrumentation loops.

Frequently Asked Questions

Q: Does this module support hot-swapping in a Honeywell I/O rack?

A: The 621-2201R is designed for integration into Honeywell I/O racks. Consult the system manual to verify if the specific backplane configuration supports hot-swapping, and ensure the module is off-line before removal to prevent potential arc-flash or communication bus disruption.

Q: Are the outputs internally fused for short-circuit protection?

A: No. The outputs provide galvanic isolation but do not include internal fusing. External load-side protection must be installed to protect the module's switching elements from short circuits or over-current conditions.

Field Installation Guidelines

• Load Wiring: Given the 230 VAC rating, ensure all output wiring is performed in accordance with local electrical codes for high-voltage circuits. Segregate AC load wiring from low-voltage signal cabling within the cabinet to reduce the risk of electromagnetic interference.
• Shielding and Grounding: While the outputs are isolated, ensure that the cabinet's protective earth (PE) bus is properly bonded. High-voltage switching can generate significant noise; maintain short, direct connections to the chassis ground to minimize the influence of radiated interference on sensitive electronics.
• Ambient Conditions: Ensure that the module is installed in an environment free from conductive dust and corrosive gases. As an isolated high-voltage module, moisture ingress or particulate accumulation on the terminal block can lead to tracking and dielectric breakdown between channels.
