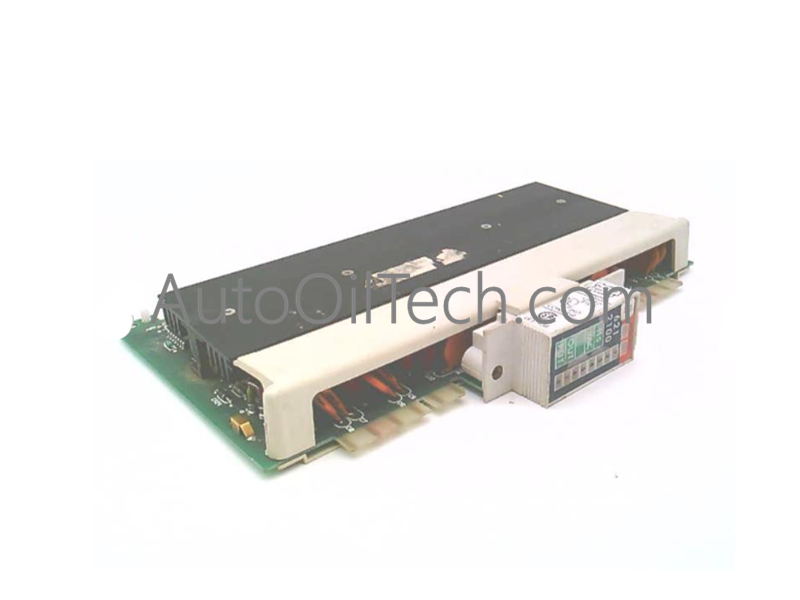

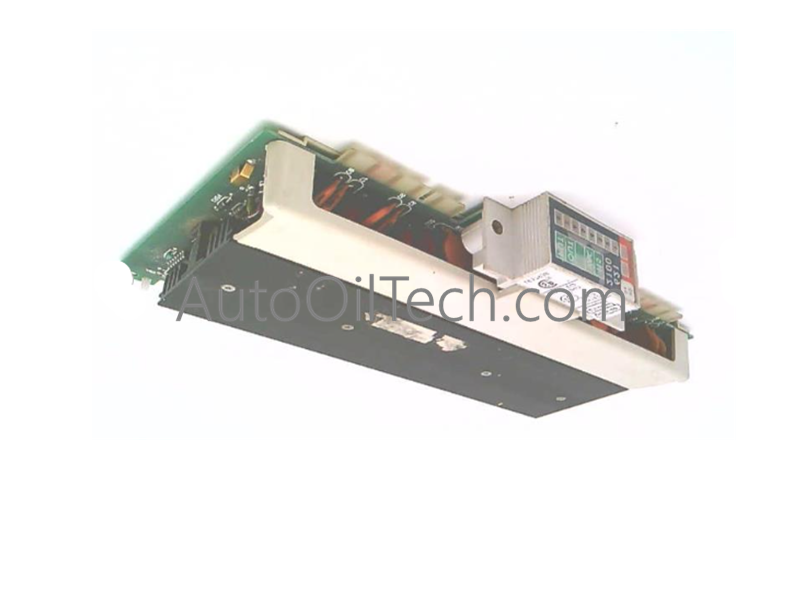

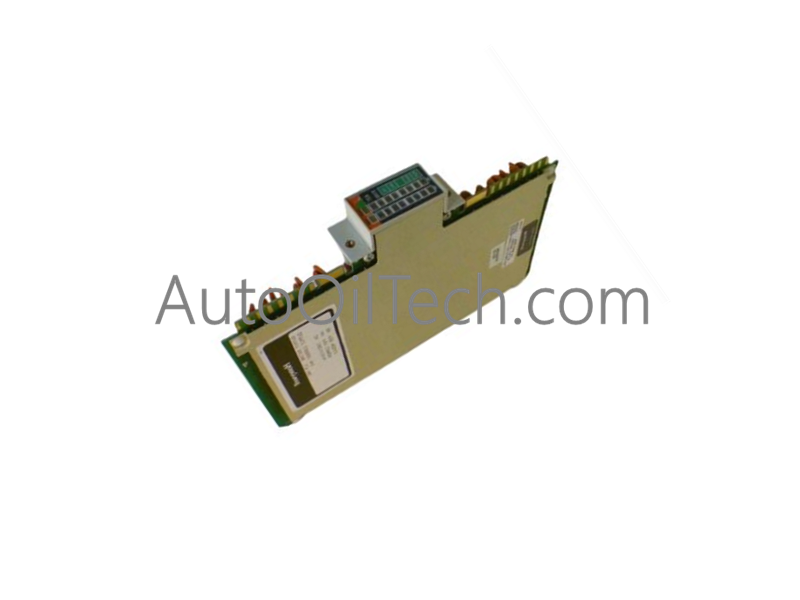

Honeywell 621-2150 Digital Output

Configured for high-density discrete state control in PLC-based architectures, the Honeywell 621-2150 (621-2150 Digital Output Module) provides direct electrical execution of AC load switching for industrial actuators and signaling devices.

Hardware Specifications

Industrial Network and Signal Isolation

• Surge Voltage Protection Limits: The output circuitry incorporates snubber networks and transient voltage suppression to manage inductive kickback from high-density AC load banks. These components clamp voltage transients to levels compatible with the module switching elements, ensuring the longevity of the 16-point output array.
• DIN-rail Mounting Stability: The mechanical chassis is engineered for rigid coupling to PLC backplane racks. This structural integrity prevents misalignment of the 16-point terminal interface under industrial vibration profiles, maintaining continuous electrical contact for all output channels.
• Intrinsic Safety (Ex i) Barriers: This module is designed for standard AC switching applications and does not include intrinsic safety features. Galvanic isolation barriers must be implemented externally when interfacing with instrumentation located in hazardous area zones.
• Protocol Conversion Latencies: The module interfaces with the PLC backplane to process high-speed output commands. The deterministic scan rate of the host PLC governs the switching latency, ensuring that the 16 output points are updated in synchronization with the system defined control loops.

Frequently Asked Questions

Q: Is this 16-point module compatible with mixed AC/DC voltage applications?

A: No. The 621-2150 is rated strictly for 115 VAC, 50/60 Hz. Connecting DC loads will result in immediate output failure, as the module switching elements are optimized for AC zero-crossing operation.

Q: Can the 621-2150 be hot-swapped while the output rack is powered?

A: No. The 621-2150 is not designed for hot-swapping. All power to the rack must be removed before attempting removal or insertion to prevent arcing at the high-density backplane pins and to ensure operator safety.

Field Installation Guidelines

• Mounting: Insert the module into the rack and ensure the backplane pins are fully mated. Use the integrated locking mechanism to secure the module against vibration.
• Wiring: Utilize properly rated 115 VAC wire for all output terminations. Given the 16-point density, ensure wiring bundles are neatly managed to allow for heat dissipation and to prevent crosstalk between adjacent AC output channels.
• Verification: Perform an output loop check using an external voltage source if possible, or verify state changes through the PLC software while ensuring all field devices are in a safe, de-energized state during the testing phase.
