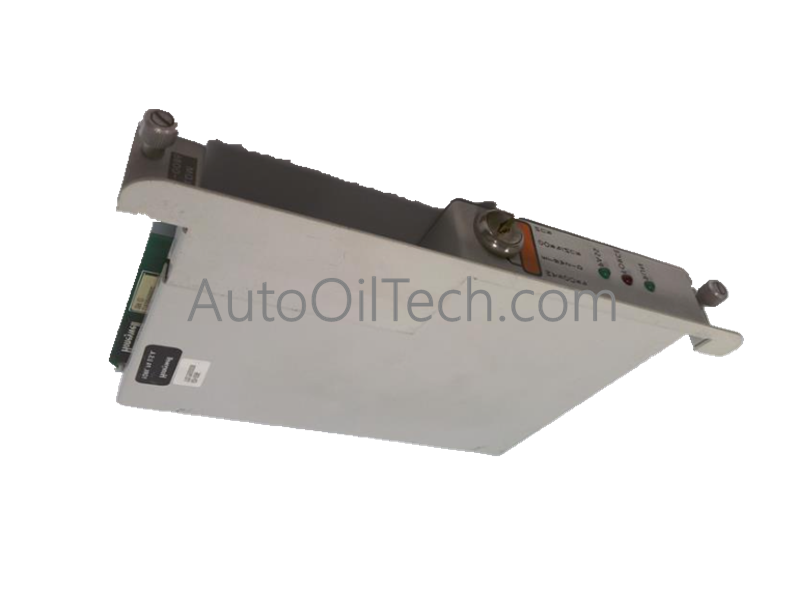

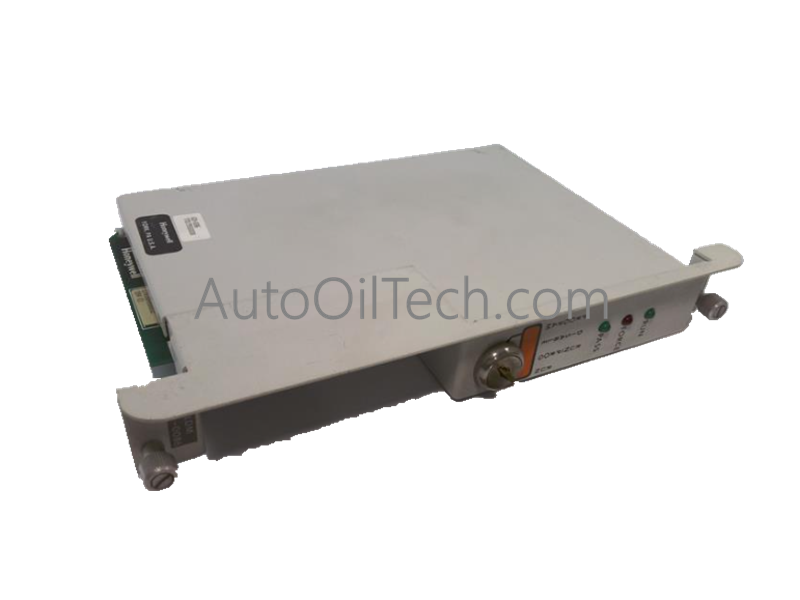

Honeywell 620-0081 Data Hiway Interface Module

The Honeywell 620-0081, also cataloged as the 620-0081 Data Hiway Interface Module, operates as a dedicated hardware component for protocol conversion and bus communication management within Honeywell 620 series control architectures. Configured for high-speed data exchange, the Honeywell 620-0081 (620-0081 Data Hiway Interface Module) provides direct physical execution of network-level data integration across industrial control platforms.

Hardware Specifications

Industrial Control and DCS Metrics

• Channel-to-Channel Isolation: The 620-0081 is engineered with internal galvanic isolation barriers to decouple the Data Hiway network from the system backplane. This design prevents electrical noise or transient voltages present on the network cabling from propagating into the central control processor, ensuring system-level stability during network-wide events.
• 4-20 mA HART Loop Protocol Connectivity (System Context): The module is designed to bridge data between the Data Hiway and the I/O subsystem. While it manages network packets, it ensures that the timing for associated 4-20 mA HART loop protocol variables remains synchronized within the system's global update cycle, preventing latency-related errors in analog process monitoring.

Frequently Asked Questions

Q: Can this module be hot-swapped while the Data Hiway is active?

A: No. The 620-0081 is not designed for hot-swapping. Attempting to remove or insert the module while the Data Hiway bus is energized can result in signal corruption and potential hardware damage to both the module and the backplane connectors.

Q: How is the module configuration maintained during a power cycle?

A: The configuration data is typically stored in non-volatile memory within the module. Upon power-up, the module performs a self-diagnostic sequence before re-joining the Data Hiway token-passing rotation.

Field Installation Guidelines

• Network Termination: Ensure that the Data Hiway cabling is correctly terminated at both physical ends of the segment. Improper termination will result in signal reflections, leading to high bit-error rates and intermittent communication drops between the controller and the interface.
• Shielding and Grounding: Terminate the cable shields at the designated instrumentation earth bus. Maintaining a low-impedance ground path is required to suppress electromagnetic interference that can corrupt high-speed communication signals.
• Environmental Sealing: Install the module in a cabinet that provides protection against ingress of moisture and conductive dust. Particulate accumulation on the module connectors can create leakage paths, potentially causing CRC errors during network communication.
