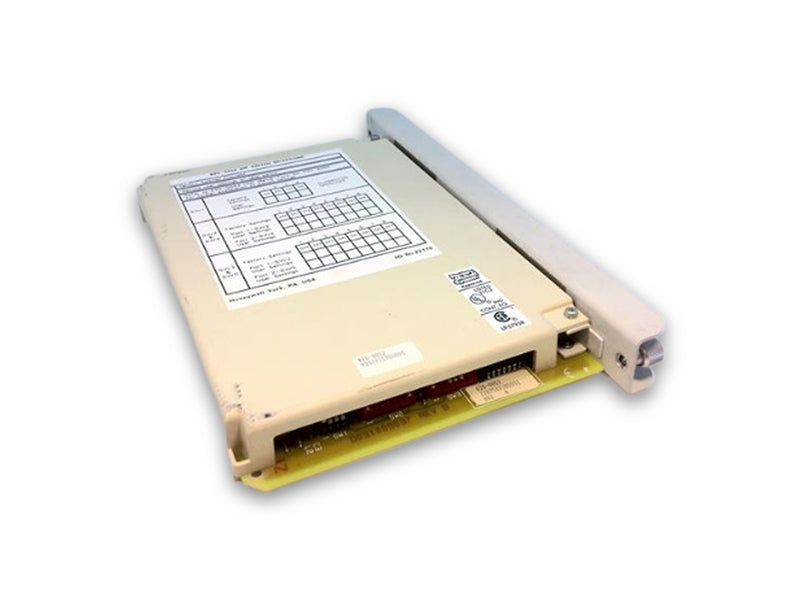

Honeywell 620-0052 Communication Interface Module

The Honeywell 620-0052, also cataloged as the 620-0052 Communication Interface Module, operates as a dedicated hardware component for backplane data bus routing and serial communication management within IPC-620 Programmable Logic Controller system architecture.

Hardware Specifications

Channel-to-Channel Isolation and Deterministic Routing

Designed within Honeywell DCS and IPC architecture specifications, the 620-0052 module incorporates high-density channel-to-channel optical isolation to prevent ground loop noise from propagating across the central processor backplane. The internal physical layer utilizes dedicated baud-rate processing logic to maintain deterministic data transmission profiles across distributed racks. Differential transceiver circuitry reduces electromagnetic interference susceptibility, while internal cold junction compensation references ensure baseline reference accuracy for low-level signal paths across the chassis interface.

Frequently Asked Questions

Q: Can the Honeywell 620-0052 module be hot-swapped while the IPC-620 rack is energized?

A: No, hot-swapping is strictly prohibited. Inserting or removing the module while the backplane power supply is live can induce voltage transients, damage serial transceiver ICs, and disrupt logic processing on active nodes.

Q: What grounding procedure is required for the communication cable shield attached to the 620-0052?

A: The communication cable shield must be grounded at a single point to the main system earth ground bar inside the enclosure. Do not ground the shield at both ends, as this creates ground loops that introduce high-frequency electrical noise into signal lines.

Field Installation Guidelines

1. De-energize all primary 120/230 VAC power sources feeding the IPC-620 rack and external I/O field circuits before mechanical installation.
2. Align the module edge connector carefully with the card guide rails of the designated IPC-620 rack slot.
3. Slide the module firmly into the rack until the backplane connector seats completely into the bus motherboard socket. Secure top and bottom retaining screws to 0.6 Nm (5.3 in-lbs) torque.
4. Dress all communication cables using strain relief brackets. Maintain a minimum distance of 200 mm between communication wiring and high-voltage AC power lines.
5. Apply power to the rack chassis, verify green status LEDs on the front panel, and run backplane diagnostic checks prior to putting the controller in RUN mode.
