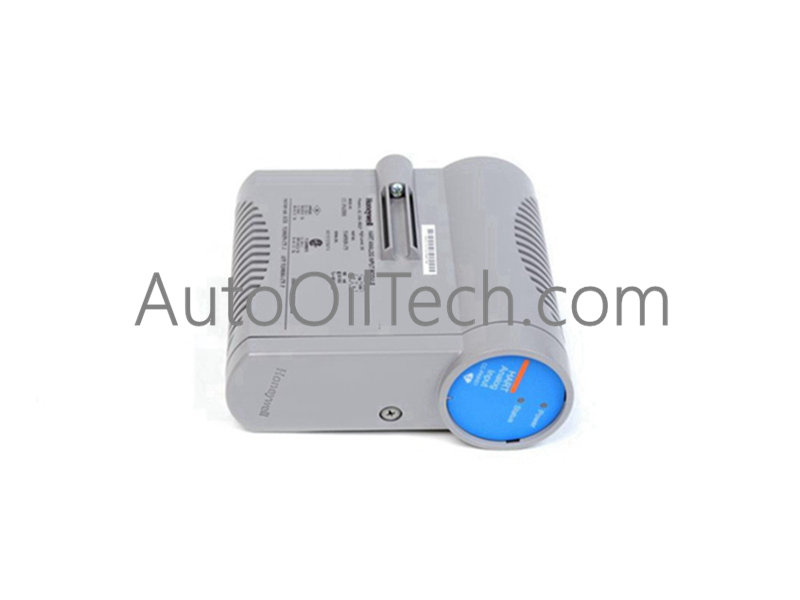

Honeywell 51454473-175 Series 8 Analog Input Module

Configured for low-level analog signal acquisition and temperature measurement in Series 8 DCS platforms, the Honeywell 51454473-175 (8C-PAIMA1 Analog Input Module) provides direct physical/electrical execution.

Hardware Specifications

Cold Junction Compensation (CJC) and Signal Isolation

Engineered for Honeywell DCS instrumentation protocols, the 8C-PAIMA1 module incorporates integral cold junction compensation (CJC) referencing to maintain baseline measurement accuracy across all thermocouple input channels. The physical layer utilizes dedicated channel-to-channel isolation to prevent ground loop noise from propagating across the IOTA backplane bus. Differential analog-to-digital signal processing circuitry suppresses common-mode voltage transients, ensuring deterministic temperature data transmission from field RTD and TC sensors to the central processing unit under harsh electromagnetic interference conditions.

Frequently Asked Questions

Q: Can the Honeywell 51454473-175 module be hot-swapped while the Series 8 chassis is energized?

A: Yes, this hardware supports hot-swapping functionality. Removing or inserting the unit via its dedicated IOTA interface does not disrupt backplane power distribution or halt active logic processing on adjacent system nodes.

Q: What is the required operating voltage for the 8C-PAIMA1 analog input module?

A: The module requires a standard 24 VDC power supply, which is distributed through the Series 8 IOTA mounting base to regulate internal logic voltage across the backplane interface.

Field Installation Guidelines

1. Verify that the designated slot on the Series 8 IOTA mounting base is clear of debris before attempting mechanical installation.
2. Align the 51454473-175 module edge connectors carefully with the vertical guide rails of the IOTA base.
3. Push the module firmly downward until the multi-pin backplane connector fully seats into the IOTA socket. Secure the retaining screws to standard chassis torque specifications to ensure proper mechanical bonding and earth grounding.
4. Terminate external TC or RTD sensor wiring to the corresponding IOTA terminal blocks. Ensure that shield drain wires are grounded at a single point on the cabinet earth bus to prevent ground loops.
5. Apply 24 VDC power to the rack chassis, verify that the front-panel status LEDs indicate successful network initialization, and run module diagnostic checks prior to engaging the process control loop.
