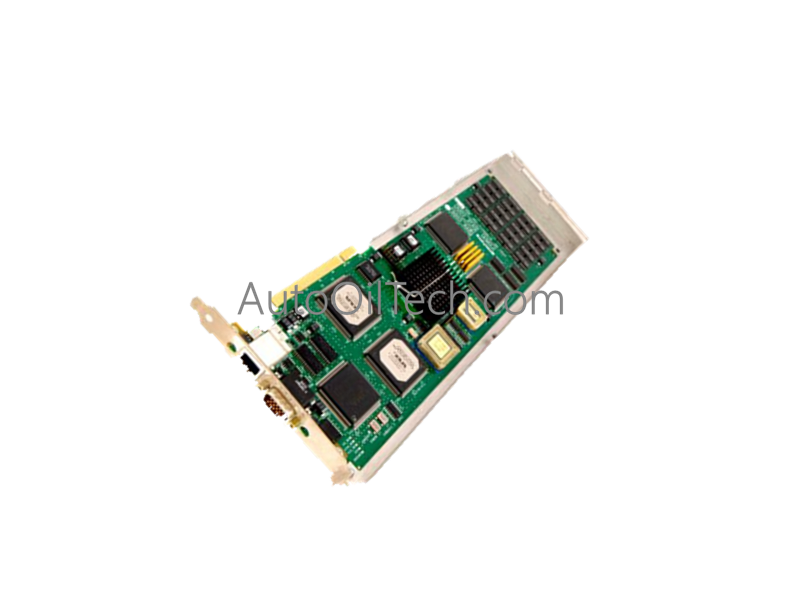

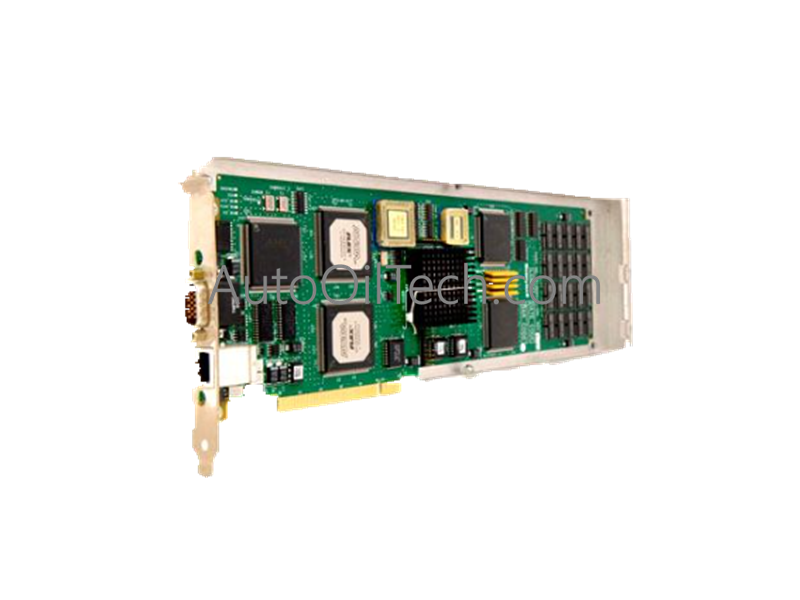

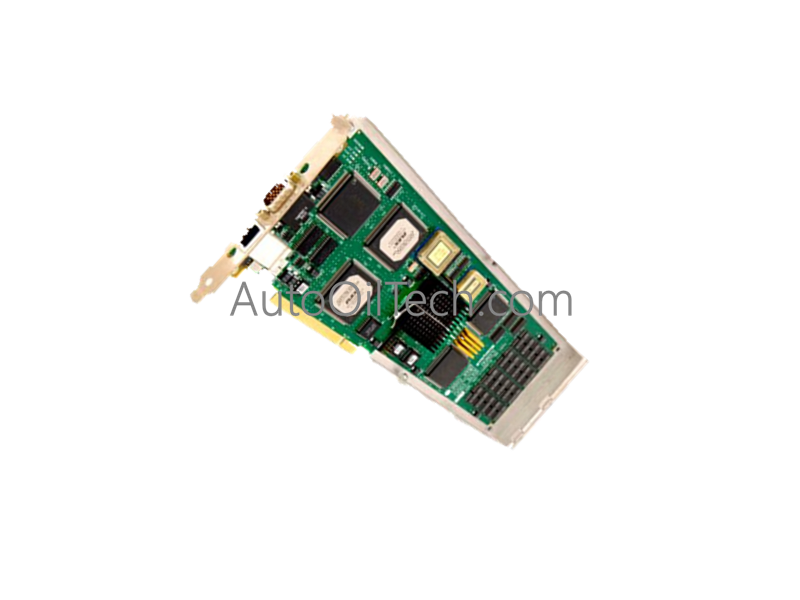

Configured for high-speed protocol processing and network synchronization between host computing stations and the Local Control Network (LCN), the Honeywell 51403299-100 (51403299-100 Processor Board) provides direct physical/electrical execution. The Honeywell 51403299-100 serves as the primary 51403299-100 LCNP4 GPS Processor Board utilized to execute deterministic token-passing communication and global positioning system (GPS) time-synchronization logic across TotalPlant Solution (TPS) platforms.
Driven via host system bus power distribution rails
Functional Class
LCNP4 GPS Processor Board Assembly
Network Interface
Local Control Network (LCN) coaxial connection matrix
Honeywell Process Control and DCS Optimization
4-20 mA HART Loop Protocol and Clock Synchronization: The LCNP4 GPS board coordinates the master time broadcast vectors across the Distributed Control System (DCS) architecture. By stamping sub-millisecond clock markers onto the control bus, it ensures that distributed analog I/O processors and HART loop instruments maintain precise event-sequence logging correlation across all system nodes.
Channel-to-Channel Isolation Matrix: The processing board incorporates specialized galvanic and high-frequency optical isolation barriers along its network transceiver borders. This layout confines electrical common-mode noise, transient voltage spikes, and ground loops to the edge termination circuits, preventing external disturbances from penetrating the host PC motherboard logic layers.
