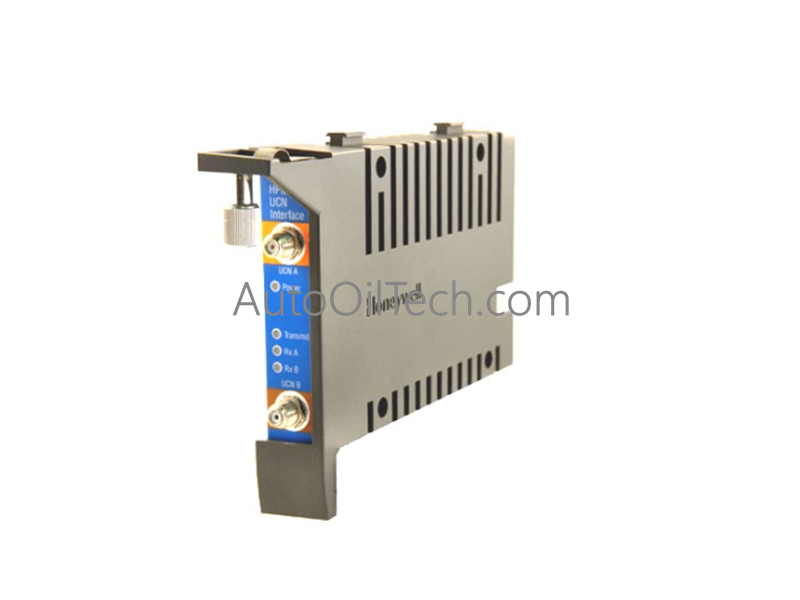

The Honeywell 51402573-250, also cataloged as the 51402573-250 Interface Module Assembly, operates as a dedicated hardware component for VDC logic I/O processing and data routing within Universal Control Network (UCN) Series platforms.
Hardware Specifications
Parameter
Specification
Model
51402573-250
Brand
Honeywell
Series
Universal Control Network (UCN) / High-Performance Process Manager (HPM)
Origin
United States (US)
Weight
0.94 lbs (0.43 kg)
Dimensions
Standard HPM card slot form factor
Functional Class
VDC Logic I/O Brain / Interface Module Assembly
Power Architecture
Driven via standard HPM backplane distribution lines
Honeywell Process Control and DCS Optimization
Channel-to-Channel Isolation Matrix: The electronic board incorporates independent galvanic isolation boundaries across its internal VDC logic processing circuits. This structural design isolates common-mode voltage fluctuations and grounding differentials, preventing field-side electrical disturbances from disrupting primary backplane data buses.
Cold Junction Compensation (CJC) Matrix Routing: During signal mapping across active UCN nodes, the card manages real-time parameter serialization. It guarantees that digitized field metrics from distributed I/O blocks are processed with precise time-stamping and reference linearity, sustaining measurement accuracy across the Distributed Control System (DCS).
Frequently Asked Questions
Q: What physical restriction applies to inserting or removing this module from the backplane assembly?
A: This interface module assembly does not utilize specialized live-insertion surge suppression circuitry. The module must not be extracted or inserted while the rack is actively powered; the slot must be logically isolated or control power completely deactivated to prevent backplane data parity exceptions.
Q: How does the internal logic handle a localized drop in communication on the UCN side?
A: Upon detecting a transmission drop or bus fault, the onboard logic processors transition the card into a deterministic fail-safe monitoring state. The assembly holds its last valid data frame, triggers a localized communication error LED on the faceplate, and passes a diagnostic flag to activate downstream redundant fallback hardware.
