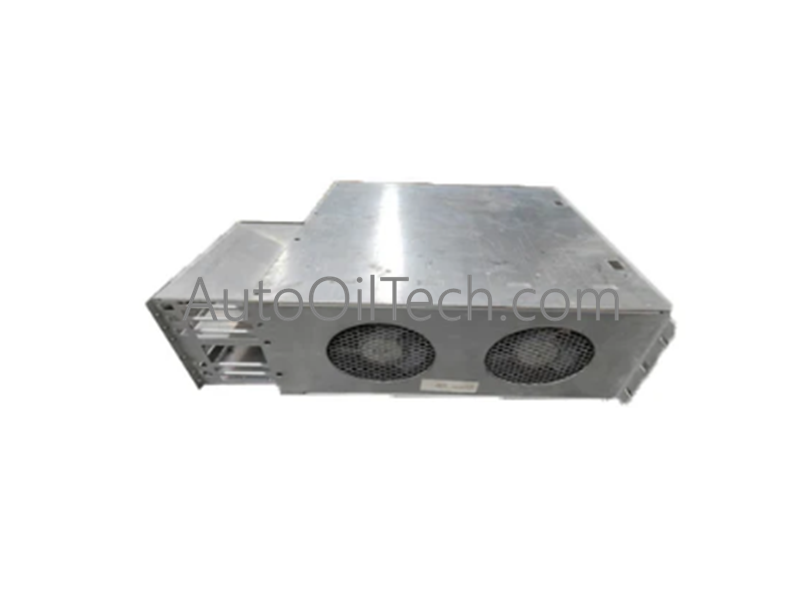

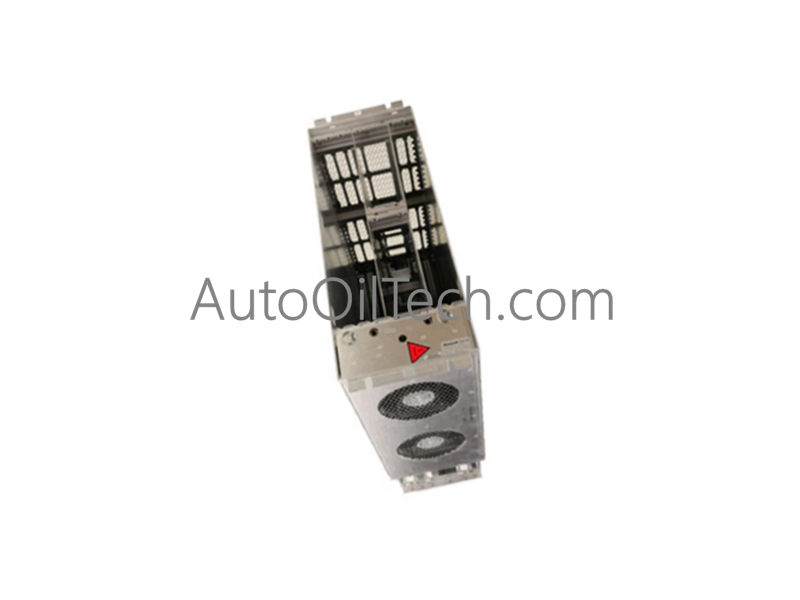

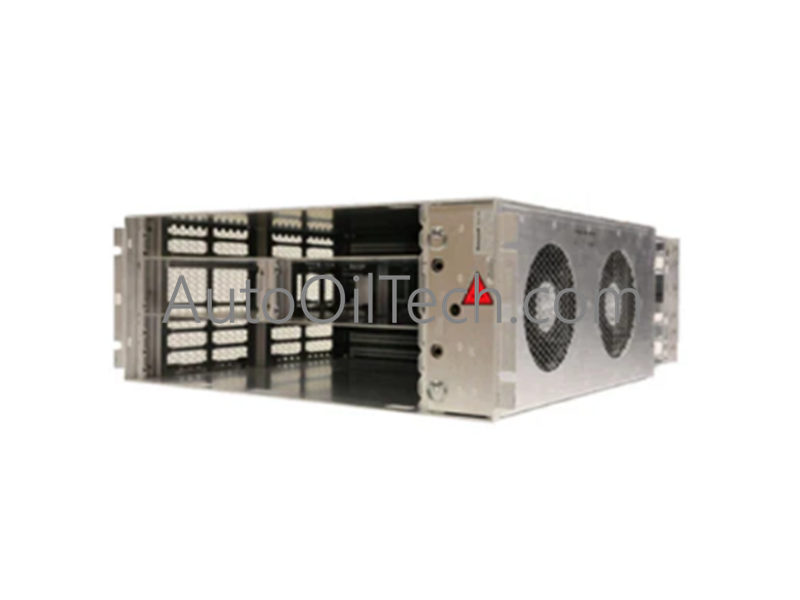

The Honeywell 51402199-100, also cataloged as the 51402199-100 Enclosure Assembly, operates as a dedicated hardware component for localized processing card housing and signal aggregation within Experion PKS platforms.
Hardware Specifications
Parameter
Specification
Model
51402199-100
Brand
Honeywell
Origin
United States (US)
Weight
4.54 kg
Dimensions
43.2 x 17.8 x 50.8 cm
Operating Voltage
24 VDC nominal input
Application Env
Experion Process Knowledge System (PKS) environments
Mechanical Layout
Industrial metal housing with integrated circuit boards
Honeywell Process Control and DCS Optimization
FOUNDATION Fieldbus and Protocol Routing: The internal circuit boards integrated within the chassis support real-time data acquisition and multi-protocol physical signal conversion. The interface bus maps lower-level field device variables straight to high-speed digital buses, stabilizing data frames across centralized Distributed Control System (DCS) architectures.
Cold Junction Compensation (CJC) Matrix: The terminal processing sections use precision onboard thermal tracking sensors to continuously offset voltage drift on field thermocouple inputs. This active reference management isolates the analog conversion circuitry from environmental temperature shifts occurring within the local control cabinet space.
Frequently Asked Questions
Q: What specific power distribution constraints must be observed when installing multiple circuit boards inside this enclosure?
A: The internal bus rails are rated for a stabilized 24 VDC supply path. The cumulative current draw of all active processing and communication cards populated within the sub-slots must not cross the maximum power distribution limits of the integrated backplane plane to prevent thermal overload or voltage drop events.
Q: Does the integrated backplane array support hot-swap replacement of peripheral field I/O cards?
A: The backplane design allows live extraction and insertion of compatible low-voltage field cards only if the corresponding software channels are systematically locked out or placed in bypass mode. Pulling an active data card without logical isolation can trigger temporary bus synchronization anomalies or drop data packets across the Experion PKS network.
