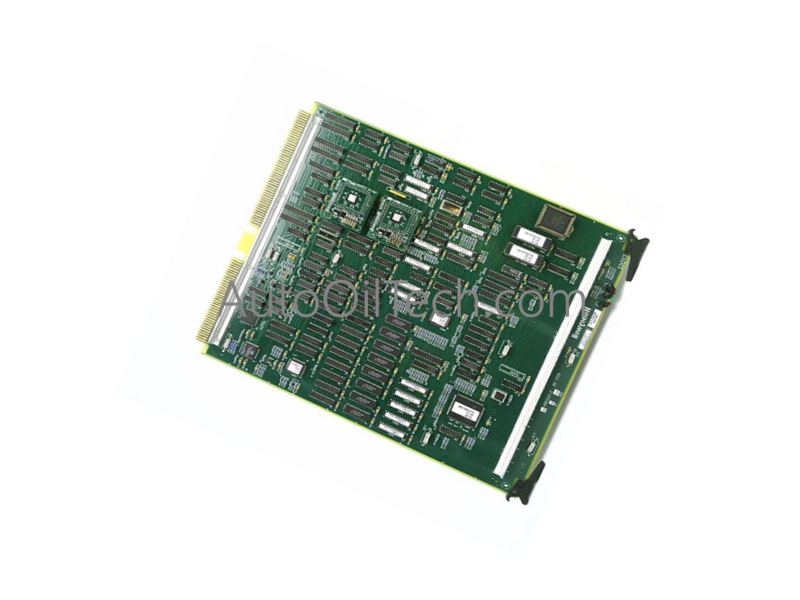

Honeywell 51401996-100 Enhanced Redundancy Assembly Board

Configured for high-availability node arbitration and real-time failure tracking within distributed process control frameworks, the Honeywell 51401996-100, also cataloged as the 51401996-100 Enhanced Redundancy Assembly Board (EAMR Card), provides direct physical/electrical execution. It switches data paths and monitors active/backup states natively at the chassis tier to sustain deterministic operations parallel to master control network platforms.

Hardware Specifications

Distributed Process Control and Channel Isolation

• Channel-to-Channel Isolation and Commutation Security: The assembly board uses high-speed optocouplers to establish physical channel-to-channel isolation between the master controller circuits and the redundant backup tracking loops. This configuration prevents an electrical failure or short-circuit on one module from crossing the backplane, protecting the secondary processor from common-mode faults.
• 4-20 mA HART Loop Protocol Pass-Through Verification: The card architecture maintains separate signal paths to prevent high-frequency digital components from generating cross-talk. This layout ensures that as the board executes active/backup switching, connected analog cards can parse 4-20 mA HART loop protocol diagnostics and multi-variable data fields without attenuation.
• Cold Junction Compensation Thermal Reference Stability: Local voltage rails and tracking traces feature low-drift thermal barriers that isolate sensitive components from temperature gradients inside the enclosure. These components keep internal timing clocks and reference tracking levels constant, avoiding data drift when reading values from adjacent thermocouple cards equipped with cold junction compensation (CJC).

Frequently Asked Questions

Q: What technical tracking behavior manifests on the node network during a primary controller processor fault?

A: The EAMR board's hardware voting circuit detects the loss of the processor heartbeat instantly. It executes a hardware commutation routine, shifting the active control bus to the redundant backup card within millisecond thresholds while logging a diagnostic interrupt frame to the SCADA system.

Q: Can this 2.0 kg enhanced redundancy board be hot-swapped while the primary DCS chassis is active and under load?

A: No. The backplane bus interface connectors on this assembly do not have the staggered pin lengths or logic pre-charging circuits required for live handling. Extracting or inserting the card while powered can cause transient electrical arcs across the bus data tracks, risking damage to processing units and interrupting communication.

Field Installation Guidelines

• Chassis Layout Alignment, Clearance Constraints, and Mechanical Seating: Isolate all incoming primary AC and DC power distribution lines, turn off relevant branch breakers, and verify that an anti-static electrostatic discharge (ESD) wrist strap is bonded to an earth ground prior to installation. Position the board squarely over the designated chassis slot rails, push it straight back until the pins seat completely without bending, and lock the retaining levers to secure the board against cabinet vibration.
• Conductor Separation, Wireway Constraints, and Shield Grounding: Route all high-speed redundancy link cables and data wires inside separate, grounded wireways isolated from heavy AC motor wires or power lines to prevent inductive noise injection. Connect the main overall cable shield braids directly to the terminal enclosure's copper earth busbar to ensure stable telemetry transmission.
