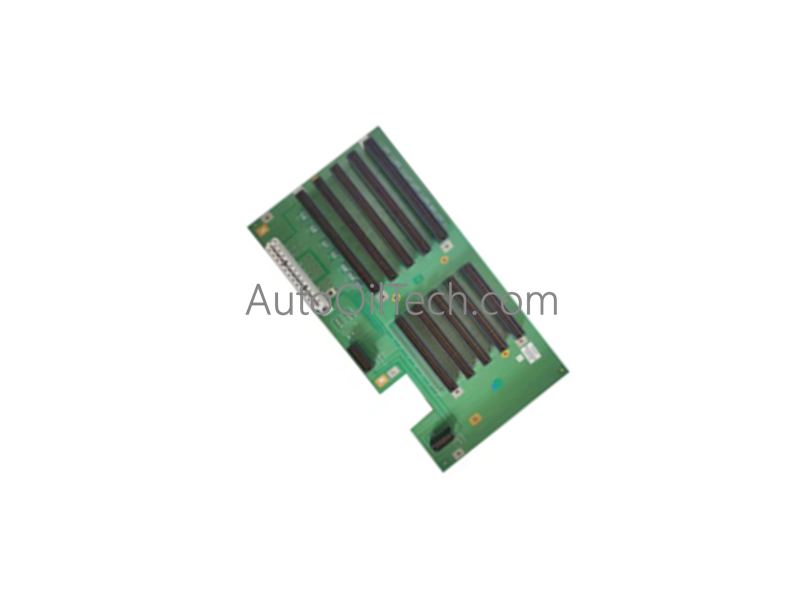

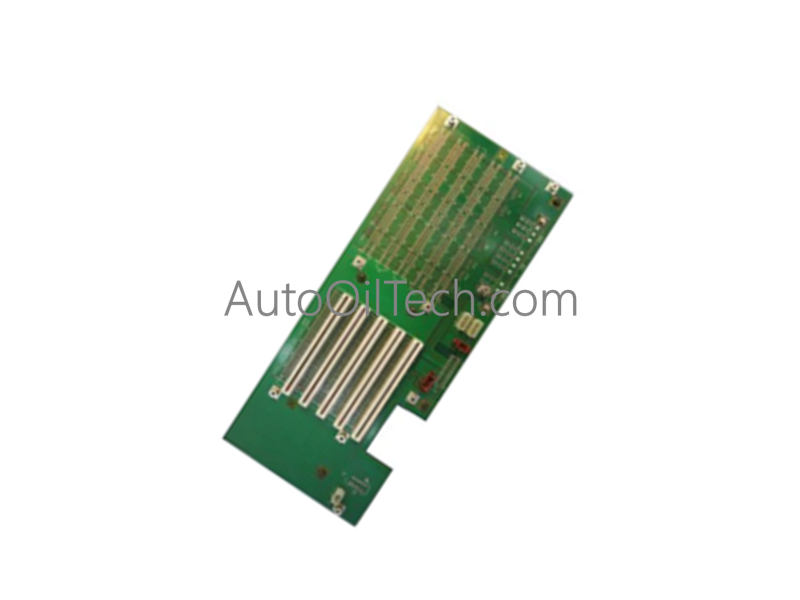

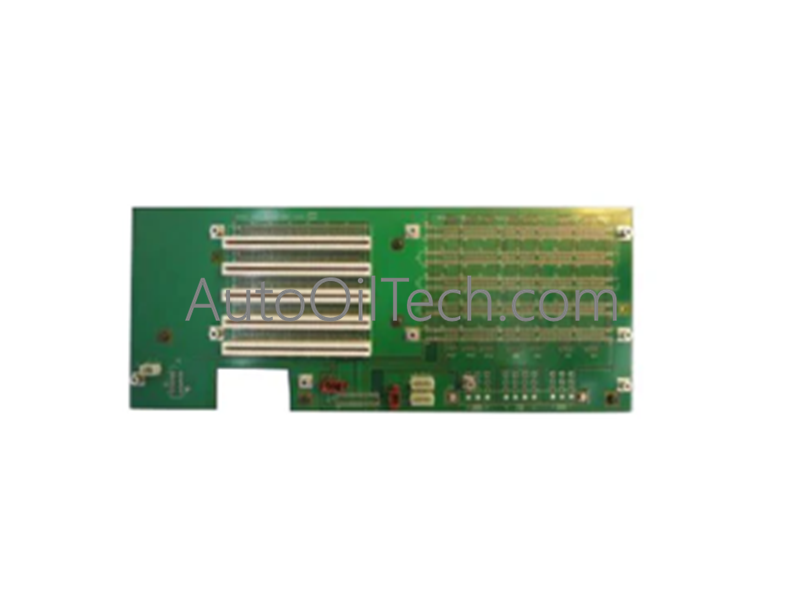

Honeywell 51401381-100 TDC 3000X 5-Slot Backpanel

The Honeywell 51401381-100, also cataloged as the 51401381-100 5-Slot Backpanel, operates as a dedicated hardware component for physical-layer node integration and bus distribution within Honeywell TDC 3000X and TotalPlant Solution (TPS) platforms. It serves as both a structural mounting base and an electrical interconnection hub natively at the card cage tier to maintain uninterrupted multi-module parallel data path tracking alongside master network execution cycles.

Hardware Specifications

Industrial Process Control & DCS Architecture

• Channel-to-Channel Isolation and Bus Interconnection: The 51401381-100 features a multi-layer heavy copper plane design that channels logic power and signal routing safely between 5 separate computing slots. Galvanic and physical trace isolation limits common-mode noise transfer across the backplane, ensuring parallel module communications execute without channel-to-channel cross-talk or impedance mismatches.
• Profinet / EtherNet/IP and Gateway Module Interfacing: This backpanel accepts various processing components including application processors, network gateways, history modules, and universal station cards. The data bus traces deliver deterministic, high-bandwidth signal tracking across all 5 slots, enabling node communication frames to clear within fixed millisecond timing cycles.
• Firmware Flash Compatibility and Lifecycle Support: The internal circuit tracking retains full electrical stability during standard firmware flash procedures or hot-restart routines on individual modules. Built-in power rail decoupling filters absorb the transient current surges that occur during card startup, which shields adjacent processing logic maps from data corruption or unprompted system resets.

Frequently Asked Questions

Q: What specific hardware behaviors manifest if a module inside one of the 5 slots develops a dead short circuit across its local power lines?

A: The backpanel's internal isolation traces and localized fuse elements isolate the faulted slot segment from the shared power planes. This localized protection keeps the remaining 4 backplane slots energized, allowing adjacent processors or gateway links to continue running process loops.

Q: Can this 1.02 kg 5-slot backpanel assembly be extracted from the main rack framework while the system is powered?

A: No. The backpanel is a fixed, non-hot-swappable structural component that provides the electrical and signal backbones for the attached modules. Removing or loosening the backpanel when the system is under load cuts off data and power routes, causing all 5 mounted nodes to crash instantly and dropping associated process valves into their fail-safe mechanical states.
