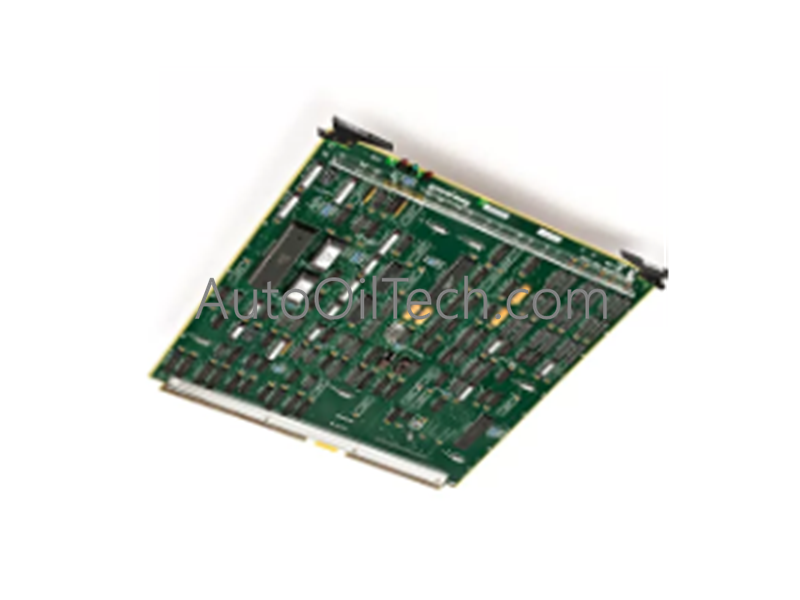

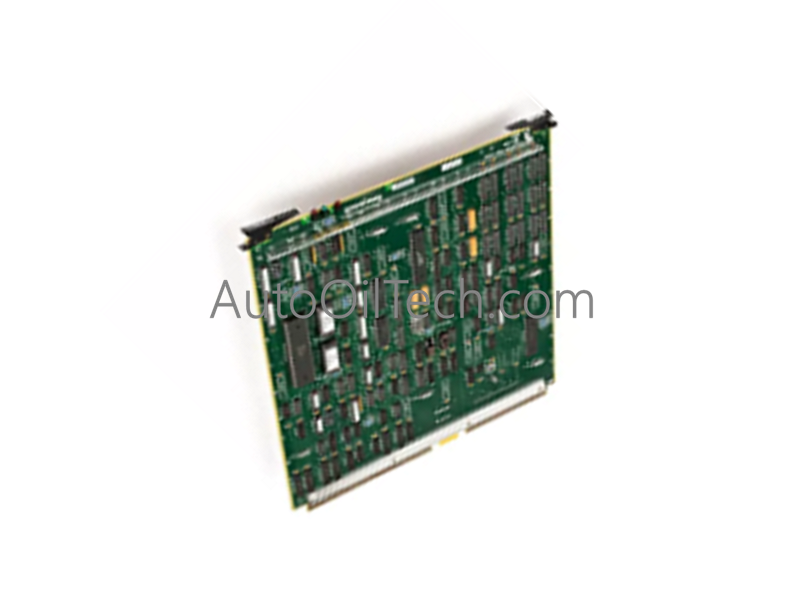

Honeywell 51401291-100 Low Power LCN PC Board

The Honeywell 51401291-100, also cataloged as the 51401291-100 Low Power LCN PC Board, operates as a dedicated hardware component for physical-layer network interfacing and localized data routing within Honeywell TDC 3000 Local Control Network (LCN) platforms. It handles node communication sequences natively at the circuit tier to maintain synchronized token-passing execution parallel to master network processing cycles.

Hardware Specifications

Industrial Process Control & DCS Architecture

• Channel-to-Channel Isolation and Power Distribution: The 51401291-100 features low-power engineering optimizations that lower the thermal footprint inside crowded, multi-slot TDC 3000 enclosures. Galvanic isolation barriers separate internal signal paths from the backplane lines, preventing field-induced voltage surges from migrating into adjacent communication processors or memory arrays.
• Profinet / EtherNet/IP and Deterministic Token Delivery: While acting as a foundational LCN interface layer within legacy Honeywell systems, the board manages deterministic token-passing communication cycles. This physical-tier timing ensures that process data packets and alarm flags register accurately within designated millisecond system windows across all peer nodes.
• Firmware Flash Compatibility and Bus Regulation: Onboard filtering circuits and decoupling arrays isolate the local logic traces from common-mode electrical noise. The transmission registers remain stable during standard firmware flash routines, protecting the host system from communication dropouts or data frame corruption during system upgrades.

Frequently Asked Questions

Q: What specific hardware behaviors manifest if the 51401291-100 detects a frame corruption anomaly on the LCN coax coax network?

A: The board's internal transceiver logic flags a cyclic redundancy check (CRC) exception, updates its internal diagnostic error registers, and attempts to re-acquire the network token. If the fault persists, it triggers a system status contact to prompt an LCN node communication alarm at the operator interface.

Q: Can this 1.95 lbs low-power rack-mount board be hot-swapped while the LCN node is actively processing loop telemetry?

A: No. The legacy TDC 3000 backplane slots do not feature live insertion isolation circuitry or staged grounding pins. Extracting this PWA while the card cage is energized can cause electrical arcs across the bus contacts, risking permanent chip destruction and causing immediate node failure on the active network.
