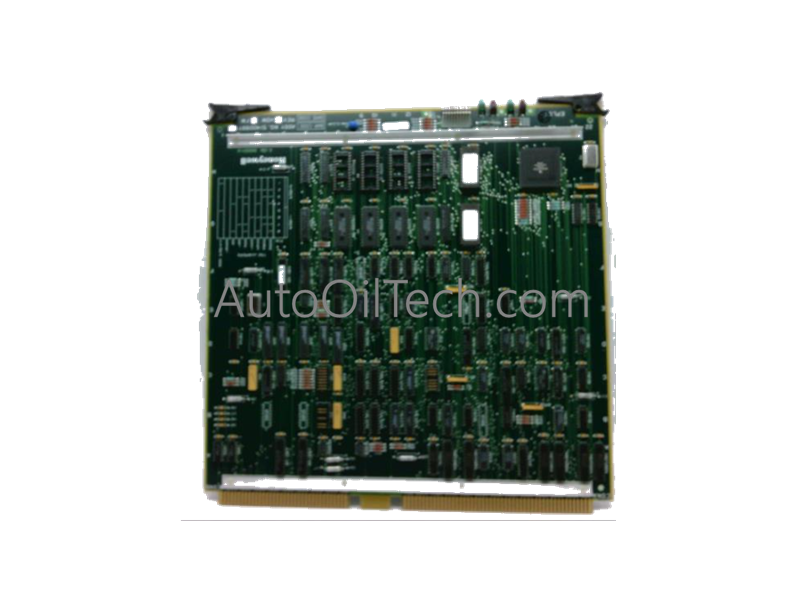

Honeywell 51400668-100 PC Controller Module Board

Configured for high-integrity automation tasks in legacy plant infrastructures, the Honeywell 51400668-100 (51400668-100 PC Controller Module Board) provides direct physical and electrical execution of localized control algorithms. This multi-layered circuit board assembly operates as an intelligent processing node within the controller subrack, executing pre-compiled logic routines and managing downstream input/output communication frames parallel to main distributed control network cycles.

Hardware Specifications

Process Control & Logic Execution

• Backplane Bus Communication Velocity and Memory Synchronization The 51400668-100 interfaces directly with the host chassis parallel backplane bus data lines. The onboard processor executes control loop algorithms with uniform cycle times, updating internal database registers and latching data variables onto the backplane bus within the millisecond task window to keep I/O status changes synchronized.
• Firmware Flash Compatibility and Algorithm Retention The printed circuit board assembly incorporates onboard non-volatile memory sectors dedicated to storing the operating system and user-configured control strategies. This firmware infrastructure runs continuous checksum tracking routines over the full 0 to 60 deg C operating window, preventing data corruption or memory loss during unexpected power transitions.

Frequently Asked Questions

Q: What specific hardware behaviors manifest if the PC Controller Module Board encounters an internal RAM parity error during execution?

A: The onboard hardware watchdog timer immediately trips, forcing the module's execution loop to halt. The processor drops its card-healthy register bit, switches all local outputs to their pre-configured safe states, and turns on the front panel red fault LED to signal an unmasked processing failure to the master supervisor terminal.

Q: Can this 1.98 lbs circuit board assembly be hot-swapped while the subrack backplane is fully energized?

A: No. Because this controller board actively executes control algorithms and drives system bus data lines, extracting it while the rack is powered can cause transient voltage spikes or arcing across the high-density backplane pins. This can damage adjacent logic cards and corrupt running memory stacks inside the CPU.
