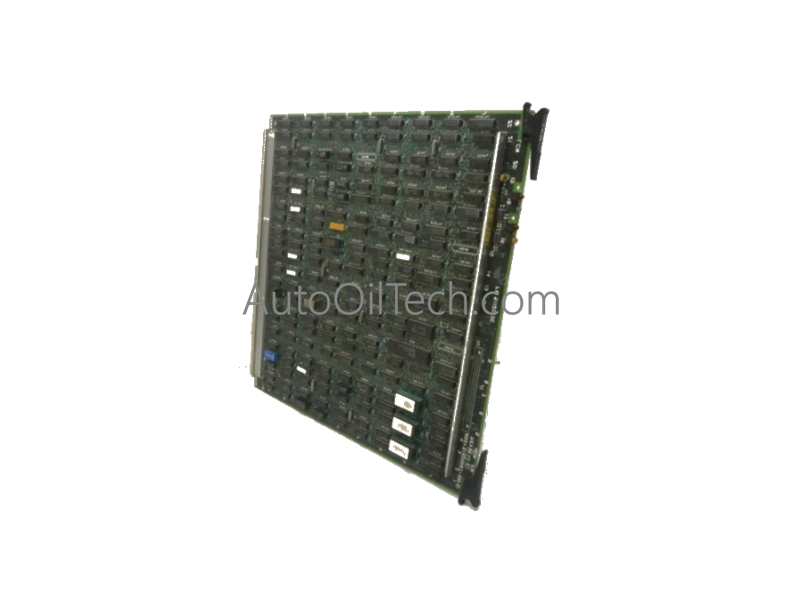

Honeywell 51400667-100 Local Control Network Interface Board

The Honeywell 51400667-100 serves as the primary 51400667-100 Local Control Network (LCN) Interface Board utilized to execute node configuration and real-time protocol bridging across Local Control Network platforms using older non-integrated processors. Configured as a high-integrity communication node, this board handles synchronous data frame serialization natively at the physical tier, allowing older processing architectures to map internal data registers directly onto the high-speed token-passing network parallel to central system updates.

Hardware Specifications

Process Control & Network Interface Dynamics

• Backplane Bus Communication Velocity and Token Serialization The 51400667-100 synchronizes the slower, non-integrated internal processing cycles with the constant bit-rate of the LCN coaxial highway. The board features dedicated dual-ported memory registers that latch incoming processor variables, packetizing them into high-speed deterministic frames to match network traffic speed without adding variable communication latency.
• Profinet / EtherNet/IP Deterministic Networks Alignment While designed for legacy token-passing coaxial lines, the board manages data using strict network timing rules. The onboard transceiver components handle physical address verification and token-holding windows directly, preventing configuration variations in older hardware modules from causing frame collisions or jitter on the main distributed control system network.

Frequently Asked Questions

Q: What specific hardware behaviors manifest if the LCN Interface Board encounters an absolute coaxial signal loss on its primary port?

A: The onboard network controller detects the drop in carrier frequency, marks the active port register as faulted, and shifts transceiving operations to the redundant B-channel connector within microseconds. This immediate switch ensures the node configuration remains active while updating the system diagnostic block with an unmasked cable fault.

Q: Can this 2.00 lbs LCN interface card be hot-swapped while the associated legacy node is actively running process monitoring loops?

A: No. Because this card manages critical address mapping and token serialization for non-integrated processors, removing it while the rack is powered will break the node loop. This action immediately stops all network communication for that node and can cause token rotation errors across the entire local area network segment.
