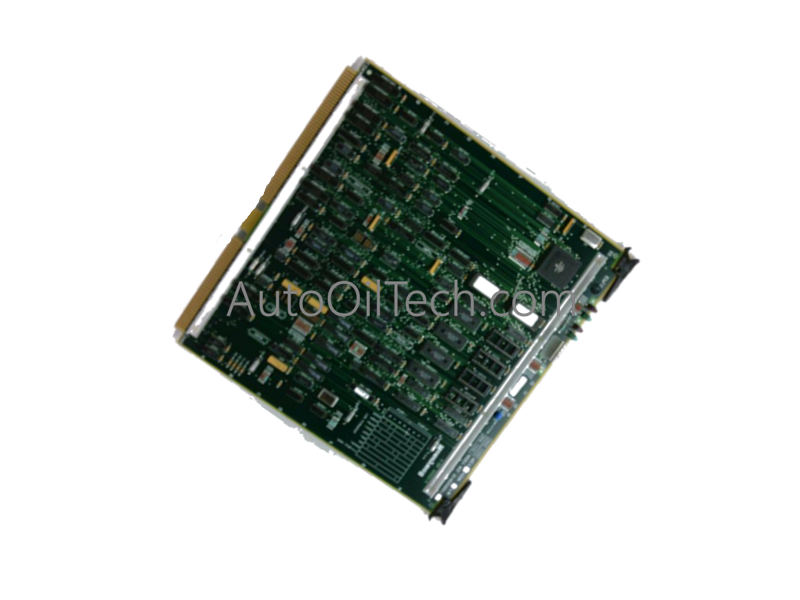

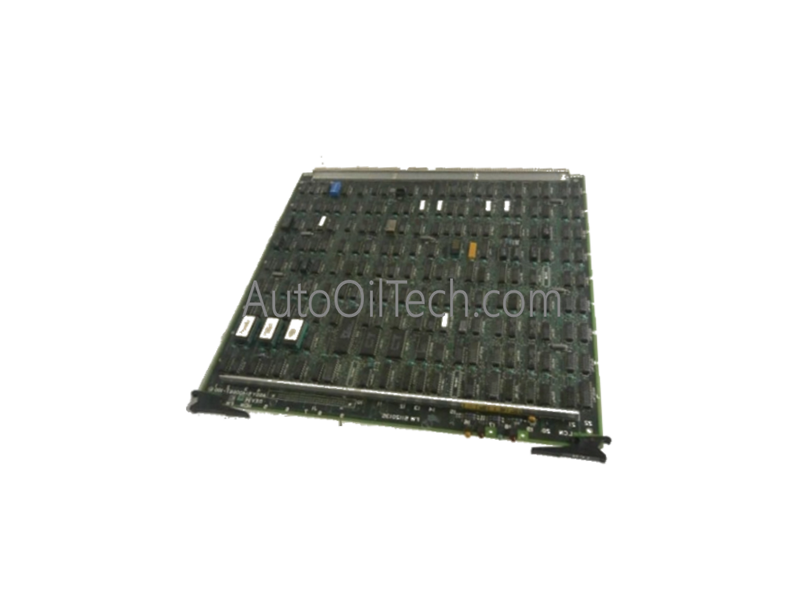

Honeywell 51400604-100 High-Input Analog Module

The Honeywell 51400604-100 operates as a dedicated hardware component for localized potential conversion and data acquisition within programmable logic controller (PLC) subracks. Configured for high-input analog density scaling, the compact card provides direct physical and electrical execution of analog signal registration. It transforms raw process variables natively at the input tier into logical registers readable by the central processing unit (CPU) stack parallel to master network cycles.

Hardware Specifications

Process Control & Signal Regulation

• 4-20 mA HART Loop Protocol Integration The 51400604-100 conditions incoming field variables using dedicated, onboard analog-to-digital converters (ADC). The high-input infrastructure supports multi-channel parallel sampling, reading physical process variables from connected transmitters and mapping the resolved registers straight into the local PLC data blocks with minimal hardware processing lag.
• Channel-to-Channel Isolation and Noise Suppression The internal circuitry uses optoelectronic barriers to establish channel-to-channel isolation limits across the signal pathways. This arrangement blocks high-voltage transients on the 120 VAC supply lines or field signal loops from breaking through the backplane bus, keeping core processing circuits protected from common-mode electrical disturbances over the full 32 to 122 deg F operating window.

Frequently Asked Questions

Q: What specific hardware symptoms occur if the 120 VAC primary supply frequency shifts outside the 60 Hz operational bound?

A: A major shift in input frequency disrupts the internal power rectification stage, triggering an onboard voltage fault flag. The module drops its channel OK status register bit, turns on a faceplate diagnostic indicator, and stops updating its analog register table to protect connected logic loops from corrupt field data.

Q: Can this 51400604-100 analog input card be hot-swapped while the primary PLC chassis is energized and running active control logic?

A: No. Because this module uses a direct 120 VAC power connection, extracting or inserting the card while live can cause electrical arcing across the terminal contacts. This can damage internal logic gates, generate electrical transients on adjacent backplane slots, or cause an unexpected PLC CPU fault state.
