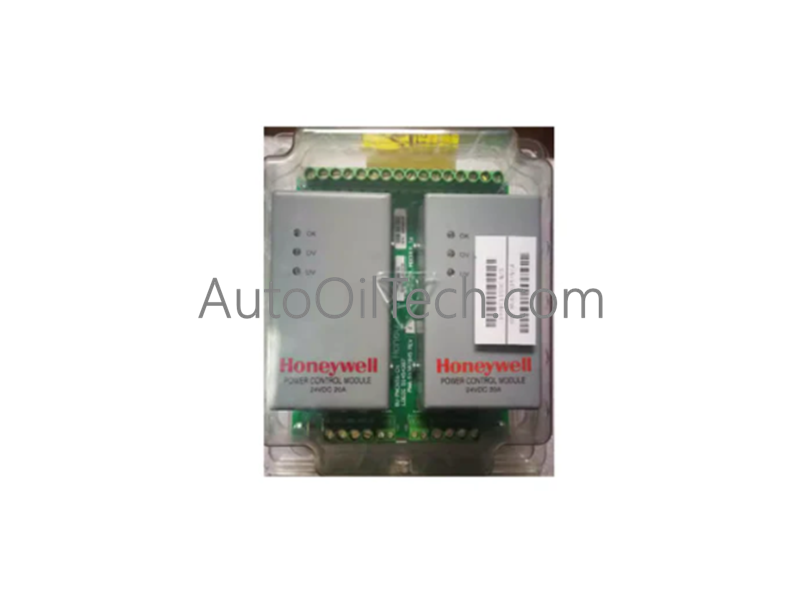

Honeywell 51307038-100 Power Control Module

Configured for power distribution in Honeywell Experion PKS and TDC platforms, the Honeywell 51307038-100 (51307038-100 Power Control Module) provides direct physical/electrical execution of voltage regulation and load management for controllers and I/O assemblies.

Hardware Specifications

DCS Process Control Characteristics

• 4-20 mA HART loop protocol: The power control module is designed to maintain a stable 24 VDC bus, which is necessary for the continuous operation of 4-20 mA HART instrumentation loops. It ensures that voltage ripples do not introduce errors in the HART digital communication overlays.
• FOUNDATION Fieldbus / Profibus PA connectivity: By providing a regulated power source, the module supports the stable operation of FOUNDATION Fieldbus and Profibus PA power conditioners. This ensures that the physical layer integrity of the fieldbus segments remains within specified limits.
• Channel-to-channel isolation: The module incorporates isolation features to prevent noise generated by high-power consumption modules from propagating back through the 24 VDC bus to sensitive control processors.
• Cold junction compensation (CJC): The stability of the 24 VDC supply provided by this module ensures that CJC hardware on thermocouple input cards operates within the required voltage tolerance, preventing drift in measured process temperatures.

Frequently Asked Questions

Q: Does the 51307038-100 module support hot-swapping under full load?

A: Yes, the module is designed for hot-swapping within the Honeywell Experion PKS/TDC racks. However, ensure that the redundant power configuration is verified and that the chassis backplane is in a healthy state before extracting the module to avoid transient dips on the 24 VDC bus.

Q: Is this module compatible with all Experion PKS rack power architectures?

A: The 51307038-100 is specific to certain hardware revisions within the Honeywell ecosystem. Verify the backplane part number and power requirements of your existing I/O cards to ensure compatibility before installation.

Field Installation Guidelines

• Mounting: Slide the module into the designated slot in the rack assembly until the backplane connector is fully engaged. Secure the module using the integrated front-panel locking mechanism to prevent vibration-induced disconnection.
• Grounding: Ensure the power control rack is bonded to the common system ground grid using a high-gauge, low-impedance copper cable. This is mandatory for the effectiveness of the module’s internal surge suppression and to protect against electromagnetic interference (EMI).
• Wiring: Maintain strict separation between the 24 VDC distribution wiring and high-voltage AC cabling. Use shielded wiring for I/O loop power to minimize inductive noise pickup that can interfere with the precision of analog signals processed by the downstream controller modules.
