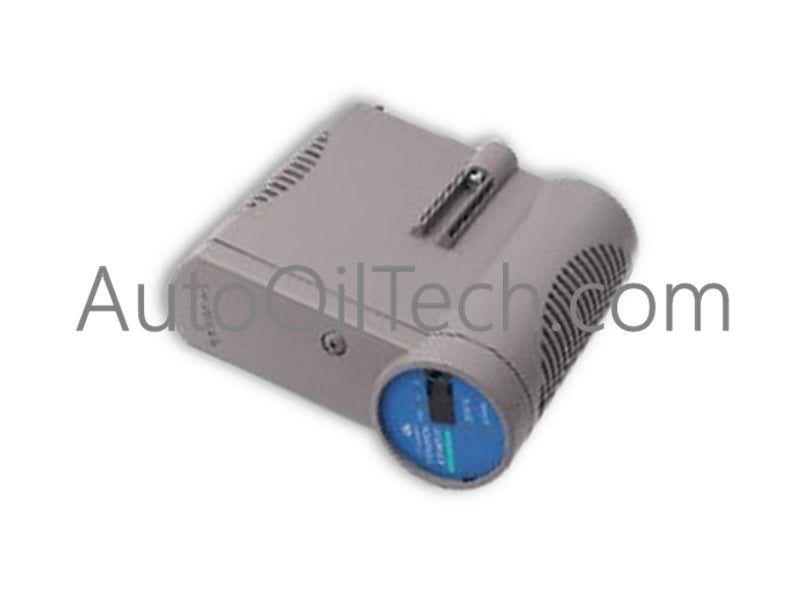

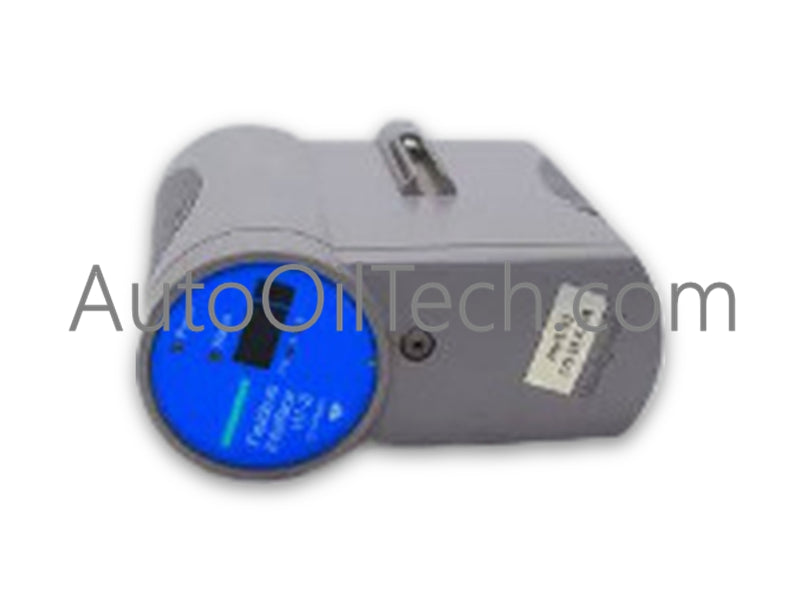

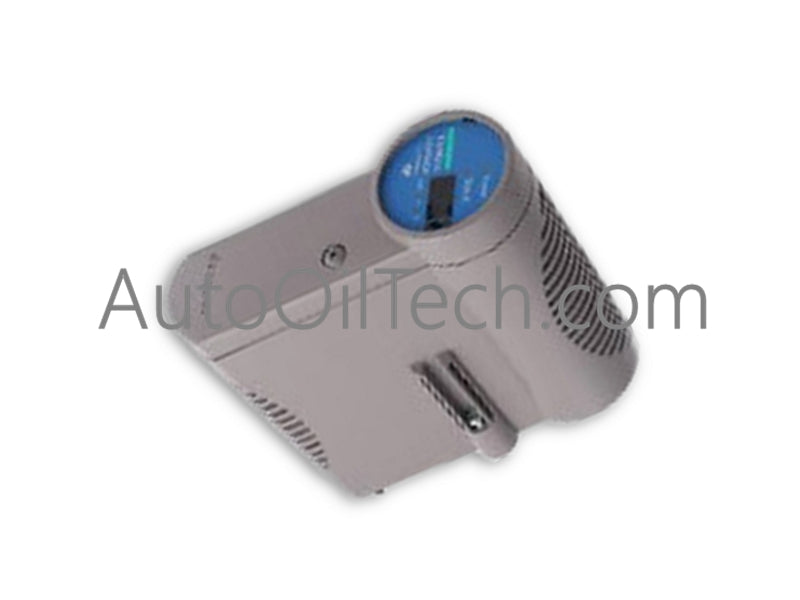

Honeywell 51306652-100 Experion PKS Controller Processor Module

The Honeywell 51306652-100, also cataloged as the 51306652-100 Controller Processor Module, operates as a dedicated hardware component for real-time process control and data management within Honeywell Experion PKS systems.

Hardware Specifications

4-20 mA HART Loop Protocol and Channel-to-Channel Isolation

• Channel-to-Channel Isolation: Suppresses transient ground potential variances across dual redundant I/O Highway ports to maintain deterministic control loop execution under harsh electrical conditions.
• 4-20 mA HART Loop Protocol: Processes continuous multi-channel field variable data and HART diagnostic packets transferred from downstream field termination assemblies (FTAs) across the I/O bus network.
• Redundant Control System Execution: Supports dual-processor hot-standby redundancy topologies, enabling bump-free failover execution to preserve process continuity during primary controller faults.

Frequently Asked Questions

Q: What power input and thermal dissipation metrics apply to the 51306652-100 processor?

A: The module operates from a 24 VDC (+/-10%) supply voltage and consumes a typical thermal and electrical load of 15 W.

Q: What network speeds and interface configurations are supported on the I/O Highway ports?

A: The processor features dual redundant I/O Highway communication ports with field-selectable data rates of 1.2 Mbps or 4 Mbps.

Q: What protection and diagnostic features are integrated into the 51306652-100 module?

A: The module incorporates built-in diagnostic routines with front-panel LED status indicators for power, overall module status, system fault, and network activity, backed by a mean time between failures (MTBF) exceeding 120,000 hours.

Field Installation Guidelines

• Rack and DIN Rail Installation: Mount the IP20 module chassis securely on a 35 mm DIN rail or designated rack slot inside a protected enclosure, verifying top and bottom locking pins engage fully.
• Power Line Filtering: Connect incoming 24 VDC power through clean, fused supply lines, verifying line stability remains within the 21.6 VDC to 26.4 VDC operating boundary.
• I/O Highway Cabling Practice: Route dual redundant I/O Highway cables in separate wire channels to preserve physical path diversity and insulate communication lines from inductive noise.
• Chassis Earth Grounding: Bond the controller mounting rail or chassis frame directly to the cabinet instrument protective earth (PE) bus using a low-impedance copper strap to optimize noise immunity.
