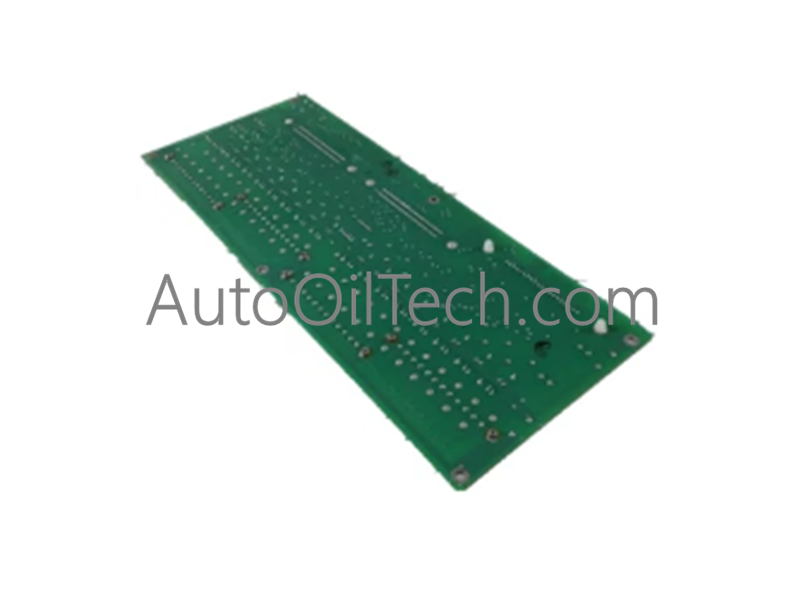

Honeywell 51305887-150 Analog Input

Configured for analog-to-digital signal conversion in distributed control network architectures, the Honeywell 51305887-150 (51305887 Analog Input Module) provides direct electrical execution of field variable ingestion and Ethernet transmission.

Hardware Specifications

Process Control Signal Integration and Isolation Architecture

• The module executes digital transmission of sensor data via the 4-20 mA HART loop protocol overlay, bridging remote transmitter parameters to the central logic controller.
• Physical galvanic separation is implemented to maintain a 500 V input-to-output isolation threshold, preventing ground loop propagation across the distributed control system backplane.
• Redundant input configuration support dictates fail-over state execution, allowing continuous process monitoring without interrupting ongoing Ethernet polling cycles.

Frequently Asked Questions

Q: What is the backplane communication standard utilized by the 51305887-150 hardware?

A: The module relies on the standard Ethernet protocol to transmit the digitized 12-bit analog data to the main CPU processors.

Q: Can this hardware component operate in a fault-tolerant configuration?

A: Yes, the 51305887-150 supports redundant input architectures, permitting dual-module pairing to sustain continuous data polling during a single-path hardware failure.

Q: How does the unit process signal electrical transients?

A: It integrates 500 V input-to-output isolation hardware boundaries, shielding the logic circuits and the primary power bus from field-side electrical surges.

Field Installation Guidelines

• Mount the chassis securely to the designated panel footprint, ensuring structural stability to limit low-frequency mechanical vibration.
• Terminate field wiring using the torque specifications dictated by the termination block manual. Shielded twisted-pair cables must be grounded at a single point to suppress electromagnetic interference (EMI).
• Adhere strictly to the defined operating envelope of -20 to 60 deg C ambient. Ensure standard spatial clearance between adjacent rack components to permit passive convective thermal dissipation.
• Verify the 24 VDC power supply voltage output at the physical terminals prior to inserting the analog module into the receiving slot to avoid over-voltage logic
