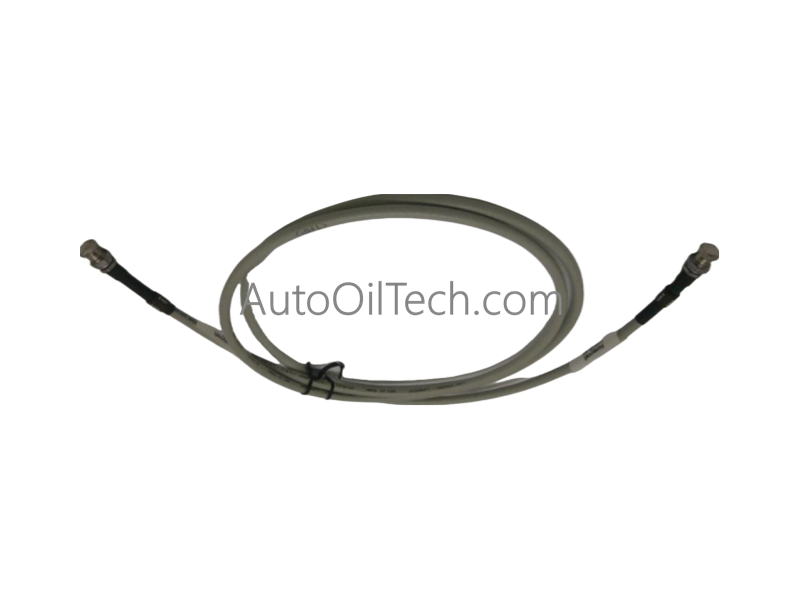

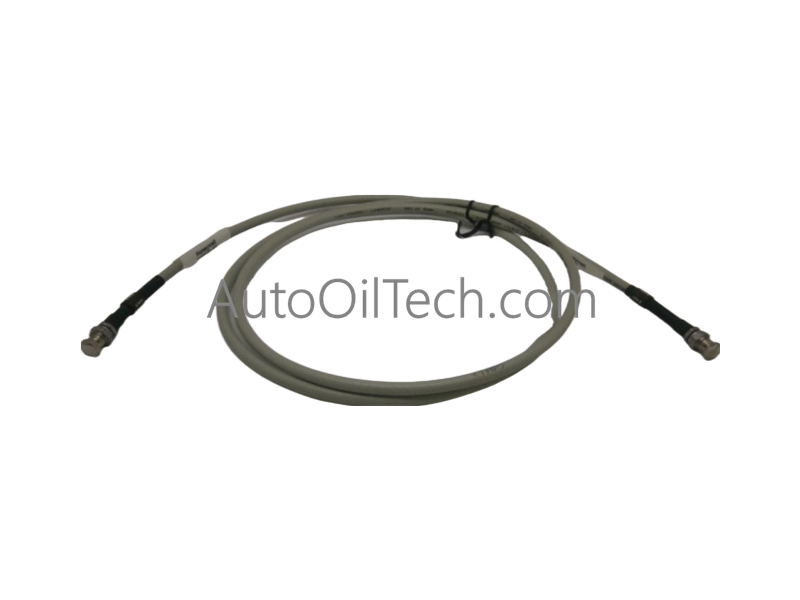

Honeywell 51305742-100 Shielded Twisted Pair Cable

The Honeywell 51305742-100, also cataloged as the 51305742 Shielded Twisted Pair Cable, operates as a dedicated hardware component for high-density data transmission and signal integrity within TDC 3000 / Experion PKS automation networks. The rugged multi-conductor link establishes a direct electrical pathway to route field-side instrumentation signals into centralized processing racks.

Hardware Specifications

Process Control & DCS Instrumentation Interface

• 4-20 mA HART Loop Protocol System Segmentation The cable assembly handles high-density data processing configurations by using a balanced shielded twisted pair layout. This geometric configuration cancels out electromagnetic noise patterns natively along the transmission path, ensuring that digital data packets or analog current variations remain uncorrupted by parallel 4-20 mA HART loop protocol field wiring grids or high-voltage power lines running adjacent to the assembly.
• Channel-to-Channel Isolation Control Support The physical architecture wraps the internal copper conductors in a continuous foil shield, creating a low-impedance barrier against high-frequency interference. This shielding containment prevents cross-talk and minimizes phase-to-ground capacitive coupling, reinforcing the channel-to-channel isolation circuits built into connected analog input modules or host network gateway cards.

Frequently Asked Questions

Q: What technical advantages does the 600 V insulation rating provide in a low-voltage instrumentation loop?

A: The heavy-duty 600 V dielectric boundary ensures that the cable can be routed safely inside shared industrial wireways without risking an insulation breakdown or a hazardous short circuit if it accidentally comes into physical contact with adjacent high-voltage power lines or AC branches.

Q: Can this PVC-jacketed cable be deployed in outdoor trays without secondary conduit protection?

A: No, standard industrial PVC formulations are optimized for indoor control cabinets and protected interior wireways. For outdoor deployments, the cable must be routed inside rigid, sealed metal conduit to protect the outer jacket from UV degradation, extreme thermal cycling, and chemical exposure.
