Honeywell 51305348-100 MAU PWB Assembly LCN Media Adapter

Honeywell 51305348-100 MAU PWB Assembly LCN Media Adapter

The Honeywell 51305348-100 serves as the primary MAU (Media Adapter Unit) PWB assembly utilized to execute local control network physical layer interface signals across Honeywell TDC 3000 and Experion PKS platforms.

Hardware Specifications

Channel Isolation and Process Interface Features

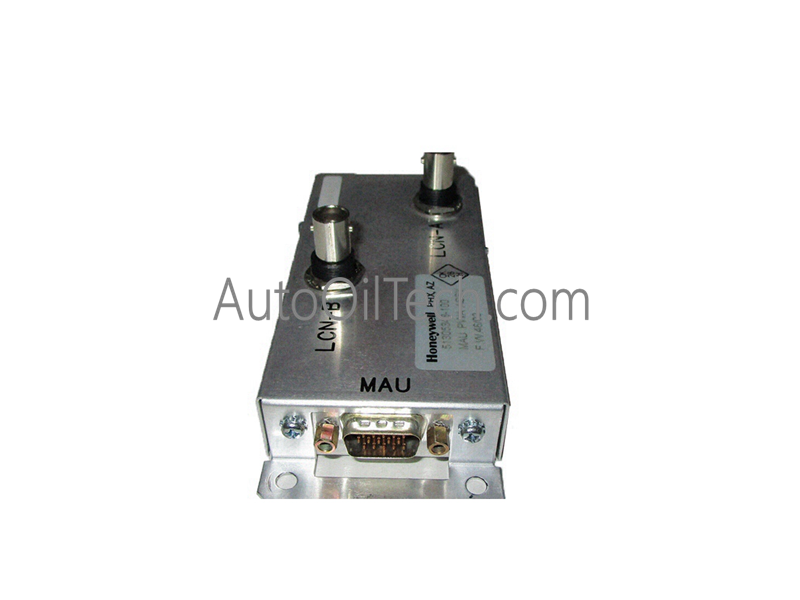

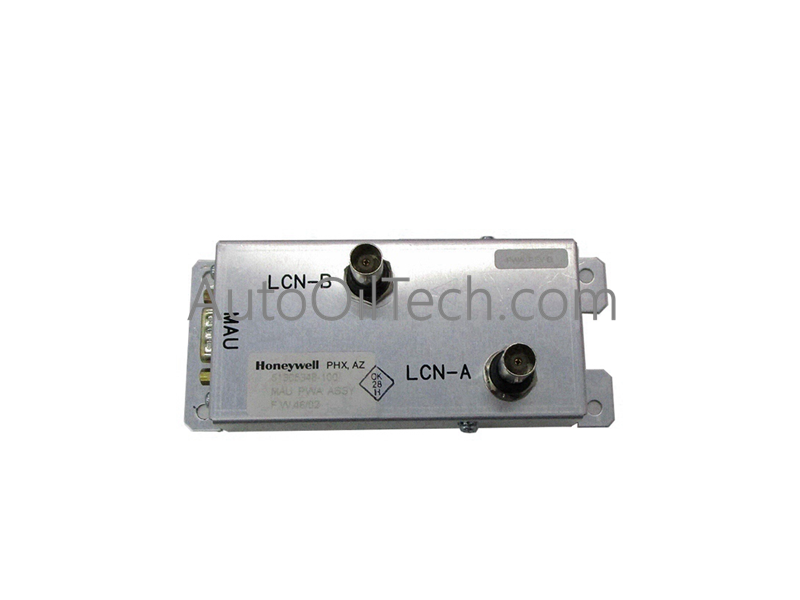

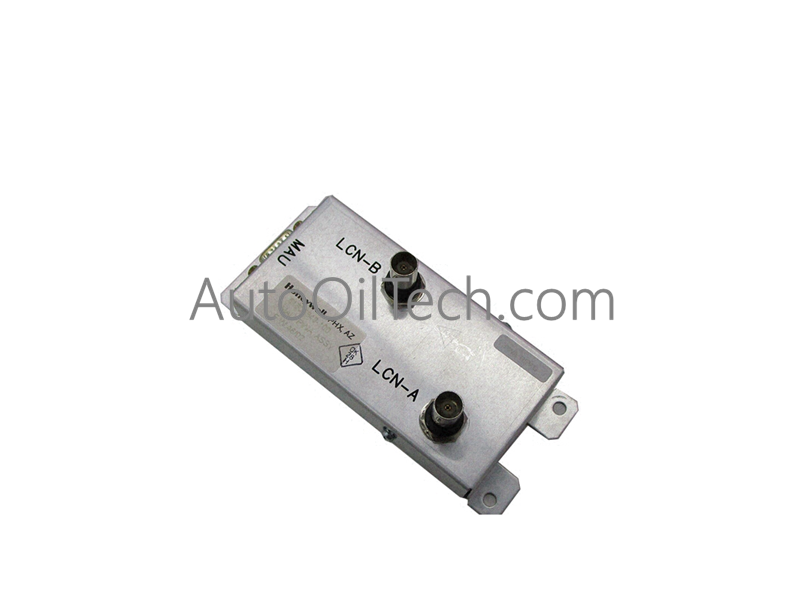

The Honeywell 51305348-100 media adapter provides direct physical network coupling between local station electronics and dual LCN "A" and "B" coaxial trunk lines. The aluminum housing provides shielding against high-frequency electromagnetic field emissions while maintaining high channel-to-channel isolation across differential transceiver loops. Integrated high-density transceiver circuits enforce low-latency packet forwarding and signal conditioning for 4-20 mA HART diagnostic monitoring modules operating within the same DCS communication subnet.

Frequently Asked Questions

Q: Why is aluminum specified for the enclosure of the 51305348-100 media adapter instead of standard plated steel?

A: The solid aluminum housing eliminates zinc whisker growth that occurred on legacy steel adapter casings, preventing signal noise and short circuit failures across internal circuit board traces.

Q: What operational thermal limit should be observed during panel diagnostic checks?

A: Under standard ambient temperatures around 24 deg C (75 deg F), the outer aluminum housing of the adapter assembly should not exceed 50 deg C (122 deg F) during active network processing.

Field Installation Guidelines

• Verify that cabinet mounting spaces remain within the operating thermal limits of -40 to 100 deg C prior to securing the adapter.
• Secure the 51305348-100 casing directly to panel grounded metal surfaces to establish a direct low-impedance path for shield currents.
• Attach LCN "A" and LCN "B" coaxial trunk cables to the designated BNC connector ports, verifying that locking bayonets are fully twisted and latched.
• Ensure all network drop cables are routed with minimum bending radii to prevent impedance mismatch and physical degradation of internal conductors.
• Power up the host node and check that network diagnostic LEDs on the connected station interface indicate active LCN bus communication.
