Honeywell 51304640-125 Experion Series C I/O Module

In stock!
  • Part Number: 51304640-125
  • Brand: Honeywell
  • Type: Mixed I/O Modules
  • Dimensions: 7x14x14.5cm
  • Country of Origin: USA
  • Barcode: 8537101190

Additional Specifications

Color / Pattern
  • Green
  • Gray
Power Source
  • DC-powered
Communication Protocols
  • Ethernet
Controller Design
  • Compact
Tags: Honeywell Experion PKS , Mixed I/O Modules

Product Description

Configured for high-speed signal processing in Experion PKS architectures, the Honeywell 51304640-125 (51304640 I/O Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

  • 51304640: Base catalog designation for the high-density mixed I/O hardware platform.
  • -125: Specific hardware revision code denoting 16-channel analog and 16-channel digital field signal processing capability.

Hardware Specifications

Parameter Specification
Model 51304640-125
Brand Honeywell
Origin USA
Weight 300 g (0.30 kg)
Dimensions 120 mm x 80 mm x 40 mm
Operating Temp -40 to 70 deg C
Power Consumption 3.5 W typical, 5 W max
Input Voltage Range 24 VDC (+/-10%)
Analog Input Channels 16 channels (configurable for 4-20 mA, 0-10 V)
Digital I/O Channels 16 channels (24 VDC sinking/sourcing)
Isolation Voltage 1500 VAC channel-to-ground
Signal Response Time Less than 1 ms (digital), less than 10 ms (analog)
System Architecture Series C I/O / Experion PKS

Process Control and Channel Isolation Properties

  • 4-20 mA HART Loop Protocol Integration: Supports direct acquisition of standard 4-20 mA current signals alongside 0-10 V voltage inputs to facilitate analog transmitter integration.
  • Galvanic Channel-to-Ground Isolation: Maintains a 1500 VAC dielectric isolation barrier between field channels and internal backplane logic to isolate ground loops and field surges.
  • Fieldbus Network Connectivity: Integrates into distributed DCS structures through FOUNDATION Fieldbus or PROFIBUS DP communication interfaces for field bus network management.

Frequently Asked Questions

Q: Does the 51304640-125 module support hot-swapping during live system operation?

A: Yes, the unit is hot-swappable, allowing module removal and insertion into an energized Series C I/O rack without interrupting overall system operation.

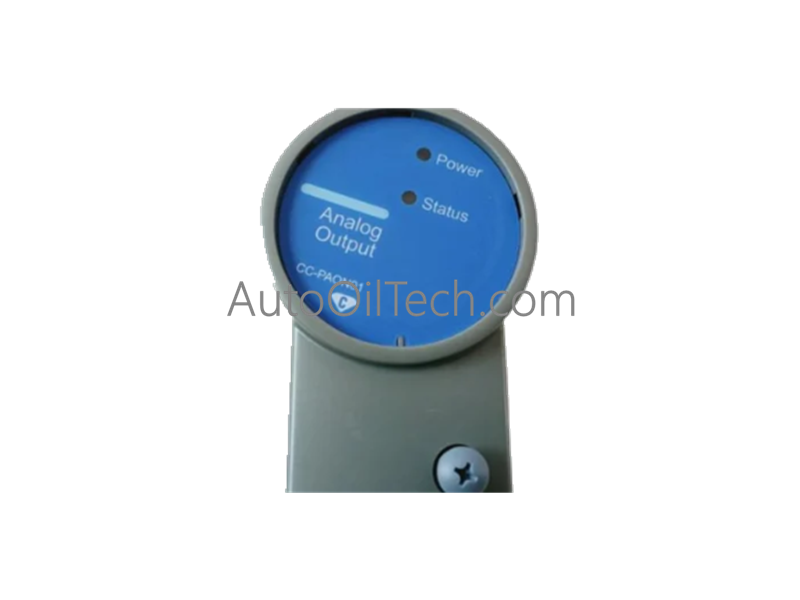

Q: What are the primary status indicators provided on the front interface?

A: Diagnostic LED indicators are integrated into the front housing to provide visual status feedback for active channel communication, power delivery, and hardware fault conditions.

Q: Can digital channels be wired in both sinking and sourcing field configurations?

A: Yes, all 16 discrete 24 VDC I/O channels are software-configurable to accommodate either sinking or sourcing field device circuits.

Field Installation Guidelines

  1. Mount the module chassis securely onto standard DIN rail or enclosure panel mounting slots, ensuring locking tab engagement.
  2. Verify that field signal wiring maintains a 1500 VAC isolation boundary from local earth ground before connecting terminal blocks.
  3. Keep field analog and digital cable bundles separated from high-voltage AC power cables by at least 300 mm within cabinet wireways.
  4. Connect all cable shield drain wires to a central earth grounding point on the main enclosure earth bar to suppress external EMI/RFI noise.
