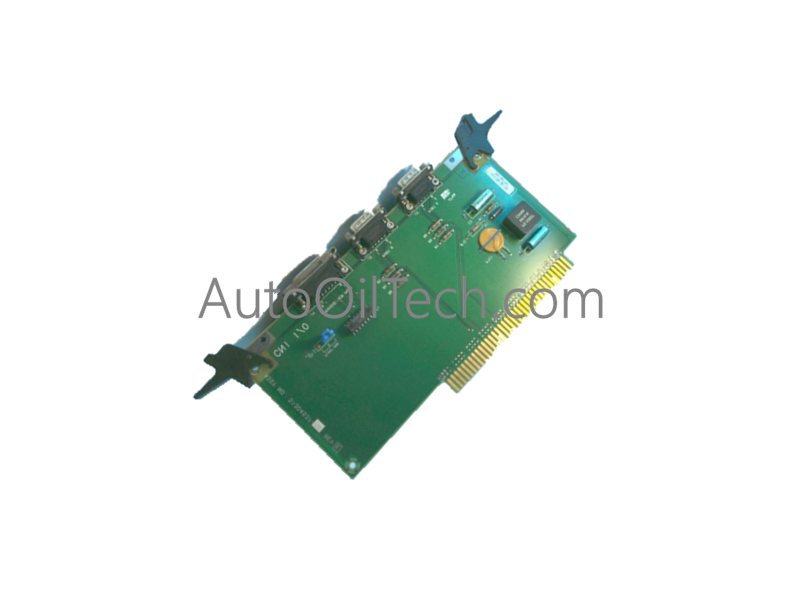

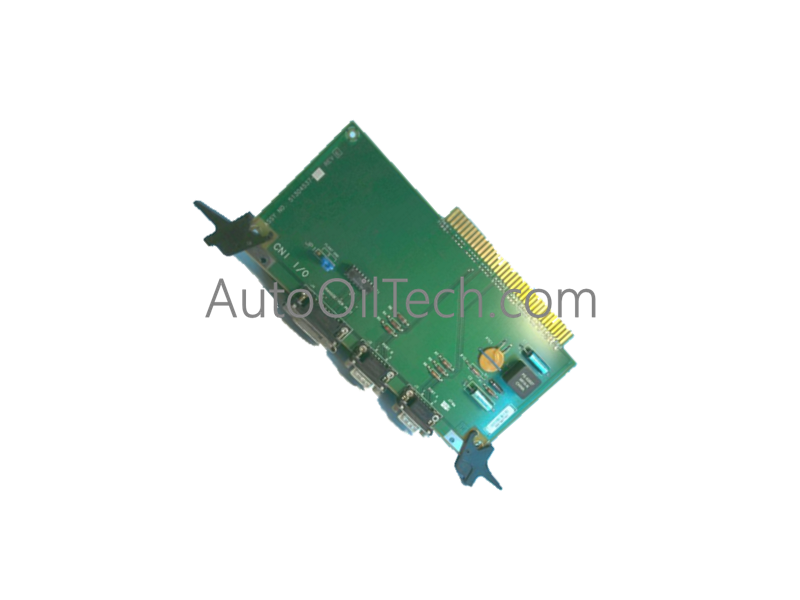

Honeywell 51304537-100 PWB CNI I/O Board

The Honeywell 51304537-100, also cataloged as the 51304537-100 VDC Logic I/O Module, operates as a dedicated hardware component for communication network interfacing and logic signal processing within Honeywell control system architectures.

Suffix Breakdown & Model Matrix

Hardware Specifications

Process Control and DCS Characteristics

• 4-20 mA HART loop protocol: The board facilitates signal path integrity for analog loop data, ensuring that communication signals between the CNI interface and downstream field instrumentation remain within valid operational parameters.
• FOUNDATION Fieldbus / Profibus PA connectivity: The architecture supports the interface requirements for deterministic network segments, providing the necessary buffering for high-speed fieldbus data transfer.
• Channel-to-channel isolation: The PCB layout incorporates galvanic isolation techniques to protect the logic circuits from transients and common-mode noise present on the communication or I/O lines.
• Cold junction compensation (CJC): The module is designed to maintain thermal stability across the circuit board assembly, preventing measurement drift when the board is used in proximity to sensitive analog input channels.

Frequently Asked Questions

Q: Is this board field-repairable at the component level?

A: No. The 51304537-100 is a factory-calibrated printed wiring board (PWB) assembly. Attempting to replace individual components can compromise the integrity of the communication logic and invalidate the board’s operational certification.

Q: How does this board interface with the control system backplane?

A: The board connects directly into the designated I/O rack slot. Ensure that the backplane connector is clean and free of oxidation before insertion to prevent communication errors or high-resistance faults.

Field Installation Guidelines

• Mounting: Carefully align the PWB with the rack guides and seat it into the backplane connector. Secure the module using the board’s locking ejector levers to ensure a firm, vibration-resistant connection.
• Grounding: Ensure the rack assembly is securely bonded to the cabinet's protective earth (PE) bus. The board relies on a common ground plane for signal reference; improper grounding may lead to intermittent communication failures.
• Wiring: Maintain clear separation between the CNI communication cables and high-power conductors. Use shielded cabling for all I/O connections to mitigate electromagnetic interference and ensure the stability of the logic level transitions.
