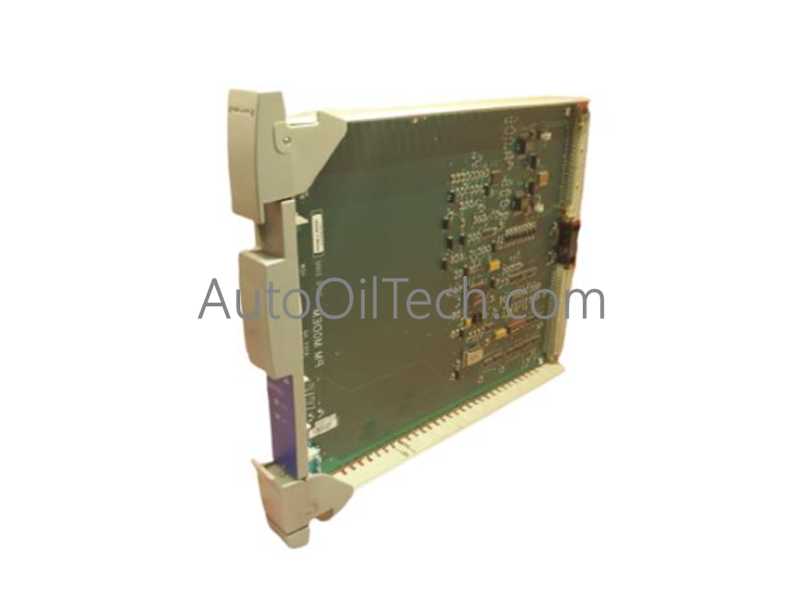

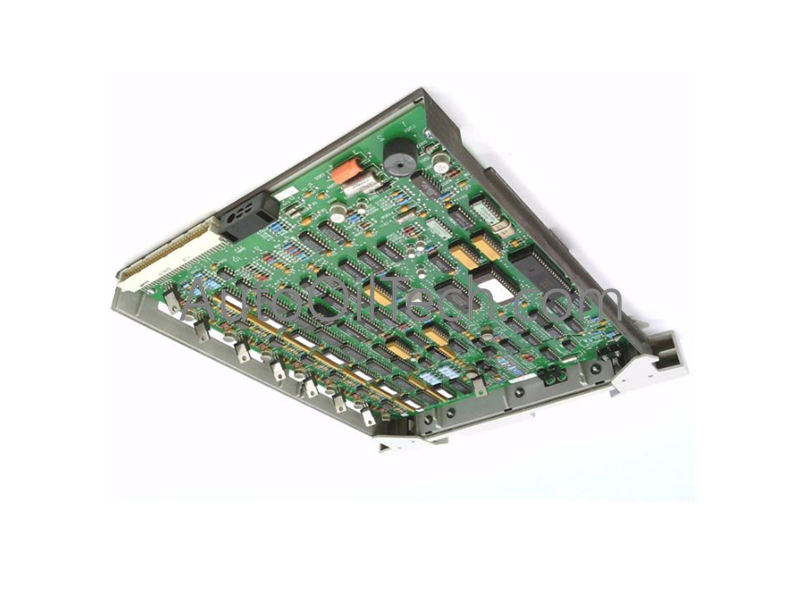

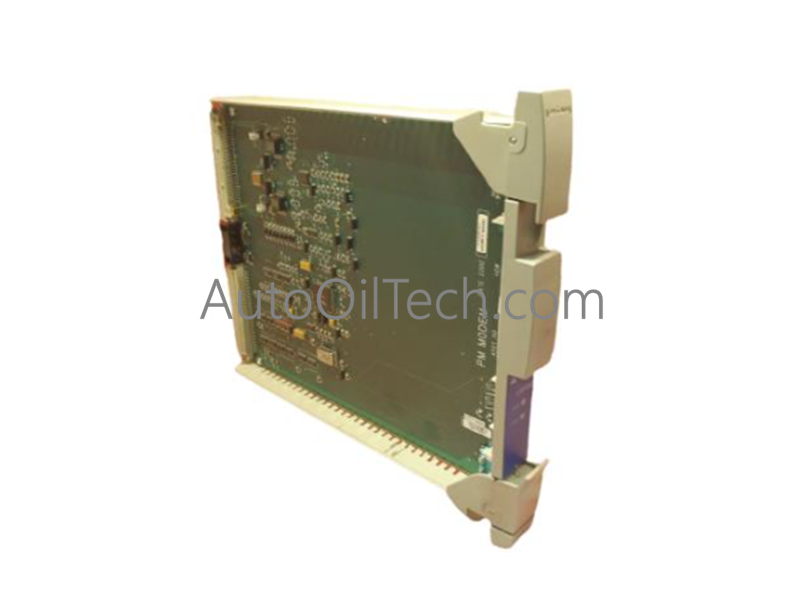

Honeywell 51304493-250 Advanced Process Manager Modem Card

The Honeywell 51304493-250, also cataloged as the 51304493-250 Advanced Process Manager Modem Card, operates as a dedicated hardware component for continuous data serialization, network clock synchronization, and node-to-node transceiver interfacing within Honeywell Advanced Process Manager (APM) and TDC 3000 architectures. The conformally coated solid-state printed circuit board assembly handles physical communication signal modulation natively at the hardware tier to maintain stable data frame transmission across the local industrial network bus.

Hardware Specifications

Process Control & DCS Instrumentation Rails

• Channel-to-Channel Isolation and Carrier Modulation The modem board implements internal physical dielectric isolation barriers across its network interface boundaries. This hardware routing structure blocks high-voltage transient spikes, ground loops, and electrical switching noise from entering the processor core, ensuring clean signal modulation and minimizing frame error distribution across the distributed control system (DCS) data highway.
• 4-20 mA HART Loop Protocol Network Coexistence While the modem card executes high-velocity carrier modulation strictly for master control node communication, it operates concurrently inside racks managing high-density 4-20 mA HART loop protocol lines. Onboard filter networks and shielded circuit layouts isolate the high-frequency network packets, preventing electrical cross-talk from corrupting adjacent low-level analog current measurements.

Frequently Asked Questions

Q: How does the integrated conformal coating layer preserve the module circuitry over long runtime cycles?

A: The printed circuit board assembly is completely sealed with a specialized plastic compound that isolates the microelectronic components from ambient atmosphere. This physical barrier prevents moisture pooling and chemical gas corrosion from creating parasitic resistance bridges or copper trace degradation under continuous industrial plant runtime.

Q: How does the Process Manager Modem Card maintain network node synchronization during a temporary bus voltage fluctuation?

A: The card incorporates an independent hardware-level clock recovery and filtering network. If the incoming carrier signal encounters phase noise or a momentary amplitude drop, internal phase-locked loop (PLL) tracking sub-assemblies bridge the data gap, maintaining stable node tracking within the network register database.
