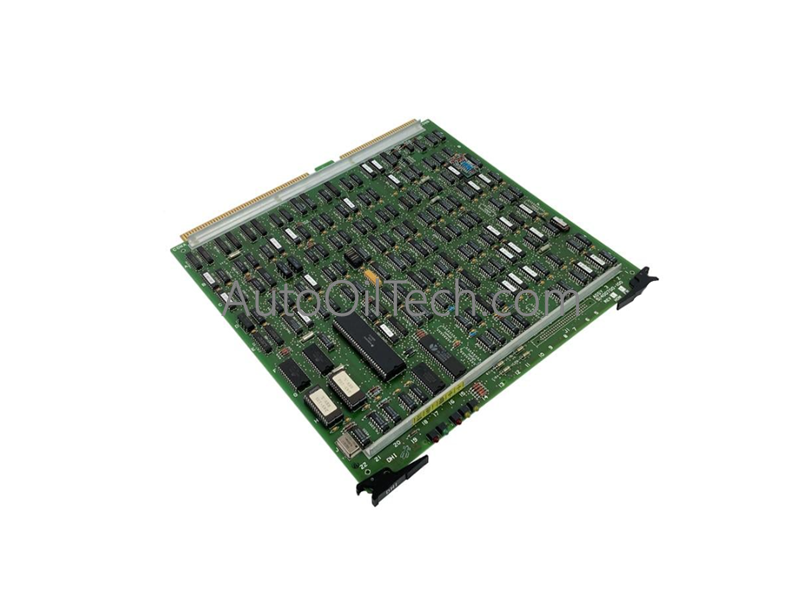

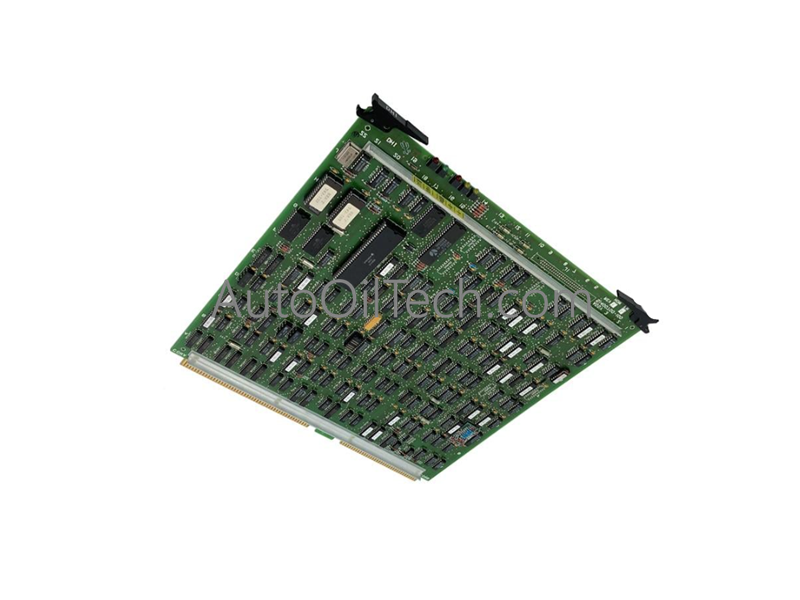

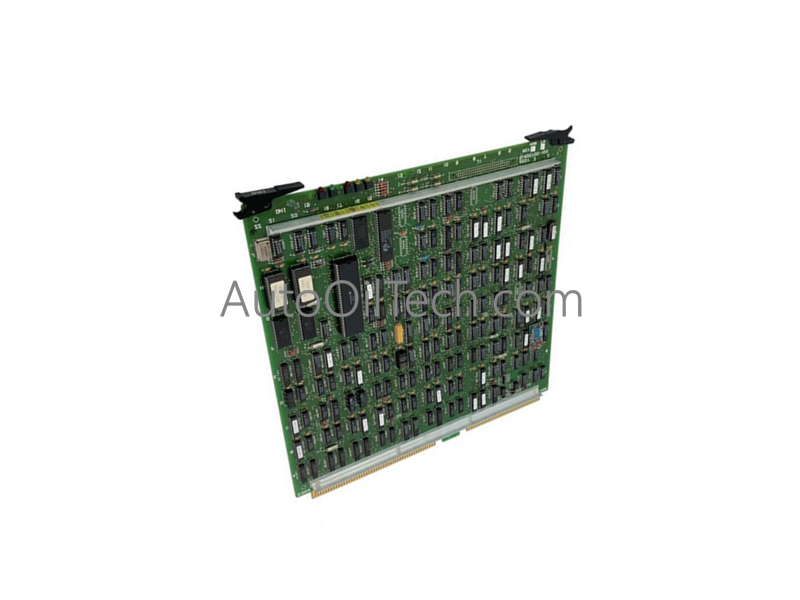

Honeywell 51304386-150 Pulse Input Processor

The Honeywell 51304386-150, also cataloged as the MC-PPIX02 Pulse Input Processor, operates as a dedicated hardware component for pulse signal measurement and data processing within distributed control systems.

Suffix Breakdown & Model Matrix

The unit designation differentiates the CE-compliant part number 51304386-150 from the base module identifier MC-PPIX02, denoting an 8-input pulse input processor configuration featuring conformal coating for enhanced environmental protection.

Hardware Specifications

Channel-to-Channel Isolation and HART Loop Interfacing

The processor manages multi-channel pulse input trains while maintaining strict electrical separation to suppress transient noise and common-mode voltage propagation across measurement loops. Circuitry design supports standard control network communication interfaces and signal scaling parameters, ensuring high-frequency pulse acquisition without signal distortion or ground loop interference.

Frequently Asked Questions

Q: What are the live replacement constraints when servicing the MC-PPIX02 processor in an active rack? A: Hot-swapping requires local slot power to be stable and standard electrostatic discharge safeguards to be observed, with the specific channel address placed into maintenance mode prior to module extraction.

Q: How does the conformal coating protect the assembly against corrosive environments? A: The circuit boards are completely covered with a thin layer of specialized plastic material resistant to humidity and most corrosive chemical gases.

Q: How many active input channels does the processor support simultaneously? A: The hardware processes up to 8 independent pulse input points concurrently.

Field Installation Guidelines

Secure the processor module firmly into the designated chassis slot, ensuring full backplane connector engagement and tightening all retention fasteners. Route all pulse signal cables separately from high-voltage power mains and variable frequency drive lines, terminating cable shields strictly at the cabinet ground bus.
