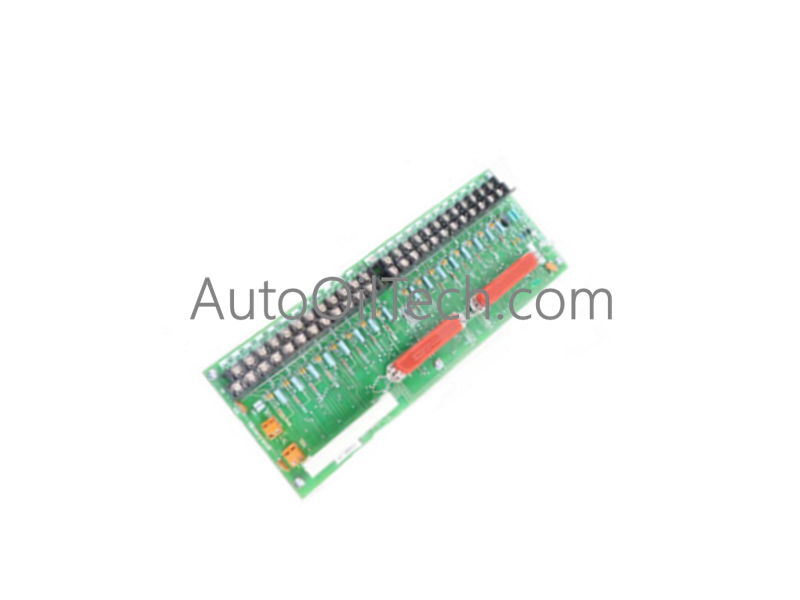

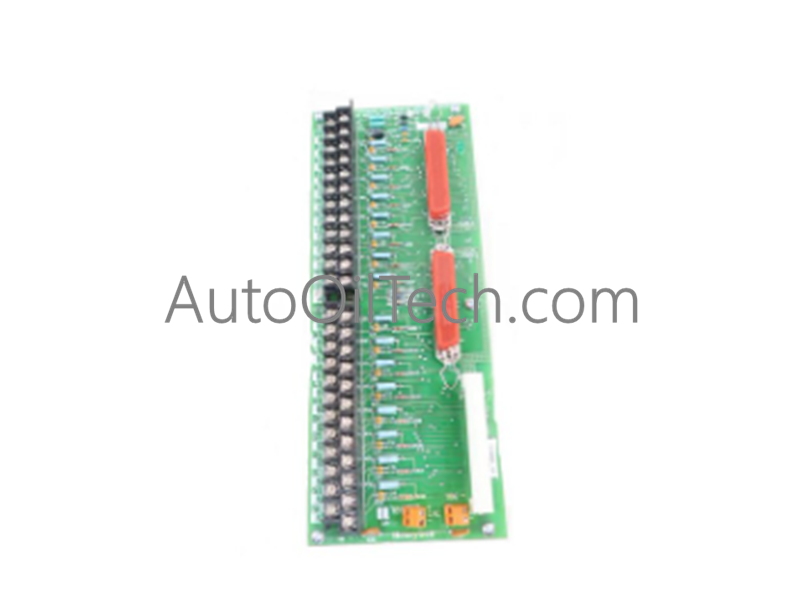

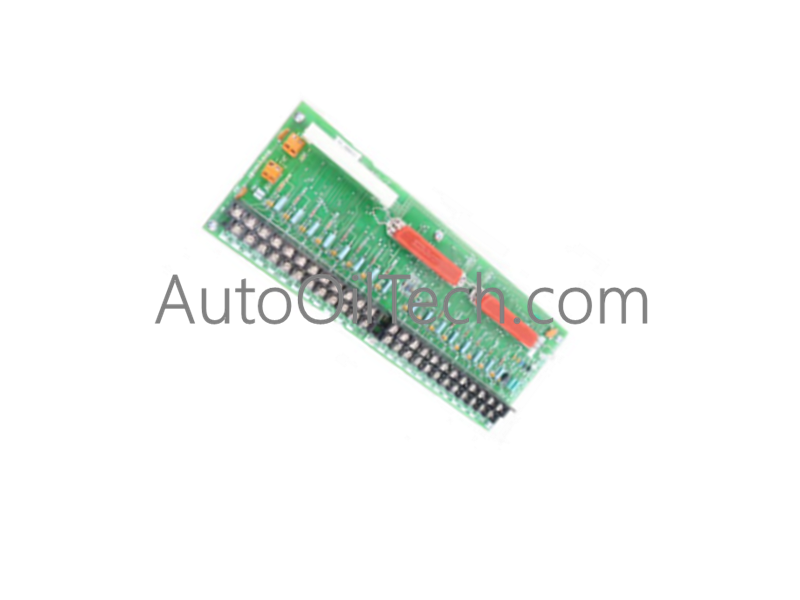

The Honeywell 51304337-150, also cataloged as the 51304337-150 Analog Input Termination Board, operates as a dedicated hardware component for signal processing and termination within distributed control systems.
Suffix Breakdown & Model Matrix
The unit designation represents the manufacturer part number 51304337-150 for the analog input termination board configuration designed for industrial signal routing.
Hardware Specifications
Parameter
Specification
Model
51304337-150
Brand
Honeywell
Origin
USA / Global Manufacturing Facilities
Weight
Standard Termination Board Form Factor
Dimensions
30.7 cm x 12 cm x 8 cm
Operating Temp
0 deg C to 60 deg C
Power Consumption
Passive Termination Board
Input Types
Thermocouple, RTD, voltage, and current
Number of Channels
8
System Compatibility
Honeywell TDC 3000 and Experion PKS systems
Channel-to-Channel Isolation and HART Loop Interfacing
The termination board handles weak analog signals from field sensors while maintaining proper signal isolation and compatibility with standard 4-20 mA HART loop protocol architectures. The electrical layout conditions incoming signals from thermocouples, RTDs, voltage, and current sources to ensure accurate preparation for the control system without introducing ground loops.
Frequently Asked Questions
Q: What safety precautions are required when replacing the termination board in an active enclosure? A: Field wiring and connected loop power must be de-energized prior to terminal block disconnection or board replacement to prevent signal disruption or short circuits.
Q: How many channels does this termination assembly support? A: The board supports up to 8 independent analog input channels.
Q: Which control system platforms integrate with this hardware? A: The board is fully compatible with Honeywell TDC 3000 and Experion PKS systems.
Field Installation Guidelines
Mount the termination board securely inside a NEMA-rated industrial enclosure. Ensure all field wiring utilizes shielded twisted-pair cables, terminating shield drain wires exclusively at the designated cabinet grounding bar to suppress electromagnetic interference (EMI).
