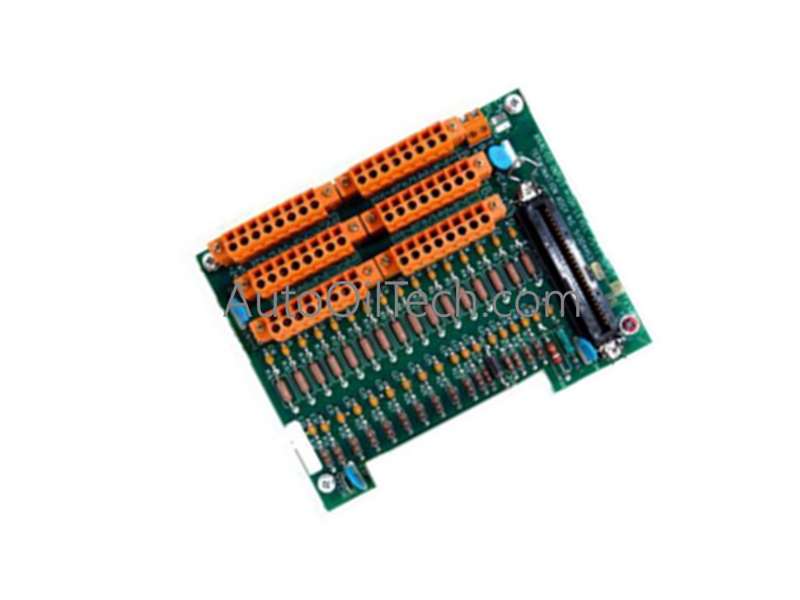

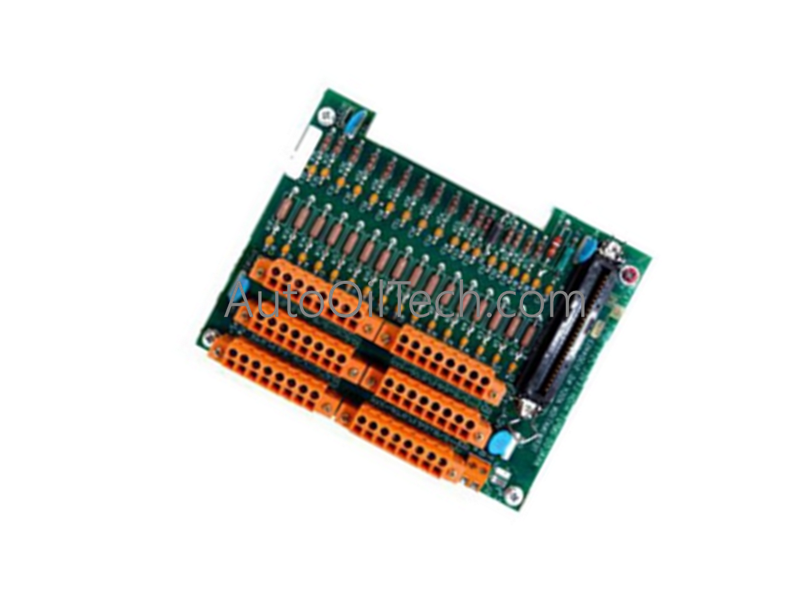

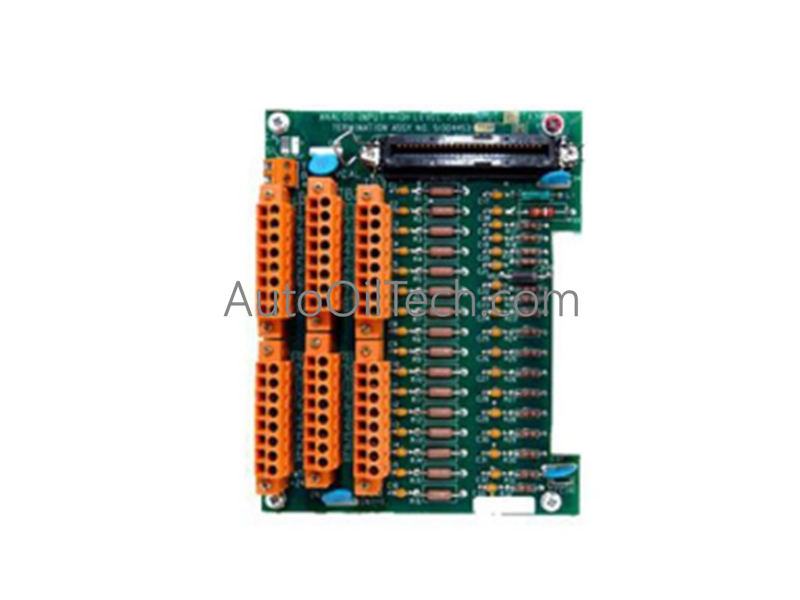

Honeywell 51304279-150 Analog Input Module

Configured for high-accuracy voltage signal measurement in TDC 3000, TPS, and Experion PKS platforms, the Honeywell 51304279-150 (51304279-150 High-Level Analog Input Module) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

The hardware is cataloged under the standard Honeywell system matrix, where the trailing suffix indicates specific conformal coating levels, hardware revision baselines, and compatibility parameters for designated termination assemblies in rack-mounted chassis layouts.

Hardware Specifications

Channel-to-Channel Isolation and HART Loop Interfacing

The module incorporates full channel-to-channel and channel-to-system electrical isolation to suppress ground loops and common-mode transients in complex industrial environments. Signal conditioning circuitry interfaces with field transmitters via compatible Termination Assemblies (TAs), supporting standard 4-20 mA HART loop protocol configurations and high-precision voltage conversions without requiring external cold junction compensation (CJC) blocks for standard voltage measurements.

Frequently Asked Questions

Q: What are the hot-swap constraints when replacing the 51304279-150 module in an active I/O rack?

A: The module supports live insertion and removal (hot-swapping) provided that backplane power is stable and standard electrostatic discharge (ESD) precautions are observed. The corresponding slot must be placed in offline maintenance mode via the engineering station prior to physical extraction.

Q: How does the module manage common-mode voltage and channel-to-channel interference?

A: Complete galvanic isolation between individual input channels prevents propagation of ground loops and common-mode voltage spikes across multi-channel data acquisition circuits.

Q: What is the required procedure for verifying input calibration ranges?

A: Calibration checks must be executed through the system configuration software by applying known reference voltages corresponding to the selected input range configuration (0-5 V, 1-5 V, 0-10 V, +/-5 V, or +/-10 V).

Field Installation Guidelines

Install the module into a designated Honeywell I/O chassis slot and secure it with module locking mechanisms. Connect field wiring exclusively through compatible Termination Assemblies (TAs). Ensure all analog signal cables utilize shielded twisted pairs, with cable shields grounded at a single designated cabinet grounding bar to mitigate electromagnetic interference (EMI).
