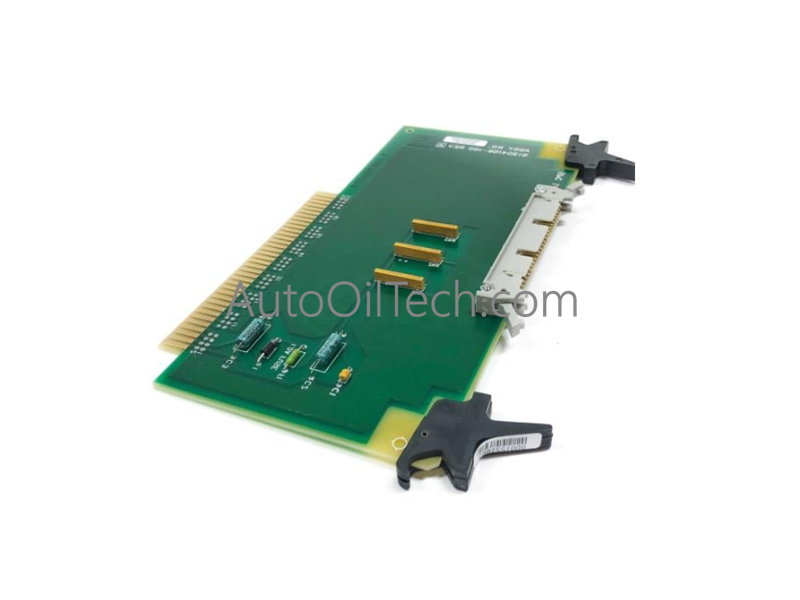

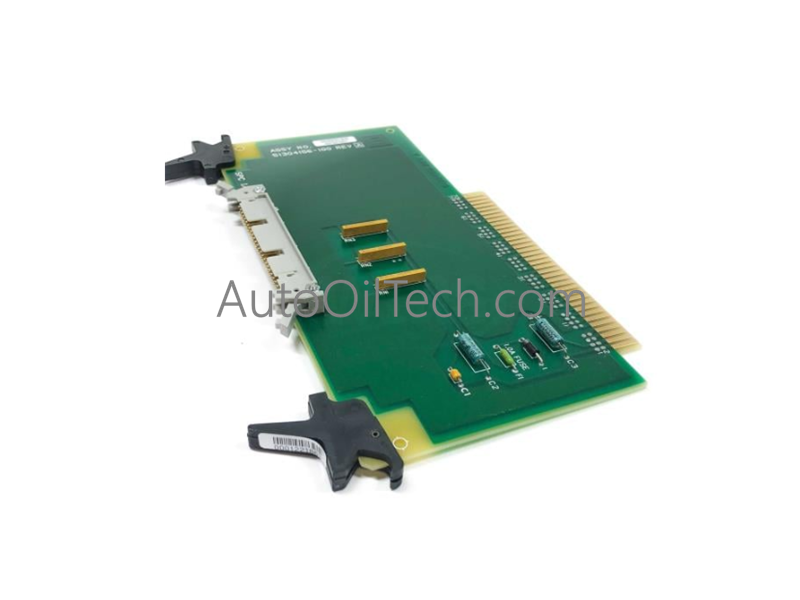

Honeywell 51304156-100 TDC 3000 50-Pin Paddle I/O Board

The Honeywell 51304156-100, also cataloged as the 51304156-100 Paddle I/O Board, operates as a dedicated hardware component for localized routing, ribbon cable matching, and high-density signal distribution within Honeywell TDC 3000 distributed control system (DCS) architectures. Configured in a compact paddle board format with a 50-pin interface array, the passive interconnect device provides direct physical execution to bridge human-machine interface (HMI) console subsystems or processing files to peripheral I/O tracks.

Hardware Specifications

Process Control & DCS Instrumentation Rails

• 4-20 mA HART Loop Protocol and Channel-to-Channel Isolation While this passive paddle card functions primarily as a digital/discrete 50-pin termination array for operator interface terminals or master control files, its structural track layout preserves circuit boundaries. The trace insulation parameters maintain signal separation, preventing localized field voltage surges from overriding host backplanes and shielding neighboring 4-20 mA HART loop networks from capacitive cross-talk.
• High-Density Data Termination and Signal Conversion Pathways The board features an optimized copper trace layout engineered to maintain uniform characteristic impedance across all fifty pins. This passive configuration supports clean signal conversion pathways, routing real-time process parameters, status markers, and operational commands directly to the host control system without injecting timing delays or noise into the communication matrices.

Frequently Asked Questions

Q: What is the primary operational purpose of the 51304156-100 50-pin paddle board configuration?

A: The module functions as a low-resistance, high-density connection interface that transforms multi-conductor ribbon cables into clean, organized termination pathways inside the TDC 3000 rack. It is typically deployed to clean up complex wiring layouts between the master controller files and the auxiliary HMI or operator interface terminal hardware.

Q: Can this paddle board be extracted or inserted while the underlying TDC 3000 file is actively energized?

A: No, the card must not be hot-swapped while the system is powered. Pulling or forcing a 50-pin high-density ribbon connector under load can cause transient micro-arcing across adjacent logic pins, risking immediate damage to the solid-state components on the connected processing cards and inducing a system-wide communication fault.
