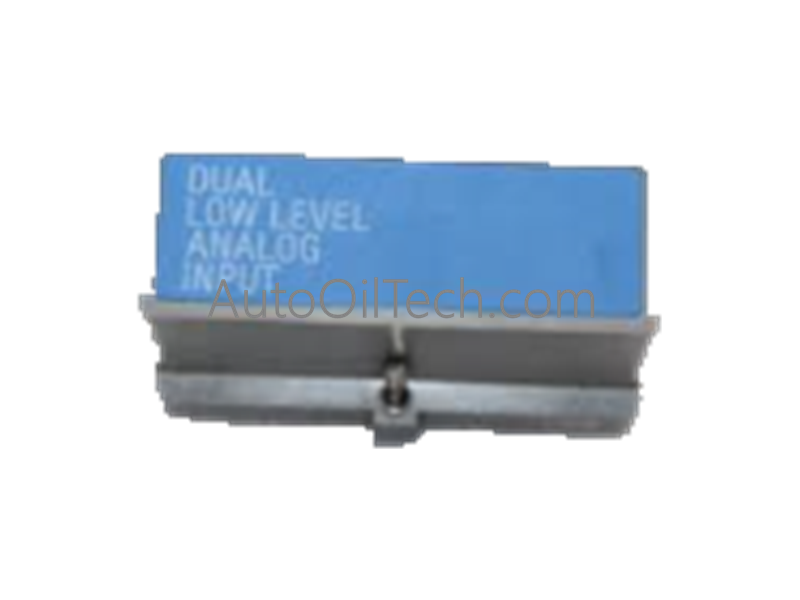

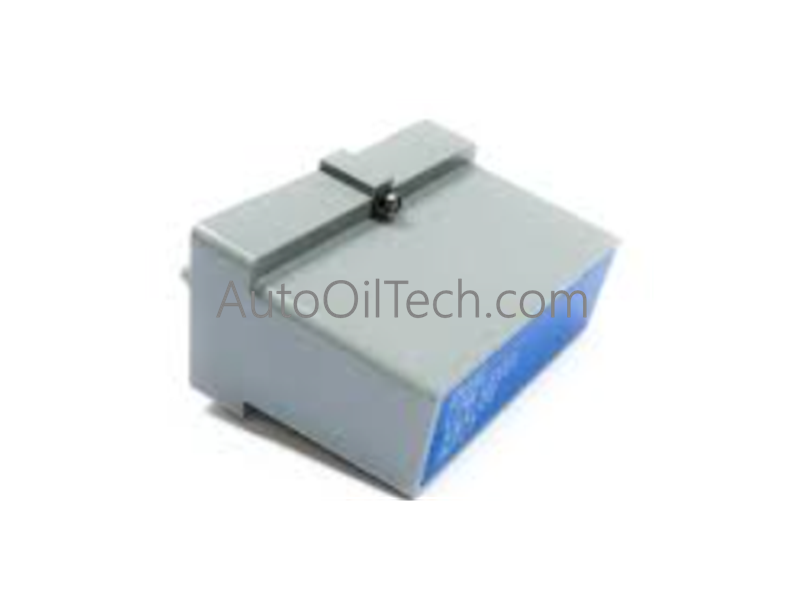

Honeywell 51304085-100 Dual Low-Level Analog Input Module

The Honeywell 51304085-100, also cataloged as the 51304085-100 Dual Low-Level Analog Input Module, operates as a dedicated hardware component for high-resolution signal conditioning, low-level analog-to-digital conversion, and localized channel filtering within Honeywell distributed control system (DCS) architectures. Configured to interface low-amplitude field transmitters with central digital logic processors, the solid-state module provides direct electrical execution to translate raw voltage vectors into stabilized system database parameters.

Hardware Specifications

Process Control & DCS Instrumentation Rails

• 4-20 mA HART Loop Protocol and Channel-to-Channel Isolation While this specific module is optimized for native 0 to 10 VDC low-level voltage inputs rather than active current loops, its physical-layer architecture enforces rigid signal separation across the dual terminal tracks. The internal input circuitry is engineered with robust channel-to-channel electronic isolation barriers, preventing localized common-mode voltage offsets from migrating into neighboring 4-20 mA HART loop networks or causing data skew on the master backplane.
• High-Resolution Signal Conversion and Filtering Pathways The module utilizes an onboard 12-bit analog-to-digital converter (ADC) running at a continuous 100 Hz internal sampling rate per channel. This responsive conversion pathway digitizes the raw 0 to 10 VDC sensor curves with an accuracy limit of $\pm 0.1\%$ of full scale. The internal processing logic subjects the incoming samples to low-pass digital filtering routines natively at the hardware tier, stripping away 50/60 Hz electromagnetic induction hum before updating the DCS controller memory cache.

Frequently Asked Questions

Q: What are the analytical consequences if an unshielded field sensor injects high-frequency common-mode noise into the 0 to 10 VDC input channels?

A: High-frequency noise components exceeding the internal Nyquist limits of the 100 Hz sampling matrix can cause signal aliasing and fluctuating measurement data inside the controller. While the internal filtering suppresses low-level hum, high-amplitude voltage spikes will breach the $\pm 0.1\%$ accuracy threshold, leading to unstable loop calculations and false process variable (PV) deviation alarms.

Q: Can the 51304085-100 module be extracted or hot-swapped while the primary DCS rack file is actively powered?

A: No, this module must not be pulled or inserted while the backplane is energized. Attempting a live hot-swap on this specific card array can generate transient electrostatic arcs across the low-level signal pin layout, risking permanent destruction of the high-density 12-bit ADC components and inducing a temporary data fault across the shared file bus.
