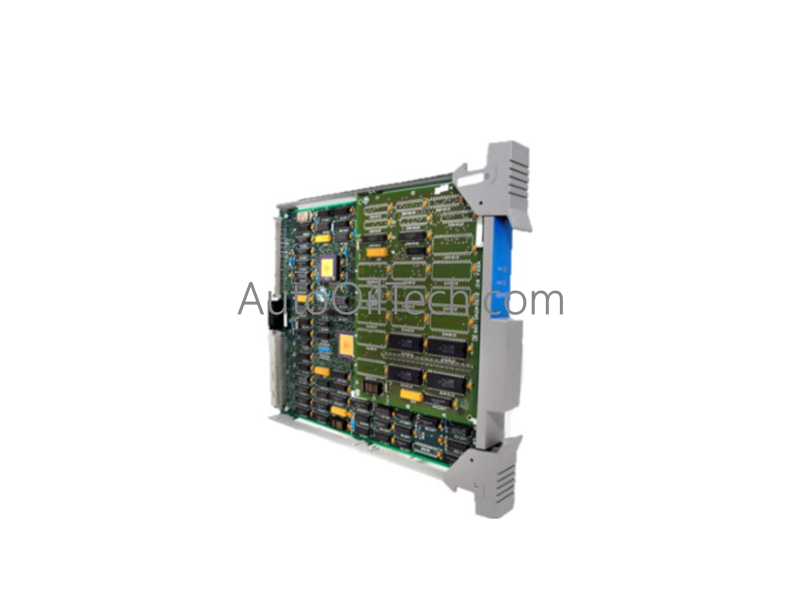

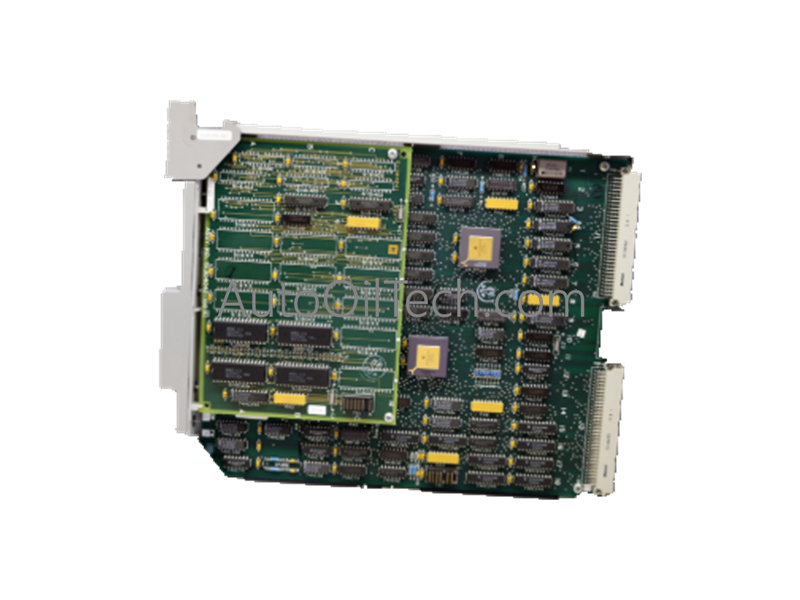

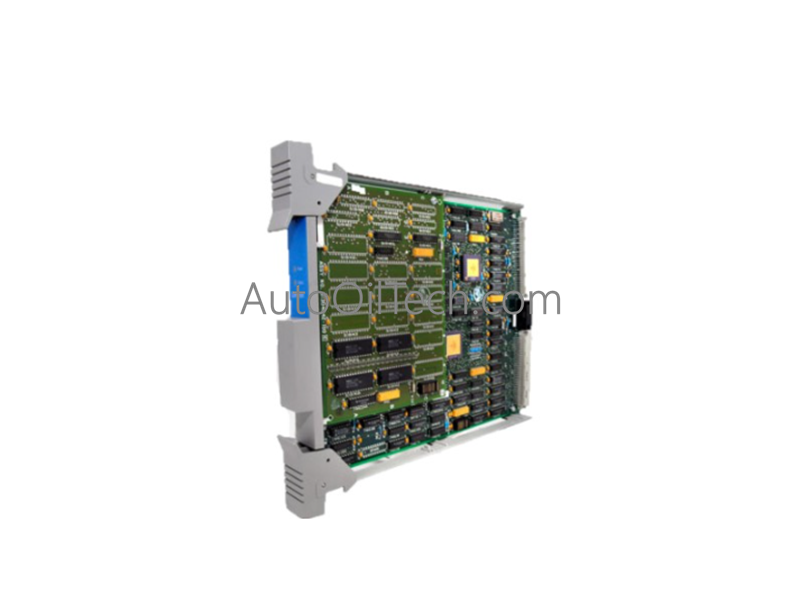

Honeywell 51303979-550 APM I/O Link Control Main Board

The Honeywell 51303979-550, also cataloged as the 51303979-550 APM I/O Link Control Main Board, operates as a dedicated hardware component for centralized data routing, high-speed serialization, and real-time interface tracking within Honeywell Advanced Process Manager (APM) control sections. Configured as a conformal-coated, CE-compliant primary interface board, the solid-state circuit card provides direct physical and data execution to manage the primary communication matrix between the host APM processor and distributed field input/output files.

Hardware Specifications

Process Control & DCS Instrumentation Rails

• 4-20 mA HART Loop Protocol and Channel-to-Channel Isolation While this primary interface board operates on the digital bus tier of the APM controller section rather than serving as a direct field termination block, its execution timing anchors downstream 4-20 mA HART loop networks. By processing centralized database variables with zero cross-talk, the board keeps remote regulatory calculations synchronized and isolated from transient spikes on localized electrical loops.
• Conformal Coating Insulation and Signal Conversion Stability The assembly features a factory-applied conformal coating (CC) layout designed to protect high-density CMOS components from airborne particulate layout, moisture ingress, and corrosive industrial gasses. This specialized insulation barrier preserves circuit track integrity, maintaining stable digital conversion pathways and preventing micro-arcing faults from destabilizing the master data execution clock.

Frequently Asked Questions

Q: What is the primary functional difference specified by the "CC" and "CE" designations on this main board?

A: The "CC" designation denotes that the entire printed circuit assembly is conformal coated, providing a dielectric barrier layer against chemical contaminants and moisture in harsh plant control rooms. The "CE" designation indicates verified structural adherence to European safety and electromagnetic compatibility (EMC) emissions directives for industrial hardware.

Q: Can this 1.45 lbs I/O Link board be safely pulled from the controller slot while the APM is online?

A: No, this module must never be hot-swapped while the APM file is actively energized. Removing the control main board during active operation will instantly break the communication path to all connected field I/O racks, forcing all downstream valves to their fail-safe conditions and inducing a critical process shutdown fault on the master DCS console.
