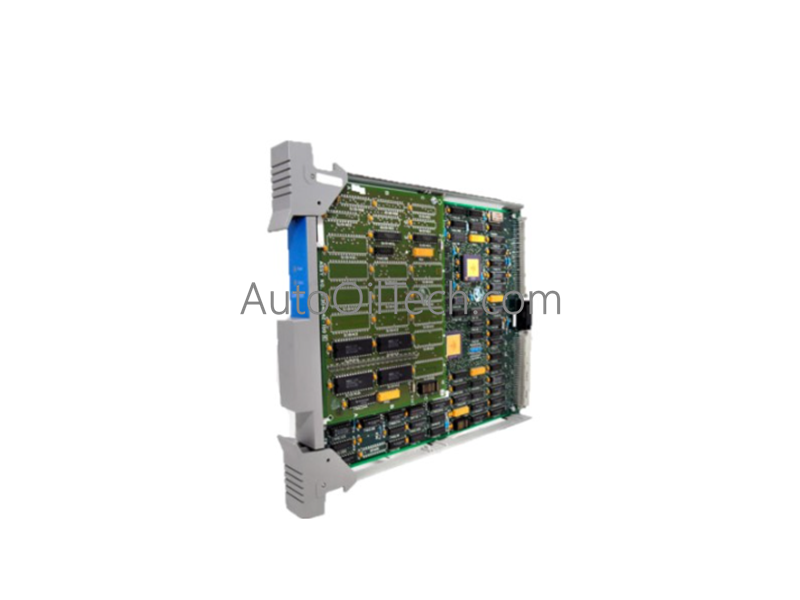

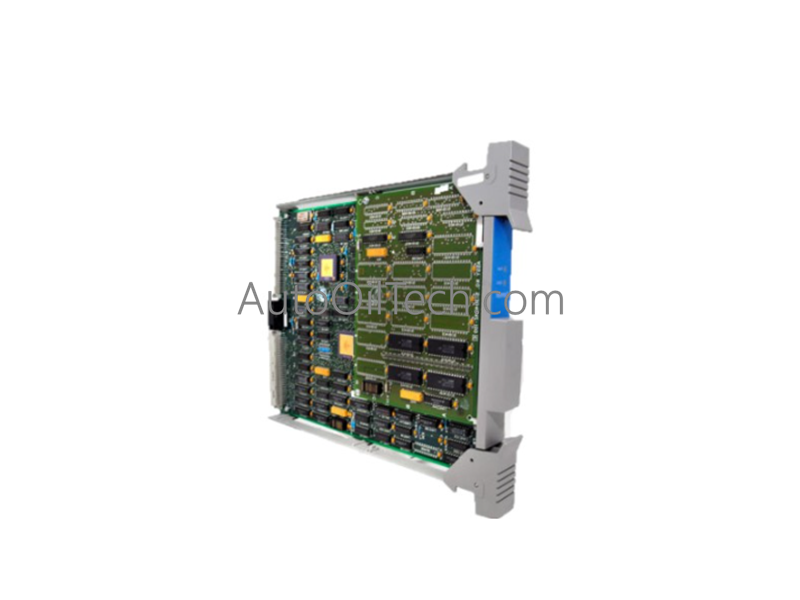

Honeywell 51303979-400 Process Manager I/O Link Interface Module

The Honeywell 51303979-400, also cataloged as the 51303979-400 I/O Link Interface Module, operates as a dedicated hardware component for high-speed serialized data routing, real-time bus arbitration, and peripheral subsystem coordination within Honeywell Advanced Process Manager (APM) or High-Performance Process Manager (HPM) platforms. Configured to bridge the primary control processor stack with distributed field I/O files, the 1.92 lbs module provides direct physical and data execution across the primary I/O link backbone.

Hardware Specifications

Process Control & DCS Instrumentation Rails

• 4-20 mA HART Loop Protocol and Channel-to-Channel Isolation While this specific module functions as a high-level digital I/O link transceiver rather than an analog input/output termination block, its operation establishes the baseline timing frame for downstream 4-20 mA HART loop networks. By routing serialized field data packets across the system backplane with high noise rejection, it keeps the remote regulatory calculations synchronized and isolated from transient spikes on localized electrical loops.
• Deterministic I/O Link and Signal Conversion Pathways The processing core utilizes an integrated network protocol engine to handle real-time signal conversion pathways across the redundant I/O link lines. This architecture ensures high-speed data frame delivery for continuous process variables, passing system diagnostic markers natively at the hardware tier within fixed clock cycles to minimize calculation latency relative to the master Process Manager control section.

Frequently Asked Questions

Q: What is the primary functional task of this interface module within the Process Manager architecture?

A: The 51303979-400 acts as the dedicated communication gateway that links the main processor card rack to the remote I/O files. It handles the high-speed serialization and deserialization of input/output data frames, allowing the main controller to scan hundreds of field instrumentation points deterministically over the I/O Link bus.

Q: Are there hot-swap restrictions when replacing this module inside an active control slot?

A: Yes. Because this interface module hooks directly into the core configuration and serial data bus rows of the controller file, it must not be pulled or inserted while the backplane is energized. Attempting a hot-swap can generate transient voltage arcs across the data pins, risking corruption of the active network tracking state and triggering a hard communication fault on the master node.
