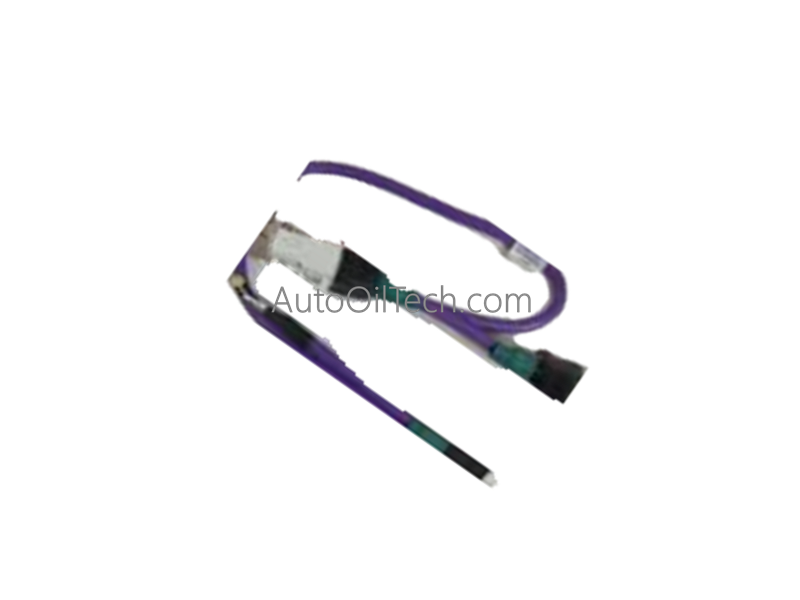

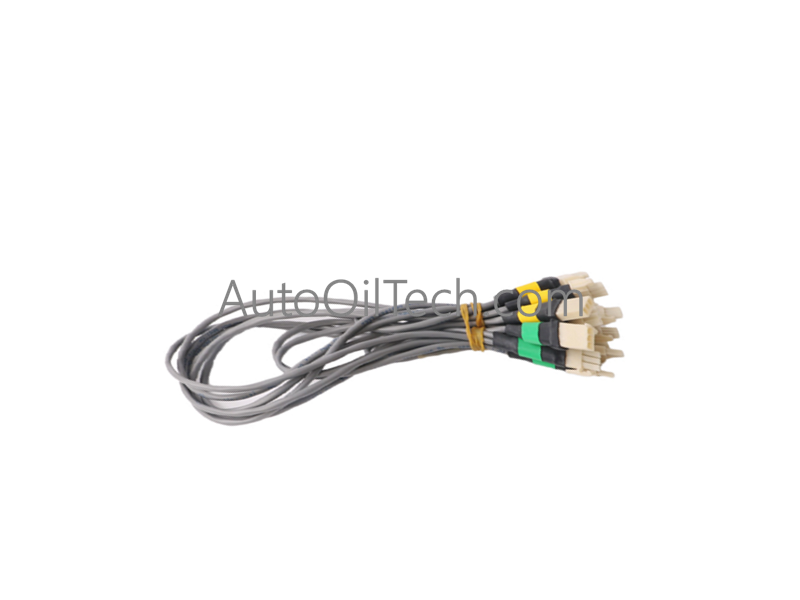

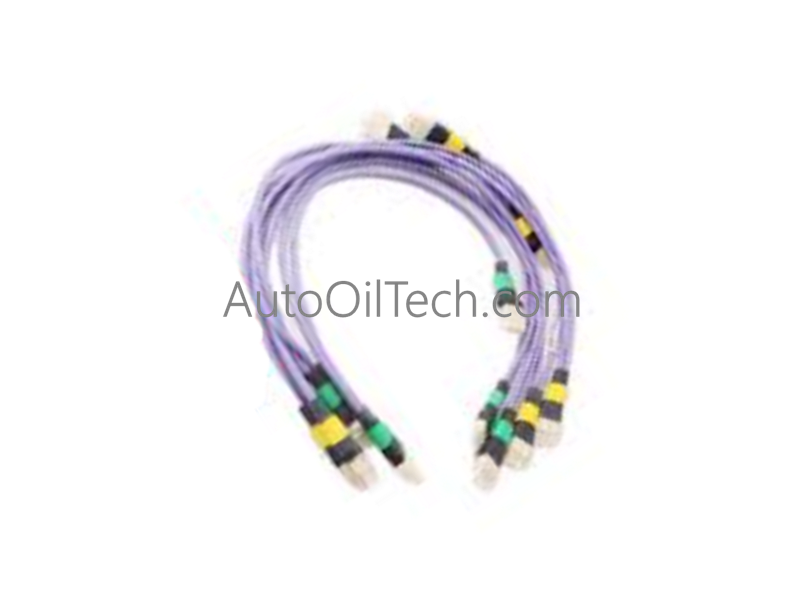

Honeywell 51203192-211 Fiber Optic Cable

The Honeywell 51203192-211, also cataloged as the 51203192-211 Fiber Optic Cable, operates as a dedicated hardware component for high-speed optical signal transmission within Honeywell automation systems. Configured for noise-resistant data exchange, the instrument-grade optical link provides direct physical/electrical execution to route data packets between control modules and remote devices without metallic conduction paths.

Hardware Specifications

Process Control & DCS Instrumentation Rails

• 4-20 mA HART Loop Protocol and Channel-to-Channel Isolation While this assembly is a passive optical wave conduit rather than an active IO module, its structural material enforces high-potential channel-to-channel isolation borders across distributed plant nodes. By mapping data transitions into light pulses, it completely eliminates metallic ground loops, shielding adjacent 4-20 mA HART loop networks from high-voltage transient spikes and common-mode offsets.
• Fiber Optic Signal Conversion and Bus Pathways The optical core interfaces natively with the fiber transceivers on the controller backplane, stabilizing digital data transmission pathways over extended distances. The dielectric medium ensures fast, deterministic propagation speed vectors, allowing high-density remote racks to stream real-time process parameters to the master DCS engine with minimal calculation latency.

Frequently Asked Questions

Q: How does the 249 g fiber optic cable suppress signal distortion in electrically noisy industrial fields?

A: The data is carried entirely by light pulses inside a non-conductive dielectric core rather than electrical currents traveling down copper wires. This structural immunity prevents high-voltage inductive switching noise and radio-frequency interference from penetrating the signal lines or degrading data packet profiles.

Q: What are the functional risks if the cable routing bends sharper than the specified physical tolerances?

A: Bending the fiber beyond its critical macro-bend threshold alters the internal reflection angle of the glass or polymer core, forcing light to escape into the outer cladding layer. This attenuation spike degrades signal strength, increases bit error rates on the DCS bus, and eventually causes total communication link failure.
