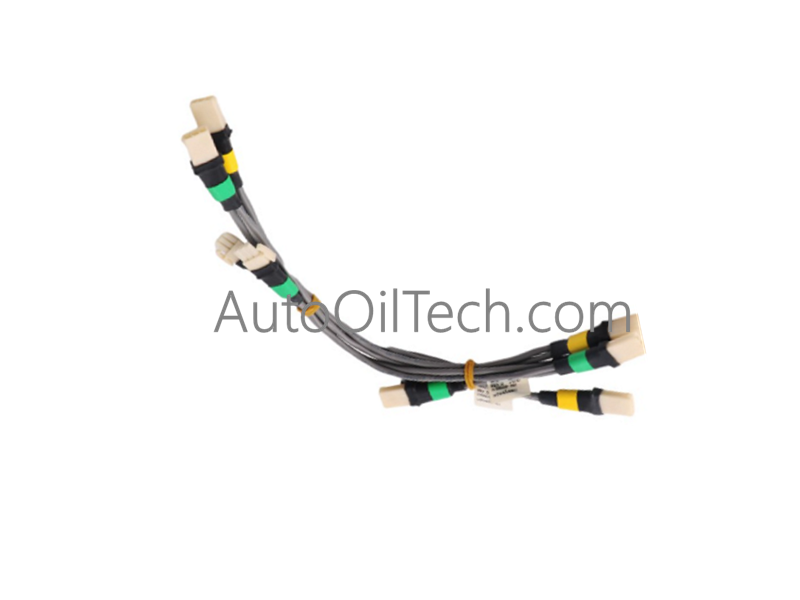

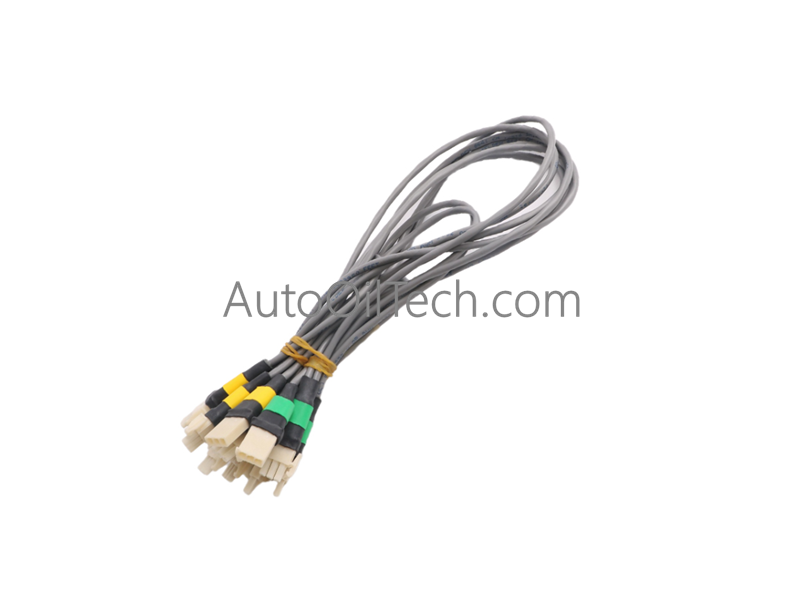

Honeywell 51202329-615 Series C I/O Link Cable

Configured for high-speed deterministic bus extension in Experion PKS distributed control networks, the Honeywell 51202329-615 (51202329-615 Series C I/O Link Cable) provides direct physical/electrical execution. It establishes multi-node data routing and synchronized communications between the Series C controller baseplates and up to three input/output termination assemblies (IOTAs), transferring real-time process variables without packet loss.

Hardware Specifications

Distributed Process Control & DCS Interconnects

• 4-20 mA HART Loop Protocol and Fieldbus Routing Layer The multi-drop copper assembly carries low-voltage control signals to three distinct IOTA hardware nodes concurrently. It acts as a primary physical layer for 4-20 mA HART digital data packets, streaming calibrated process telemetry and device configuration variables directly into the central Series C processing blocks without frame propagation skew.
• Channel-to-Channel Isolation and Noise Suppression Onboard structural separation between the internal twisted conductor pairs minimizes capacitive and inductive coupling across parallel signal channels. This design reduces cross-talk and mitigates the risk of a high-energy transient on one input channel bleeding into adjacent lines, keeping data transmission clear in complex industrial layouts.

Frequently Asked Questions

Q: What does the "3 Drops" designator signify in the physical layout of the 51202329-615 cable?

A: The 3-drop specification indicates that the cable assembly features three built-in branch connectors along its run. This allows a single I/O link port on the Series C controller to daisy-chain and communicate directly with up to three separate IOTA plates, optimizing cabinet space and reducing internal bus clutter.

Q: How does the distinctive violet jacket color aid in plant maintenance and system troubleshooting?

A: Honeywell uses specific jacket color codes to differentiate redundant and non-redundant system busses within control cabinets. The violet jacket explicitly identifies the cable as part of the primary or secondary Series C I/O Link network topology, helping technicians isolate communication buses instantly from 24 VDC power lines or 120 VAC field wiring.
